BarcoVideo WallsSKU Barco UniSee 500+

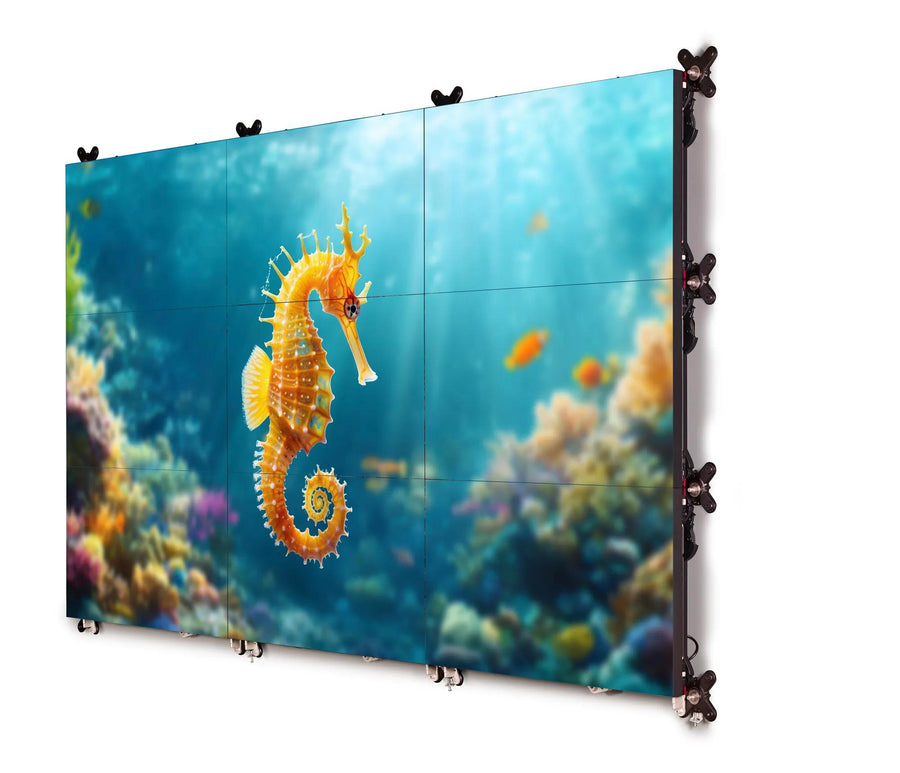

Barco UniSee 500+ 55-inch LCD Video Wall Display
The Barco UniSee 500+ is a 55-inch bezel-less LCD video wall display for control rooms and other 24/7 environments, and the successor to the UniSee 500. It offers 500 cd/m² typical brightness, smart local dimming and Sense X automatic calibration. Procure.ae supplies the Barco UniSee 500+ across the UAE.
The UniSee 500+ uses IPS panel technology with a direct LED backlight, 1920 x 1080 resolution and a 1,200:1 typical contrast ratio. Smart local dimming is enabled, which the manufacturer says gives sharper images and a more uniform display across the wall. Response time is under 8 ms, typically 6 ms. The backlight is rated at 67,500 hours typical, and up to 100,000 hours in Long Lifetime mode. Sense X provides automatic, continuous color and brightness calibration.
The 500+ suits control rooms, security operations, utilities and transport hubs. Mounting uses the standard UniSee Smart mount, up to 10 rows in landscape or 6 in portrait, or InvisiMount, up to 4 columns by 3 rows in landscape or 4 by 2 in portrait. Inputs are two DisplayPort 1.2 and two HDMI 2.0, both listed at 4K at 60 Hz. Compared with the UNI-8002, it is rated at 500 cd/m² against 800 cd/m² and has HDMI 2.0 inputs where the UNI-8002 has HDMI 1.4.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits (typical)
Type
LCD Video Wall Display
- Smart local dimming
- Sense X calibration
- 500 nit typical
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Smart local dimming
Enabled for sharper images and a more uniform display across the wall.
02
Sense X calibration
Automatic, continuous color and brightness calibration.
03
500 nit typical
500 cd/m² typical luminance for 24/7 environments.
04
Bezel-less design
The UniSee Mount aligns panels and keeps them in place over time.
05
InvisiMount option
A sleeker design without visible wall crosses.
06
Backlight life
67,500 hours typical, and up to 100,000 hours in Long Lifetime mode.
07
4K-rated inputs
Two DisplayPort 1.2 and two HDMI 2.0 inputs, both listed at 4K at 60 Hz.
08
Orientation
Landscape and portrait operation are both supported.
Specifications
27 specificationsGeneral
Key FeaturesSmart local dimming, Sense X calibration, bezel-less design, InvisiMount option, landscape and portrait, HDR10 ready (not certified), fanless cooling, 24/7 environments
ModelBarco UniSee 500+
TypeLCD Video Wall Display
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel SizeBezel-less
Brightness500 nits (typical)
Color Gamut70% NTSC (native)
Color Temperature9,700 K (native, typical)
Contrast Ratio1,200:1 (typical)
Lamp Life67,500 hours typical; up to 100,000 hours in Long Lifetime mode
OrientationLandscape and portrait
Panel TechnologyIPS
Resolution1920 x 1080 (Full HD)
Response Time< 8 ms (typical 6 ms)
Screen Size55 inch
Viewing Angle178° / 178°
Performance
Storage Conditions-20 to 60 °C; 10% to 90% RH, non-condensing
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort 1.2 × 2 in, × 1 out (4K at 60 Hz); HDMI 2.0 × 2 in (4K at 60 Hz); Ethernet × 2; USB × 2 (power only)
Power
Power Consumption148 W (internal PSU); 135 W (external PSU), typical
Physical
Dimensions1211.30 x 682.12 x 91.10 mm (LCD, internal PSU)
MountingUniSee Smart mount or InvisiMount
Operating Humidity20% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Weight15.9 kg (LCD net); 21.8 kg (gross)
Compliance
CertificationsCE, SGS, UKCA, PSE, BIS, CEBEC, ICES, EAC, FCC, RCM, RoHS, WEEE, REACH
Downloads
Manufacturer documents for the Barco UniSee 500+ 55-inch LCD Video Wall Display — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the UniSee 500+ built for 24/7 control rooms?
Yes. Barco designed the UniSee 500+ for control rooms, security operations, utilities, transport hubs and other 24/7 environments. It is fanless and rated for 0 to 40 °C operation with 20% to 80% humidity, non-condensing.
What is the difference between the UniSee 500+ and UniSee 500?
The manufacturer describes the UniSee 500+ as the successor to the UniSee 500. Its listed features include smart local dimming, HDR10-ready processing (not certified), 500 cd/m² typical brightness and Sense X calibration.
How many panels can each mount support?
The standard UniSee Smart mount supports up to 10 rows in landscape or 6 in portrait. InvisiMount supports up to 4 columns by 3 rows in landscape, or 4 columns by 2 rows in portrait.
Does the UniSee 500+ support 4K?
No, the panel is Full HD (1920 x 1080). The 500+ has two HDMI 2.0 and two DisplayPort 1.2 inputs, which are rated for 4K at 60 Hz. Check the source output against the Full HD panel resolution when planning the wall.
Is the UniSee 500+ brighter than the UNI-8002?
No. The UniSee 500+ is rated at 500 cd/m² typical, against 800 cd/m² typical for the UNI-8002. The 500+ has smart local dimming and HDMI 2.0 inputs, while the UNI-8002 has higher brightness and HDMI 1.4 inputs.
