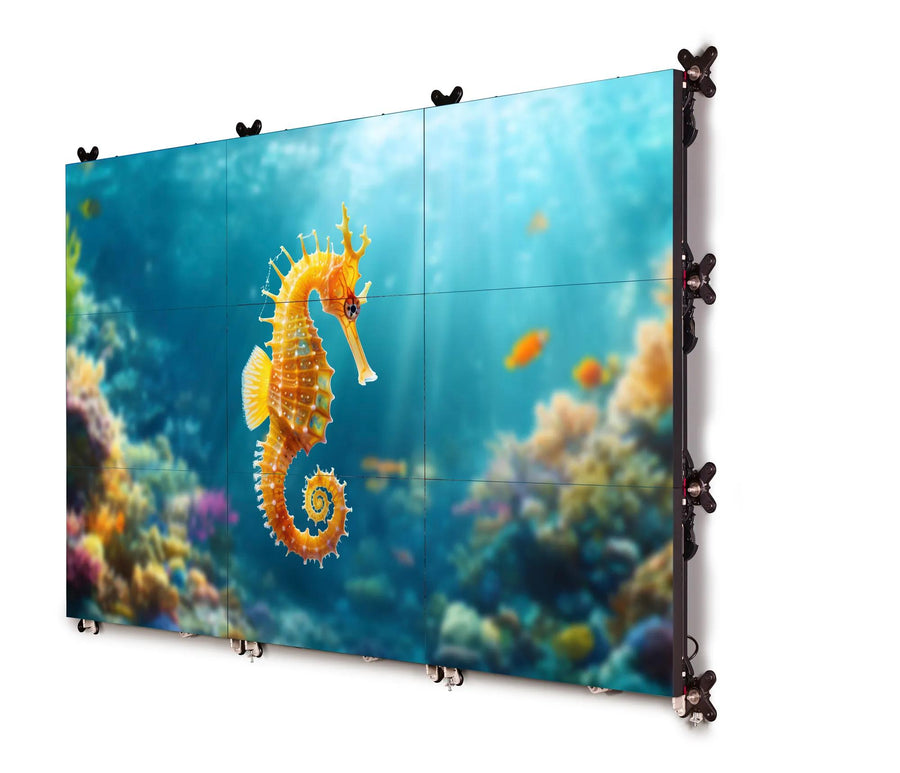

The Barco UniSee 500+ is a 55-inch bezel-less LCD video wall display for control rooms and other 24/7 environments, and the successor to the UniSee 500. It offers 500 cd/m² typical brightness, smart local dimming and Sense X automatic calibration. Procure.ae supplies the Barco UniSee 500+ across the UAE.
The UniSee 500+ uses IPS panel technology with a direct LED backlight, 1920 x 1080 resolution and a 1,200:1 typical contrast ratio. Smart local dimming is enabled, which the manufacturer says gives sharper images and a more uniform display across the wall. Response time is under 8 ms, typically 6 ms. The backlight is rated at 67,500 hours typical, and up to 100,000 hours in Long Lifetime mode. Sense X provides automatic, continuous color and brightness calibration.
The 500+ suits control rooms, security operations, utilities and transport hubs. Mounting uses the standard UniSee Smart mount, up to 10 rows in landscape or 6 in portrait, or InvisiMount, up to 4 columns by 3 rows in landscape or 4 by 2 in portrait. Inputs are two DisplayPort 1.2 and two HDMI 2.0, both listed at 4K at 60 Hz. Compared with the UNI-8002, it is rated at 500 cd/m² against 800 cd/m² and has HDMI 2.0 inputs where the UNI-8002 has HDMI 1.4.
| Key Features | Smart local dimming, Sense X calibration, bezel-less design, InvisiMount option, landscape and portrait, HDR10 ready (not certified), fanless cooling, 24/7 environments |
| Model | Barco UniSee 500+ |
| Type | LCD Video Wall Display |
| Aspect Ratio | 16:9 |
| Backlight | Direct LED |
| Bezel Size | Bezel-less |
| Brightness | 500 nits (typical) |
| Color Gamut | 70% NTSC (native) |
| Color Temperature | 9,700 K (native, typical) |
| Contrast Ratio | 1,200:1 (typical) |
| Lamp Life | 67,500 hours typical; up to 100,000 hours in Long Lifetime mode |
| Orientation | Landscape and portrait |
| Panel Technology | IPS |
| Resolution | 1920 x 1080 (Full HD) |
| Response Time | < 8 ms (typical 6 ms) |
| Screen Size | 55 inch |
| Viewing Angle | 178° / 178° |
| Storage Conditions | -20 to 60 °C; 10% to 90% RH, non-condensing |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | DisplayPort 1.2 × 2 in, × 1 out (4K at 60 Hz); HDMI 2.0 × 2 in (4K at 60 Hz); Ethernet × 2; USB × 2 (power only) |
| Power Consumption | 148 W (internal PSU); 135 W (external PSU), typical |
| Dimensions | 1211.30 x 682.12 x 91.10 mm (LCD, internal PSU) |
| Mounting | UniSee Smart mount or InvisiMount |
| Operating Humidity | 20% to 80% RH, non-condensing |
| Operating Temperature | 0 to 40 °C |
| Weight | 15.9 kg (LCD net); 21.8 kg (gross) |
| Certifications | CE, SGS, UKCA, PSE, BIS, CEBEC, ICES, EAC, FCC, RCM, RoHS, WEEE, REACH |
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
