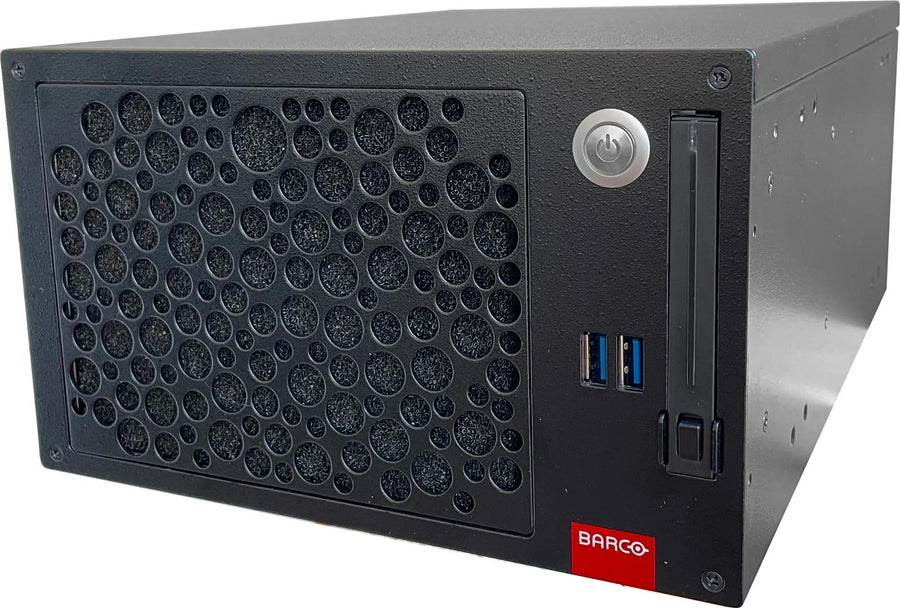

Barco TransForm NSD-220 Compact Video Wall Controller
The Barco TransForm NSD-220 is a compact 3U video wall controller for control rooms. It drives up to 4 4K-UHD displays or 16 HD displays, runs Windows applications on an Intel Core i5-9500E processor, and works with Barco CMS. Procure.ae supplies the TransForm NSD-220 in the UAE.
The NSD-220 captures networked sources from anywhere and displays them combined in high resolution on a video wall of up to 16 HD displays. It supports up to 4 4K-UHD displays. The manufacturer states it is a fully qualified platform for Barco CMS and allows display content, including 3D-accelerated content, to be organised on the wall. It uses an Intel Core i5-9500E 6-core processor, 16 GB RAM and a 512 GB SSD.
The NSD-220 can be used as a standalone video wall controller under Barco CMS, or as a display node in a networked TransForm N solution. It runs Windows applications locally, so it suits spaces that combine networked video with local Windows software. The compact 3U design measures 131.5 x 220 x 305 mm and weighs 5.8 kg, which suits racks where space is limited.
Type
Video Wall Controller
Weight
5.8 kg (7.6 kg with packaging)
- Compact 3U design
- 4K-UHD output
- Barco CMS platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Compact 3U design
131.5 x 220 x 305 mm, 5.8 kg, 3U half-width rackmount.
02
4K-UHD output
Up to 4 4K-UHD displays, or up to 16 HD displays with loop-through.
03
Barco CMS platform
A fully qualified platform for Barco CMS control room software.
04
3D-accelerated content
Quadro-series graphics card with 3D-accelerated display content.
05
Windows applications
Runs Windows 10 64-bit IoT Enterprise with local applications.
06
Networked operation
Works standalone or as part of a TransForm N networked solution.
Specifications
19 specificationsGeneral
ApplicationBarco CMS control room management, standalone or networked TransForm N
Key FeaturesCompact 3U design, 4K-UHD output, 3D-accelerated display content, Windows applications, standalone or networked operation, SSD storage
ModelTransForm NSD-220
TypeVideo Wall Controller
Performance
Graphics4-channel professional NVIDIA Quadro-series graphics card
Operating SystemWindows 10 64-bit IoT Enterprise
ProcessorIntel Core i5-9500E 6-core 3.0 GHz (4.2 GHz max. turbo)
RAM16 GB
Storage512 GB SSD
Connectivity
Ethernet2 x 1 Gb/s LAN
Input Voltage100–240 V, 8–4 A, 50/60 Hz
OutputsUp to 4 4K-UHD displays, or up to 16 HD displays with Barco loop-through
Power
Power Consumption230 W (max)
Physical
Dimensions131.5 x 220 x 305 mm
Form Factor3U half 19-inch rackmount
Operating HumidityMax. 80% (non-condensing)
Operating Temperature0 to 40 °C
Weight5.8 kg (7.6 kg with packaging)
Compliance
CertificationsCE, UKCA, CB/UL 60950/62368-1, ICES, CCC, FCC Class A
Downloads
Manufacturer documents for the Barco TransForm NSD-220 Compact Video Wall Controller — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Barco TransForm NSD-220 used for?
The NSD-220 is a compact video wall controller for visualising networked video sources next to Windows-based local applications. It can display them combined in high resolution on a video wall of up to 16 HD displays.
How many displays does the NSD-220 support?
The manufacturer states up to 4 4K-UHD displays, or up to 16 HD displays with Barco loop-through. The graphics card is a 4-channel NVIDIA Quadro-series card, and Barco loop-through supports the HD displays.
Can the NSD-220 run Barco CMS?
Yes. The manufacturer states the NSD-220 is a fully qualified platform for Barco's CMS control room management software, used standalone or as a node in a TransForm N networked solution.
Does the NSD-220 fit a standard rack?
Yes. It is a 3U half-width 19-inch rackmount unit measuring 131.5 x 220 x 305 mm and weighing 5.8 kg, with 100–240 V, 50/60 Hz power and a 230 W maximum consumption.
