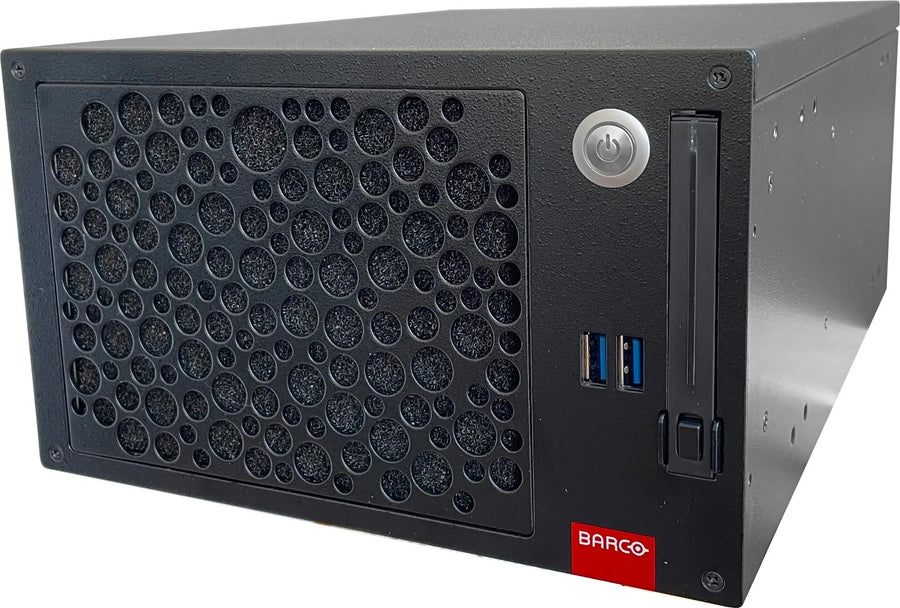

Barco TransForm NSD-220 Compact Video Wall Controller
The Barco TransForm NSD-220 is a compact 3U video wall controller for control rooms. It drives up to 4 4K-UHD displays or 16 HD displays, runs Windows applications on an Intel Core i5-9500E processor, and works with Barco CMS. Procure.ae supplies the TransForm NSD-220 in the UAE.
The NSD-220 captures networked sources from anywhere and displays them combined in high resolution on a video wall of up to 16 HD displays. It supports up to 4 4K-UHD displays. The manufacturer states it is a fully qualified platform for Barco CMS and allows display content, including 3D-accelerated content, to be organised on the wall. It uses an Intel Core i5-9500E 6-core processor, 16 GB RAM and a 512 GB SSD.
The NSD-220 can be used as a standalone video wall controller under Barco CMS, or as a display node in a networked TransForm N solution. It runs Windows applications locally, so it suits spaces that combine networked video with local Windows software. The compact 3U design measures 131.5 x 220 x 305 mm and weighs 5.8 kg, which suits racks where space is limited.
Key features
Specifications
| Application | Barco CMS control room management, standalone or networked TransForm N |
| Key Features | Compact 3U design, 4K-UHD output, 3D-accelerated display content, Windows applications, standalone or networked operation, SSD storage |
| Model | TransForm NSD-220 |
| Type | Video Wall Controller |
| Graphics | 4-channel professional NVIDIA Quadro-series graphics card |
| Operating System | Windows 10 64-bit IoT Enterprise |
| Processor | Intel Core i5-9500E 6-core 3.0 GHz (4.2 GHz max. turbo) |
| RAM | 16 GB |
| Storage | 512 GB SSD |
| Ethernet | 2 x 1 Gb/s LAN |
| Input Voltage | 100–240 V, 8–4 A, 50/60 Hz |
| Outputs | Up to 4 4K-UHD displays, or up to 16 HD displays with Barco loop-through |
| Power Consumption | 230 W (max) |
| Dimensions | 131.5 x 220 x 305 mm |
| Form Factor | 3U half 19-inch rackmount |
| Operating Humidity | Max. 80% (non-condensing) |
| Operating Temperature | 0 to 40 °C |
| Weight | 5.8 kg (7.6 kg with packaging) |
| Certifications | CE, UKCA, CB/UL 60950/62368-1, ICES, CCC, FCC Class A |
