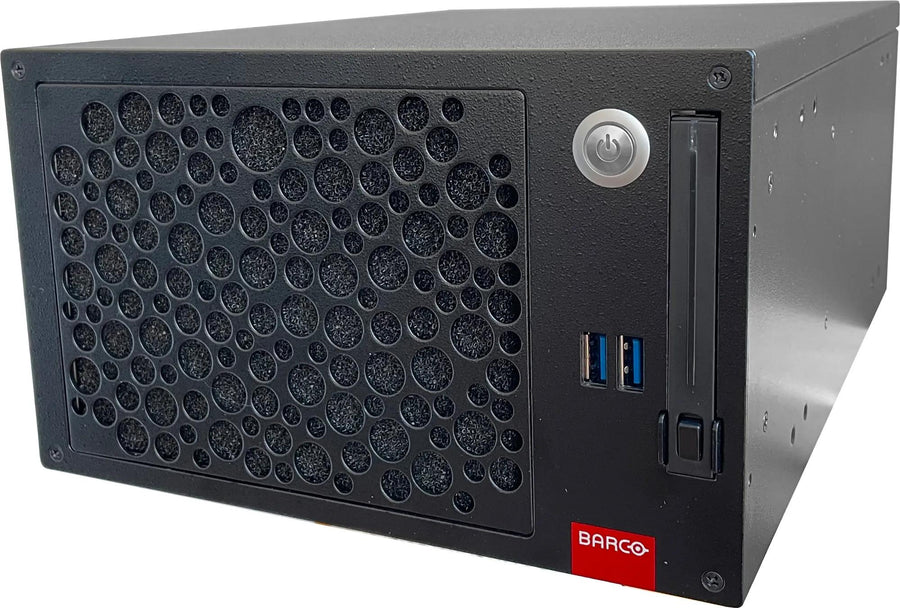

Barco TransForm N Networked Display Node – TransForm NDN-220 Pro
The Barco TransForm NDN-220 Pro is a PC-based networked display node for video walls that need advanced synchronization in TransForm N systems. It drives four DisplayPort 1.2 outputs, each up to 4K-UHD, and uses a dedicated sync cable for full frame-lock across up to 30 nodes. Procure.ae supplies the NDN-220 Pro across the UAE.
The NDN-220 Pro has four DisplayPort 1.2 outputs, each supporting up to 4K-UHD resolution. It uses the same Intel Core i5-9500E six-core processor, 8 GB of memory, 128 GB SSD and Quadro-series graphics card as the LITE model. It decodes H.264, MPEG-2/4, V2D, H.263, VNC and ProServer streams, with an extensive list of supported codecs and formats. The manufacturer states that one node can drive up to sixteen HD displays.
The PRO model is the option for video walls with advanced synchronization requirements. A dedicated sync-cable based full frame-lock links up to 30 nodes, and the CMS inside a TransForm N system combines them into a wall cluster that shows one composed picture. Power consumption is 270 W maximum. The unit weighs 6.1 kg (7.9 kg with packaging) and fits the same 3U half-width rack housing as the LITE.
Resolution
Up to 4K-UHD per output
Type
Networked Display Node
Weight
6.1 kg (7.9 kg with packaging)
- Four DisplayPort outputs
- Full frame-lock sync
- Codec support
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Four DisplayPort outputs
Four DisplayPort 1.2 outputs, each up to 4K-UHD resolution.
02
Full frame-lock sync
Dedicated sync-cable synchronization across up to 30 nodes.
03
Codec support
An extensive list of supported codecs and formats.
04
Wall scale
Up to sixteen HD displays per node, per the manufacturer.
05
Processing platform
Intel Core i5-9500E six-core, 8 GB memory, 128 GB SSD.
06
Graphics
Professional NVIDIA Quadro-series graphics card.
07
Redundant LAN
Two 1Gb/s LAN ports.
08
Rack housing
3U half-width 19-inch rackmount, 6.1 kg.
Specifications
20 specificationsGeneral
Key FeaturesFour 4K-UHD DisplayPort 1.2 outputs, Frame-lock sync up to 30 nodes, Extensive codec support, Up to 16 HD displays per node, 8 GB memory, 128 GB SSD, 3U rack housing
ModelTransForm NDN-220 Pro
TypeNetworked Display Node
Display
ResolutionUp to 4K-UHD per output
Performance
GraphicsProfessional NVIDIA Quadro-series graphics card
Memory Type8 GB
ProcessorIntel Core i5-9500E 6-core, 3.0 GHz (4.2 GHz max turbo)
RAM8 GB
Storage128 GB SSD
Connectivity
Ethernet2 × 1Gb/s LAN
PortsDisplayPort 1.2 out × 4; DVI-SL out × 4 (via included adapters); RJ45 1Gb LAN × 2
ProtocolsH.264, MPEG-2/4, V2D, H.263, VNC, ProServer
Power
Power Consumption270 W (maximum)
Power Source100–240 V AC, 50/60 Hz
Physical
Dimensions220 x 131.5 x 305 mm (W x H x D)
Form Factor3U half-width 19-inch rackmount
Operating HumidityUp to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Weight6.1 kg (7.9 kg with packaging)
Compliance
CertificationsCE, UKCA, CB/UL 60950/62368-1, ICES, CCC, FCC Class A
Downloads
Manufacturer documents for the Barco TransForm N Networked Display Node – TransForm NDN-220 Pro — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How does the Barco NDN-220 Pro differ from the LITE?
The PRO adds dedicated sync-cable full frame-lock synchronization across up to 30 nodes, where the LITE uses network-based synchronization. The PRO also draws up to 270 W and weighs 6.1 kg, against 5.8 kg for the LITE.
Is the NDN-220 Pro suited to synchronized video walls?
Yes. The manufacturer positions the PRO for video walls with advanced synchronization requirements. Nodes are linked by a dedicated sync cable and managed by the CMS inside a TransForm N system.
What video inputs and codecs does the NDN-220 Pro decode?
It decodes H.264, MPEG-2/4, V2D, H.263, VNC and ProServer streams, with an extensive list of supported codecs and formats. Universal IP video streaming decoding is part of its feature set.
What power and operating conditions does the NDN-220 Pro need?
It runs from 100 to 240 V AC, 50/60 Hz, and draws up to 270 W. It operates from 0 to 40 °C with humidity up to 80% RH, non-condensing.
