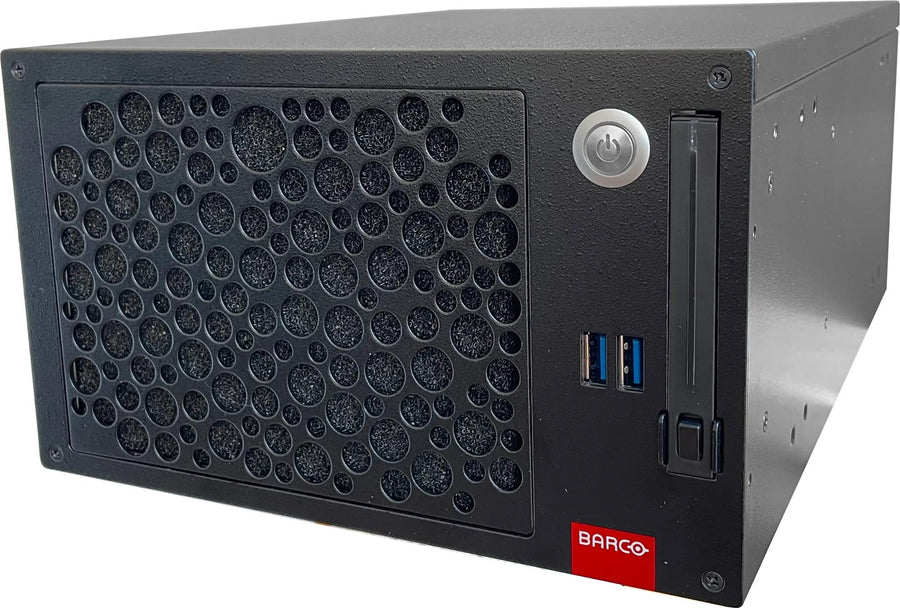

Barco TransForm N Networked Display Node – TransForm NDN-220 Pro
The Barco TransForm NDN-220 Pro is a PC-based networked display node for video walls that need advanced synchronization in TransForm N systems. It drives four DisplayPort 1.2 outputs, each up to 4K-UHD, and uses a dedicated sync cable for full frame-lock across up to 30 nodes. Procure.ae supplies the NDN-220 Pro across the UAE.
The NDN-220 Pro has four DisplayPort 1.2 outputs, each supporting up to 4K-UHD resolution. It uses the same Intel Core i5-9500E six-core processor, 8 GB of memory, 128 GB SSD and Quadro-series graphics card as the LITE model. It decodes H.264, MPEG-2/4, V2D, H.263, VNC and ProServer streams, with an extensive list of supported codecs and formats. The manufacturer states that one node can drive up to sixteen HD displays.
The PRO model is the option for video walls with advanced synchronization requirements. A dedicated sync-cable based full frame-lock links up to 30 nodes, and the CMS inside a TransForm N system combines them into a wall cluster that shows one composed picture. Power consumption is 270 W maximum. The unit weighs 6.1 kg (7.9 kg with packaging) and fits the same 3U half-width rack housing as the LITE.
Key features
Specifications
| Key Features | Four 4K-UHD DisplayPort 1.2 outputs, Frame-lock sync up to 30 nodes, Extensive codec support, Up to 16 HD displays per node, 8 GB memory, 128 GB SSD, 3U rack housing |
| Model | TransForm NDN-220 Pro |
| Type | Networked Display Node |
| Resolution | Up to 4K-UHD per output |
| Graphics | Professional NVIDIA Quadro-series graphics card |
| Memory Type | 8 GB |
| Processor | Intel Core i5-9500E 6-core, 3.0 GHz (4.2 GHz max turbo) |
| RAM | 8 GB |
| Storage | 128 GB SSD |
| Ethernet | 2 × 1Gb/s LAN |
| Ports | DisplayPort 1.2 out × 4; DVI-SL out × 4 (via included adapters); RJ45 1Gb LAN × 2 |
| Protocols | H.264, MPEG-2/4, V2D, H.263, VNC, ProServer |
| Power Consumption | 270 W (maximum) |
| Power Source | 100–240 V AC, 50/60 Hz |
| Dimensions | 220 x 131.5 x 305 mm (W x H x D) |
| Form Factor | 3U half-width 19-inch rackmount |
| Operating Humidity | Up to 80% RH, non-condensing |
| Operating Temperature | 0 to 40 °C |
| Weight | 6.1 kg (7.9 kg with packaging) |
| Certifications | CE, UKCA, CB/UL 60950/62368-1, ICES, CCC, FCC Class A |
