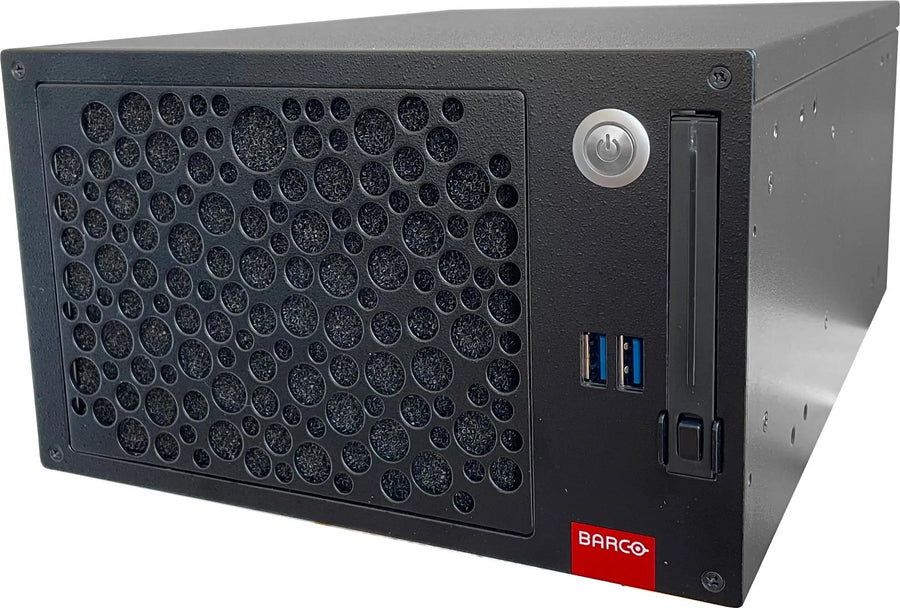

Barco TransForm N Networked Display Node – TransForm NDN-220 LITE
The Barco TransForm NDN-220 LITE is a PC-based networked display node for video walls in TransForm N systems. It drives four DisplayPort 1.2 outputs, each up to 4K-UHD, decodes IP video streams and synchronizes nodes over the network. Procure.ae supplies the NDN-220 LITE across the UAE.
The NDN-220 LITE has four DisplayPort 1.2 outputs, each supporting up to 4K-UHD resolution. It runs an Intel Core i5-9500E six-core processor at 3.0 GHz (4.2 GHz maximum turbo), with 8 GB of memory, a 128 GB SSD and a professional NVIDIA Quadro-series graphics card. It decodes H.264, MPEG-2/4, V2D, H.263, VNC and ProServer streams, and the manufacturer states that one node can drive up to sixteen HD displays.
The LITE model uses network-based synchronization between nodes, which suits most video wall needs. Managed by the CMS inside a TransForm N system, several NDN-220 LITE nodes can be combined in a wall cluster that shows one synchronized picture. For more advanced synchronization requirements, the NDN-220 Pro is the alternative. The unit fits a 3U half-width 19-inch rack housing, weighs 5.8 kg and operates from 0 to 40 °C.
Resolution
Up to 4K-UHD per output
Type
Networked Display Node
Weight
5.8 kg (7.6 kg with packaging)
- Four DisplayPort outputs
- IP video decoding
- Wall scale
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Four DisplayPort outputs
Four DisplayPort 1.2 outputs, each up to 4K-UHD resolution.
02
IP video decoding
Decodes H.264, MPEG-2/4, V2D, H.263, VNC and ProServer streams.
03
Wall scale
Up to sixteen HD displays per node, per the manufacturer.
04
Network synchronization
Network-based sync between nodes for most video wall needs.
05
Processing platform
Intel Core i5-9500E six-core, 3.0 GHz, 8 GB memory, 128 GB SSD.
06
Graphics
Professional NVIDIA Quadro-series graphics card.
07
Redundant LAN
Two 1Gb/s LAN ports.
08
Rack housing
3U half-width 19-inch rackmount, 5.8 kg.
Specifications
20 specificationsGeneral
Key FeaturesFour 4K-UHD DisplayPort 1.2 outputs, Universal IP video decoding, Network-based synchronization, Up to 16 HD displays per node, 8 GB memory, 128 GB SSD, TransForm N system compatible, 3U rack housing
ModelTransForm NDN-220 LITE
TypeNetworked Display Node
Display
ResolutionUp to 4K-UHD per output
Performance
GraphicsProfessional NVIDIA Quadro-series graphics card
Memory Type8 GB
ProcessorIntel Core i5-9500E 6-core, 3.0 GHz (4.2 GHz max turbo)
RAM8 GB
Storage128 GB SSD
Connectivity
Ethernet2 × 1Gb/s LAN
PortsDisplayPort 1.2 out × 4; DVI-SL out × 4 (via included adapters); RJ45 1Gb LAN × 2
ProtocolsH.264, MPEG-2/4, V2D, H.263, VNC, ProServer
Power
Power Consumption230 W (maximum)
Power Source100–240 V AC
Physical
Dimensions220 x 131.5 x 305 mm (W x H x D)
Form Factor3U half-width 19-inch rackmount
Operating HumidityUp to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Weight5.8 kg (7.6 kg with packaging)
Compliance
CertificationsCE, UKCA, CB/UL 60950/62368-1, ICES, CCC, FCC Class A
Downloads
Manufacturer documents for the Barco TransForm N Networked Display Node – TransForm NDN-220 LITE — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Barco TransForm NDN-220 LITE?
It is a PC-based networked display node for a TransForm N system. It decodes IP video streams and drives up to four DisplayPort 1.2 outputs, each up to 4K-UHD, for video wall displays.
How many displays can one NDN-220 LITE drive?
The manufacturer states that one node can drive up to sixteen HD displays. It has four DisplayPort 1.2 outputs, each supporting up to 4K-UHD, and four DVI-SL outputs through included adapters.
Can several NDN-220 LITE units form one video wall?
Yes. Managed by the CMS inside a TransForm N system, several LITE nodes can be combined in a wall cluster to show one synchronized picture. The LITE uses network-based synchronization, which suits most video wall needs.
Which video formats does the NDN-220 LITE decode?
It decodes H.264, MPEG-2/4, V2D, H.263, VNC and ProServer streams. The processor is an Intel Core i5-9500E six-core at 3.0 GHz, with 8 GB of memory and a 128 GB SSD.
Does the NDN-220 LITE support the PRO model's frame-lock sync?
No. The LITE uses network-based synchronization, which the manufacturer describes as suited to most video wall needs. For more advanced synchronization requirements, the manufacturer offers the NDN-220 Pro, which uses a dedicated sync cable for full frame-lock across up to 30 nodes.
