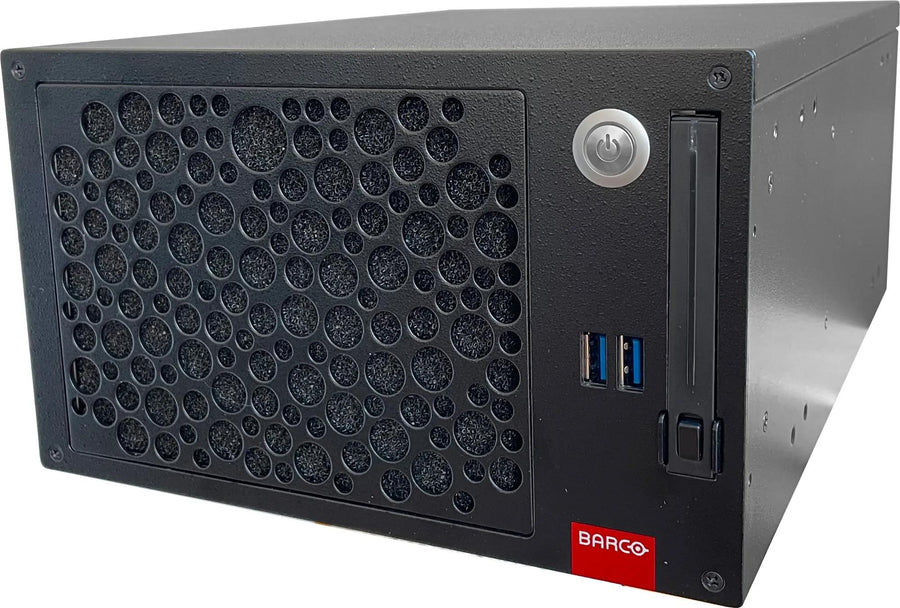

Barco TransForm N Networked Display Node – TransForm NDN-220 LITE

The Barco TransForm NDN-220 LITE is a PC-based networked display node for video walls in TransForm N systems. It drives four DisplayPort 1.2 outputs, each up to 4K-UHD, decodes IP video streams and synchronizes nodes over the network. Procure.ae supplies the NDN-220 LITE across the UAE.

The NDN-220 LITE has four DisplayPort 1.2 outputs, each supporting up to 4K-UHD resolution. It runs an Intel Core i5-9500E six-core processor at 3.0 GHz (4.2 GHz maximum turbo), with 8 GB of memory, a 128 GB SSD and a professional NVIDIA Quadro-series graphics card. It decodes H.264, MPEG-2/4, V2D, H.263, VNC and ProServer streams, and the manufacturer states that one node can drive up to sixteen HD displays.

The LITE model uses network-based synchronization between nodes, which suits most video wall needs. Managed by the CMS inside a TransForm N system, several NDN-220 LITE nodes can be combined in a wall cluster that shows one synchronized picture. For more advanced synchronization requirements, the NDN-220 Pro is the alternative. The unit fits a 3U half-width 19-inch rack housing, weighs 5.8 kg and operates from 0 to 40 °C.

Resolution

Up to 4K-UHD per output

Type

Networked Display Node

Weight

5.8 kg (7.6 kg with packaging)

Key features

Four DisplayPort outputs

Four DisplayPort 1.2 outputs, each up to 4K-UHD resolution.

IP video decoding

Decodes H.264, MPEG-2/4, V2D, H.263, VNC and ProServer streams.

Wall scale

Up to sixteen HD displays per node, per the manufacturer.

Network synchronization

Network-based sync between nodes for most video wall needs.

Processing platform

Intel Core i5-9500E six-core, 3.0 GHz, 8 GB memory, 128 GB SSD.

Graphics

Professional NVIDIA Quadro-series graphics card.

Redundant LAN

Two 1Gb/s LAN ports.

Rack housing

3U half-width 19-inch rackmount, 5.8 kg.

Specifications

General
Key Features	Four 4K-UHD DisplayPort 1.2 outputs, Universal IP video decoding, Network-based synchronization, Up to 16 HD displays per node, 8 GB memory, 128 GB SSD, TransForm N system compatible, 3U rack housing
Model	TransForm NDN-220 LITE
Type	Networked Display Node

Display
Resolution	Up to 4K-UHD per output

Performance
Graphics	Professional NVIDIA Quadro-series graphics card
Memory Type	8 GB
Processor	Intel Core i5-9500E 6-core, 3.0 GHz (4.2 GHz max turbo)
RAM	8 GB
Storage	128 GB SSD

Connectivity
Ethernet	2 × 1Gb/s LAN
Ports	DisplayPort 1.2 out × 4; DVI-SL out × 4 (via included adapters); RJ45 1Gb LAN × 2
Protocols	H.264, MPEG-2/4, V2D, H.263, VNC, ProServer

Power
Power Consumption	230 W (maximum)
Power Source	100–240 V AC

Physical
Dimensions	220 x 131.5 x 305 mm (W x H x D)
Form Factor	3U half-width 19-inch rackmount
Operating Humidity	Up to 80% RH, non-condensing
Operating Temperature	0 to 40 °C
Weight	5.8 kg (7.6 kg with packaging)

Compliance
Certifications	CE, UKCA, CB/UL 60950/62368-1, ICES, CCC, FCC Class A
