BarcoVideo WallsSKU NAN-110

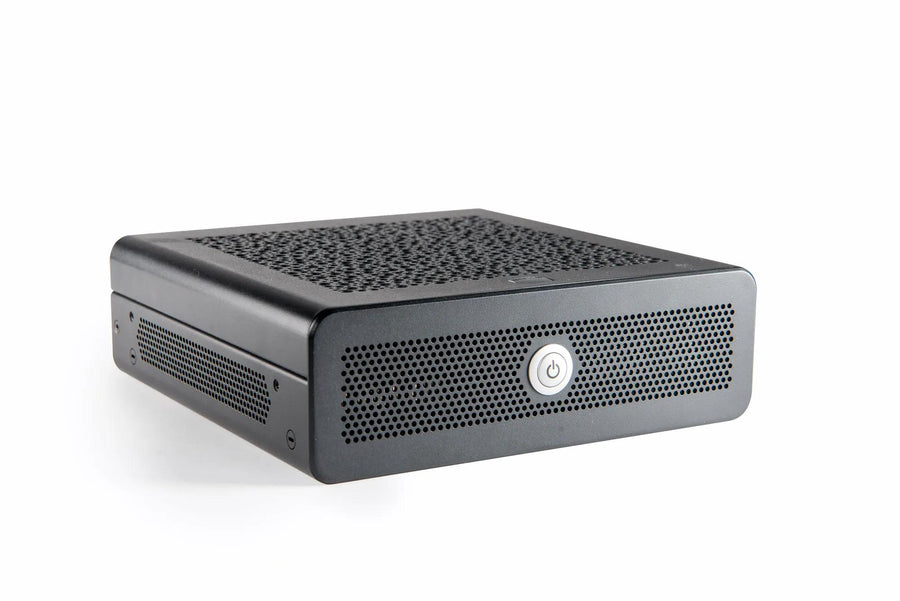

Barco TransForm N NAN-110 Audio Node – NAN-110
The Barco NAN-110 is an audio node from the TransForm N range, built on an Intel Core i5 processor with 8 GB RAM, a 128 GB industrial SSD and two 1 Gb/s LAN ports. It runs Linux and supports VESA or rack mounting. Procure.ae supplies the NAN-110 in the UAE.
The NAN-110 is built on an Intel Core i5 processor with 8 GB RAM and a 128 GB industrial SSD, and it runs Linux. It has two 1 Gb/s LAN ports and a 150 W external power supply that accepts 90–264 V AC, 47–63 Hz. The manufacturer rates it for 0 to 40 °C operation at up to 80% humidity, non-condensing, and lists FCC Class A and CE among its compliance marks.
The NAN-110 is part of the TransForm N range, alongside the Barco EMS-110 server, which uses the same processor, memory, storage and power specifications. It mounts on the P110 VESA mount for one OPS-110 and one power supply, or on the P110 rack mount for two OPS-110 units and two power supplies, which suits equipment racks.
Type
Audio Node
Weight
2.2 kg (4.5 kg packed)
- Intel Core i5 processor
- 128 GB industrial SSD
- Dual 1 Gb/s LAN
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Intel Core i5 processor
Processor platform with 8 GB RAM.
02
128 GB industrial SSD
Industrial-grade solid-state storage.
03
Dual 1 Gb/s LAN
Two 1 Gb/s LAN ports.
04
Linux operating system
Runs Linux as its operating system.
05
Flexible mounting
VESA mount or rack mount options from the P110 range.
06
Compliance marks
CE, UL, FCC Class A, CCC and other listed marks.
Specifications
15 specificationsGeneral
ModelNAN-110
TypeAudio Node
What's in the BoxNAN-110 audio node, power supply, mounting bracket set, vertical stand, region-specific mains cable (optional)
Performance
Operating SystemLinux
ProcessorIntel Core i5
RAM8 GB
Storage128 GB industrial SSD
Connectivity
Ethernet2 × 1 Gb/s LAN
Input Voltage90–264 V AC, 47–63 Hz
Power
Power Consumption83 W (typical); 109 W (maximum)
Physical
MountingP110 VESA mount (R9811098) for one OPS-110 and one power supply; P110 rack mount (R9811099) for two OPS-110 and two power supplies
Operating HumidityUp to 80% (non-condensing)
Operating Temperature0 to 40 °C
Weight2.2 kg (4.5 kg packed)
Compliance
CertificationsCE, CB, UL, RCM, BIS, CU-EAC, CCC, KC, FCC Class A
Downloads
Manufacturer documents for the Barco TransForm N NAN-110 Audio Node – NAN-110 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Barco NAN-110?
The NAN-110 is an audio node from the Barco TransForm N range. It has an Intel Core i5 processor, 8 GB RAM, a 128 GB industrial SSD and two 1 Gb/s LAN ports.
Can the NAN-110 be rack mounted?
Yes. The manufacturer lists a P110 rack mount (R9811099) for two OPS-110 units and two power supplies, as well as a P110 VESA mount for one OPS-110 and one power supply.
What power supply does the NAN-110 need?
It uses an external 150 W power supply that accepts 90–264 V AC, 47–63 Hz. Typical power consumption is 83 W, with a maximum of 109 W. The unit operates from 0 to 40 °C at up to 80% humidity, non-condensing.
Can I buy the NAN-110 in the UAE?
Yes, Procure.ae supplies the Barco NAN-110 in the UAE and can confirm current availability, quote, deliver and install it. Procure.ae can also advise on bulk and project orders for multi-node installations. Contact us on WhatsApp or by email for a quote.
Does the NAN-110 include a power supply?
