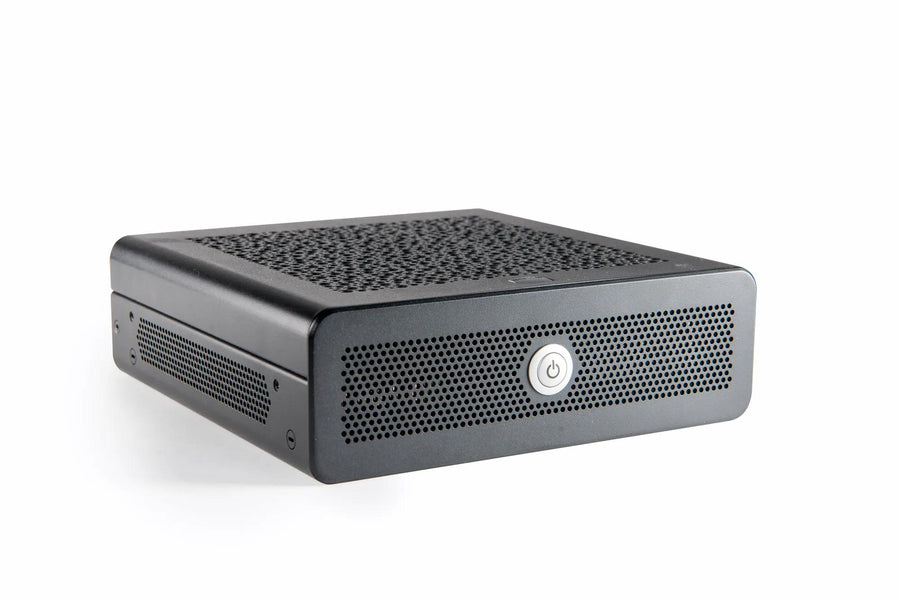

Barco TransForm N NAN-110 Audio Node – NAN-110

The Barco NAN-110 is an audio node from the TransForm N range, built on an Intel Core i5 processor with 8 GB RAM, a 128 GB industrial SSD and two 1 Gb/s LAN ports. It runs Linux and supports VESA or rack mounting. Procure.ae supplies the NAN-110 in the UAE.

The NAN-110 is built on an Intel Core i5 processor with 8 GB RAM and a 128 GB industrial SSD, and it runs Linux. It has two 1 Gb/s LAN ports and a 150 W external power supply that accepts 90–264 V AC, 47–63 Hz. The manufacturer rates it for 0 to 40 °C operation at up to 80% humidity, non-condensing, and lists FCC Class A and CE among its compliance marks.

The NAN-110 is part of the TransForm N range, alongside the Barco EMS-110 server, which uses the same processor, memory, storage and power specifications. It mounts on the P110 VESA mount for one OPS-110 and one power supply, or on the P110 rack mount for two OPS-110 units and two power supplies, which suits equipment racks.

Type

Audio Node

Weight

2.2 kg (4.5 kg packed)

Key features

Intel Core i5 processor

Processor platform with 8 GB RAM.

128 GB industrial SSD

Industrial-grade solid-state storage.

Dual 1 Gb/s LAN

Two 1 Gb/s LAN ports.

Linux operating system

Runs Linux as its operating system.

Flexible mounting

VESA mount or rack mount options from the P110 range.

Compliance marks

CE, UL, FCC Class A, CCC and other listed marks.

Specifications

General
Model	NAN-110
Type	Audio Node
What's in the Box	NAN-110 audio node, power supply, mounting bracket set, vertical stand, region-specific mains cable (optional)

Performance
Operating System	Linux
Processor	Intel Core i5
RAM	8 GB
Storage	128 GB industrial SSD

Connectivity
Ethernet	2 × 1 Gb/s LAN
Input Voltage	90–264 V AC, 47–63 Hz

Power
Power Consumption	83 W (typical); 109 W (maximum)

Physical
Mounting	P110 VESA mount (R9811098) for one OPS-110 and one power supply; P110 rack mount (R9811099) for two OPS-110 and two power supplies
Operating Humidity	Up to 80% (non-condensing)
Operating Temperature	0 to 40 °C
Weight	2.2 kg (4.5 kg packed)

Compliance
Certifications	CE, CB, UL, RCM, BIS, CU-EAC, CCC, KC, FCC Class A
