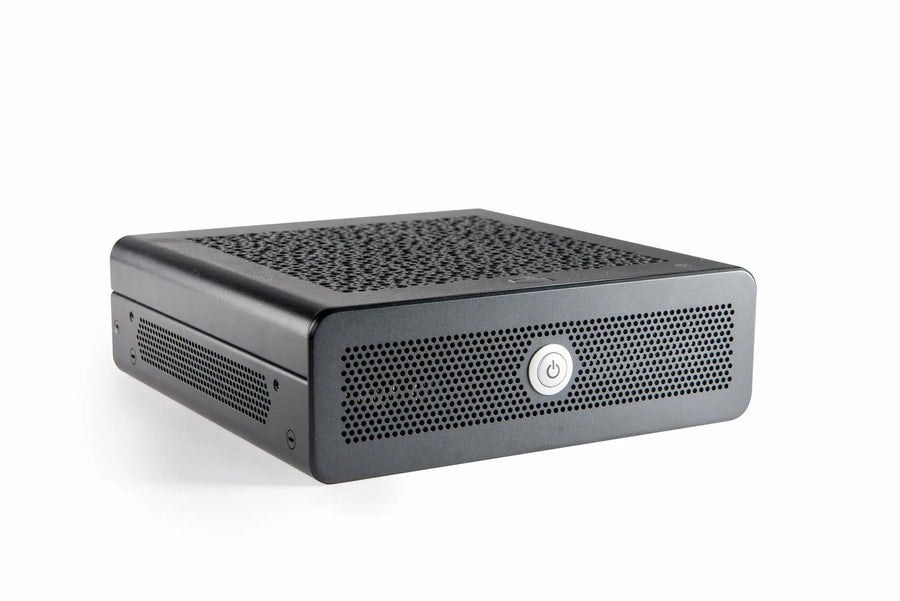

Barco TransForm N Encoder Manager NEM-110
The Barco TransForm N Encoder Manager NEM-110 is a dedicated hardware node for networked visualization systems. It runs an Intel Core i7 quad-core processor with 16 GB RAM and a 256 GB SSD, and has two 1 Gb/s LAN ports. Procure.ae supplies the NEM-110 across the UAE.
The NEM-110 is built for the server role in a Barco TransForm N installation. Its Intel Core i7 quad-core processor runs at 3.4 GHz, supported by 16 GB of RAM and a 256 GB SSD. Two 1 Gb/s LAN ports carry network traffic between the unit and the rest of the system. Typical power consumption is 83 W and the maximum is 110 W, supplied by an external 150 W power adapter that accepts 90–264 V AC. The unit is certified to CE, CB, UL, RCM, BIS, CU-EAC and FCC Class A.
Use the NEM-110 where a TransForm N networked visualization system needs a dedicated encoder manager in a control room or operations centre. Its 0 to 40 °C operating range and up to 80% non-condensing humidity suit standard equipment rooms. Procure.ae can help scope a TransForm N system around it, including the matching TransForm N Management Server, with installation and training available across the UAE.
Type
Video Wall Encoder Manager
Weight
2.2 kg
- Intel Core i7 processor
- 16 GB memory
- 256 GB SSD storage
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Intel Core i7 processor
quad-core CPU running at 3.4 GHz.
02
16 GB memory
16 GB RAM for the server workload.
03
256 GB SSD storage
256 GB solid-state drive for system and data storage.
04
Dual Gigabit LAN
two 1 Gb/s LAN ports.
05
Compact chassis
60 x 190 x 190 mm and 2.2 kg.
06
Wide input range
external 150 W power supply for 90–264 V AC, 47–63 Hz.
07
Rated operating range
0 to 40 °C with up to 80% RH, non-condensing.
08
Global certifications
CE, CB, UL, RCM, BIS, CU-EAC and FCC Class A.
Specifications
14 specificationsGeneral
Key FeaturesIntel Core i7 quad-core processor, 16 GB RAM, 256 GB SSD, 2 x 1 Gb/s LAN, networked visualization node
ModelTransForm N Encoder Manager NEM-110
TypeVideo Wall Encoder Manager
Performance
ProcessorIntel Core i7 quad-core, 3.4 GHz
RAM16 GB
Storage256 GB SSD
Connectivity
Input Voltage90–264 V AC, 47–63 Hz
PortsEthernet LAN × 2 (1 Gb/s)
Power
Power Consumption83 W (typical), 110 W (maximum)
Power SourceExternal 150 W power supply
Physical
Operating HumidityUp to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Weight2.2 kg
Compliance
CertificationsCE, CB, UL, RCM, BIS, CU-EAC, FCC Class A
Downloads
Manufacturer documents for the Barco TransForm N Encoder Manager NEM-110 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Barco TransForm N Encoder Manager NEM-110?
It is a networked visualization server node in Barco's TransForm N range. It is built on an Intel Core i7 quad-core processor with 16 GB RAM and a 256 GB SSD, and it is listed under Barco's networked visualization servers.
What processor, memory and storage does the NEM-110 have?
The NEM-110 has an Intel Core i7 quad-core CPU at 3.4 GHz, 16 GB of RAM and a 256 GB SSD. These are the core hardware specifications stated by the manufacturer.
How much power does the NEM-110 use?
Typical power consumption is 83 W and maximum consumption is 110 W. It uses an external 150 W power supply that accepts 90–264 V AC at 47–63 Hz, and its rated operating range is 0 to 40 °C.
Does the NEM-110 have Gigabit network ports?
Yes. It has two 1 Gb/s LAN ports, which connect the NEM-110 to the networked visualization system and the rest of the network. The manufacturer lists them as 2x 1 Gb/s network ports.
Can I buy the TransForm N Encoder Manager NEM-110 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
