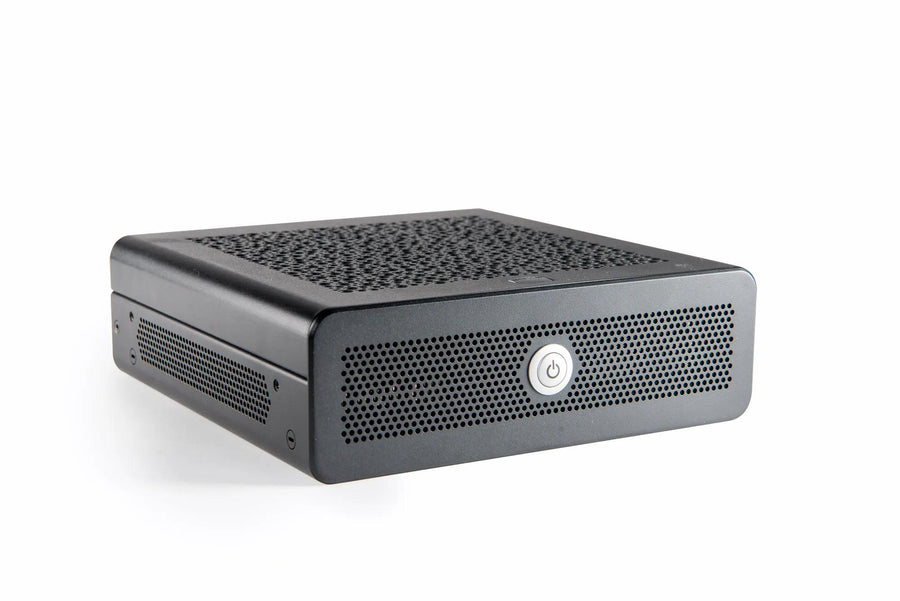

Barco TransForm N Encoder Manager NEM-110

The Barco TransForm N Encoder Manager NEM-110 is a dedicated hardware node for networked visualization systems. It runs an Intel Core i7 quad-core processor with 16 GB RAM and a 256 GB SSD, and has two 1 Gb/s LAN ports. Procure.ae supplies the NEM-110 across the UAE.

The NEM-110 is built for the server role in a Barco TransForm N installation. Its Intel Core i7 quad-core processor runs at 3.4 GHz, supported by 16 GB of RAM and a 256 GB SSD. Two 1 Gb/s LAN ports carry network traffic between the unit and the rest of the system. Typical power consumption is 83 W and the maximum is 110 W, supplied by an external 150 W power adapter that accepts 90–264 V AC. The unit is certified to CE, CB, UL, RCM, BIS, CU-EAC and FCC Class A.

Use the NEM-110 where a TransForm N networked visualization system needs a dedicated encoder manager in a control room or operations centre. Its 0 to 40 °C operating range and up to 80% non-condensing humidity suit standard equipment rooms. Procure.ae can help scope a TransForm N system around it, including the matching TransForm N Management Server, with installation and training available across the UAE.

Type

Video Wall Encoder Manager

Weight

2.2 kg

Key features

Intel Core i7 processor

quad-core CPU running at 3.4 GHz.

16 GB memory

16 GB RAM for the server workload.

256 GB SSD storage

256 GB solid-state drive for system and data storage.

Dual Gigabit LAN

two 1 Gb/s LAN ports.

Compact chassis

60 x 190 x 190 mm and 2.2 kg.

Wide input range

external 150 W power supply for 90–264 V AC, 47–63 Hz.

Rated operating range

0 to 40 °C with up to 80% RH, non-condensing.

Global certifications

CE, CB, UL, RCM, BIS, CU-EAC and FCC Class A.

Specifications

General
Key Features	Intel Core i7 quad-core processor, 16 GB RAM, 256 GB SSD, 2 x 1 Gb/s LAN, networked visualization node
Model	TransForm N Encoder Manager NEM-110
Type	Video Wall Encoder Manager

Performance
Processor	Intel Core i7 quad-core, 3.4 GHz
RAM	16 GB
Storage	256 GB SSD

Connectivity
Input Voltage	90–264 V AC, 47–63 Hz
Ports	Ethernet LAN × 2 (1 Gb/s)

Power
Power Consumption	83 W (typical), 110 W (maximum)
Power Source	External 150 W power supply

Physical
Operating Humidity	Up to 80% RH, non-condensing
Operating Temperature	0 to 40 °C
Weight	2.2 kg

Compliance
Certifications	CE, CB, UL, RCM, BIS, CU-EAC, FCC Class A
