BarcoVideo WallsSKU LVC 420
Barco TransForm LVC 420 Video Wall Controller – LVC 420

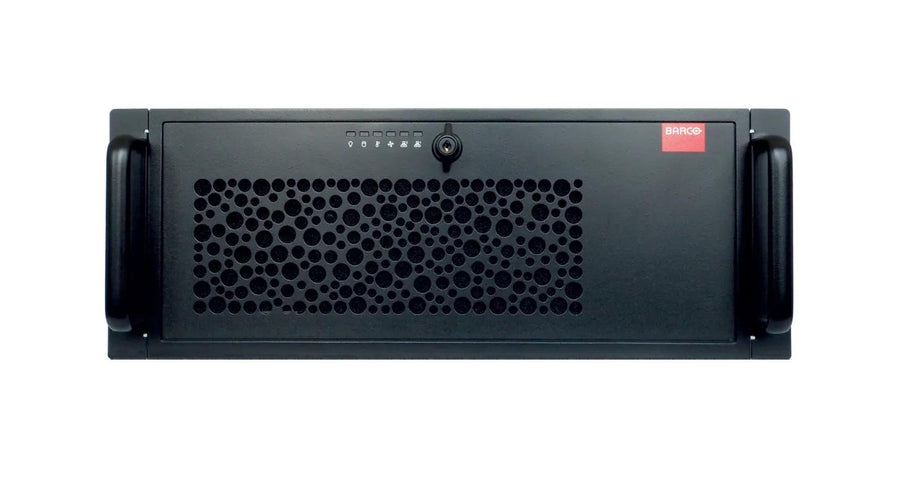

The Barco LVC 420 is a 4U rack-mount video wall controller for control rooms. It captures networked and local DVI, HDMI, DisplayPort and analog sources and shows them on a video wall, with outputs for up to 64 HD displays. The manufacturer states the product is available in India only, so Procure.ae can confirm UAE availability.
The LVC 420 captures networked sources and local DVI, HDMI, DisplayPort and analog video inputs, then shows them on a video wall in combination with high-resolution images. The manufacturer states outputs for up to 64 HD displays with loop-through. It runs on Windows 10 64-bit IoT Enterprise with an Intel Xeon octa-core processor, 32 GB or 64 GB of RAM, and RAID-1 redundant storage.
The LVC 420 is a 4U rack-mount unit for 19-inch racks, with a redundant 800 W power supply. It can run Windows-based local applications and also be part of a TransForm N network visualisation system that controls video walls. The manufacturer's specifications do not state a direct comparison with other Barco controllers.
Type
Video Wall Controller
- Networked source capture
- High display count
- Windows platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Networked source capture
Captures networked sources from anywhere on the network.
02
High display count
Outputs up to 64 HD displays with Barco loop-through.
03
Windows platform
Windows 10 64-bit IoT Enterprise on an Intel Xeon octa-core processor.
04
Redundant storage
2 x 1,000 GB HDD in RAID-1 redundant setup.
05
Redundant power
800 W redundant power supply, 100–240 V.
06
Rack mounting
4U housing for 19-inch rack mounting.
Specifications
15 specificationsGeneral
Key FeaturesStandalone video wall controller, networked and local sources, Windows applications, Barco CMS, TransForm N integration, redundant power
ModelLVC 420
TypeVideo Wall Controller
Performance
Operating SystemWindows 10 64-bit IoT Enterprise
ProcessorIntel Xeon octa-core 2.1 GHz (3.0 GHz max. turbo)
RAM32 GB / 64 GB
Storage2 x 1,000 GB HDD, RAID-1
Connectivity
Ethernet2 x 1 Gb/s LAN
Input Voltage100–240 V, 50/60 Hz, 800 W redundant power supply
InputsUp to 5 x 4-channel DVI-I, 5 x 2-channel DisplayPort 1.2 (4096 x 2160 @ 60 Hz), 5 x 8-channel analog video, 4 x 4-channel HDMI, 4 x 1-channel HDMI (4K)
OutputsUp to 64 HD displays with Barco loop-through
Physical
Form Factor4U 19-inch rack mount
Operating HumidityMax. 80% RH (non-condensing) at 40 °C
Operating Temperature0 to 35 °C
Compliance
CertificationsUL, CB, BIS, FCC, CE, IEC 60950, IEC 62368
Downloads
Manufacturer documents for the Barco TransForm LVC 420 Video Wall Controller – LVC 420 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What does the Barco LVC 420 do?
The LVC 420 is a standalone video wall controller for monitoring baseband and networked video sources. It can display them on a video wall, alongside high-resolution images, and run Windows-based local applications.
How many displays can the LVC 420 drive?
The manufacturer states up to 64 HD displays with Barco loop-through. Input capacity includes up to 5 DVI-I cards, 5 DisplayPort 1.2 cards and 5 analog video cards. The manufacturer lists the outputs as HD displays with Barco loop-through, not 4K.
Is the LVC 420 suitable for a rack in a control room?
Yes. It is a 4U housing for 19-inch rack mounting, with a redundant 800 W power supply and an operating range of 0 to 35 °C. Its humidity rating is a maximum of 80% RH (non-condensing) at 40 °C.
Can the LVC 420 be part of a networked wall?
Yes. The manufacturer states that it can run Windows-based applications and be integrated into a TransForm N network visualisation system that controls video walls. The manufacturer also lists 2 x 1 Gb/s LAN ports for network connection.
Can I buy the LVC 420 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
