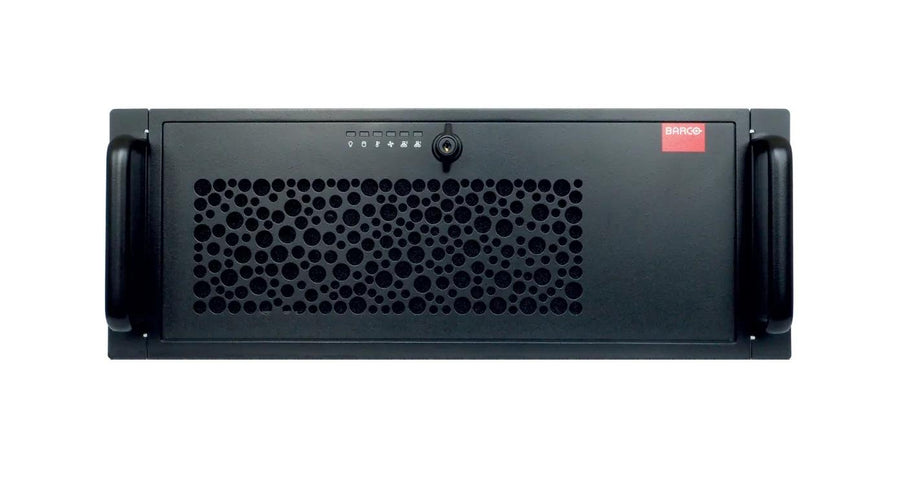

Barco TransForm LVC 420 Video Wall Controller – LVC 420
The Barco LVC 420 is a 4U rack-mount video wall controller for control rooms. It captures networked and local DVI, HDMI, DisplayPort and analog sources and shows them on a video wall, with outputs for up to 64 HD displays. The manufacturer states the product is available in India only, so Procure.ae can confirm UAE availability.
The LVC 420 captures networked sources and local DVI, HDMI, DisplayPort and analog video inputs, then shows them on a video wall in combination with high-resolution images. The manufacturer states outputs for up to 64 HD displays with loop-through. It runs on Windows 10 64-bit IoT Enterprise with an Intel Xeon octa-core processor, 32 GB or 64 GB of RAM, and RAID-1 redundant storage.
The LVC 420 is a 4U rack-mount unit for 19-inch racks, with a redundant 800 W power supply. It can run Windows-based local applications and also be part of a TransForm N network visualisation system that controls video walls. The manufacturer's specifications do not state a direct comparison with other Barco controllers.
Key features
Specifications
| Key Features | Standalone video wall controller, networked and local sources, Windows applications, Barco CMS, TransForm N integration, redundant power |
| Model | LVC 420 |
| Type | Video Wall Controller |
| Operating System | Windows 10 64-bit IoT Enterprise |
| Processor | Intel Xeon octa-core 2.1 GHz (3.0 GHz max. turbo) |
| RAM | 32 GB / 64 GB |
| Storage | 2 x 1,000 GB HDD, RAID-1 |
| Ethernet | 2 x 1 Gb/s LAN |
| Input Voltage | 100–240 V, 50/60 Hz, 800 W redundant power supply |
| Inputs | Up to 5 x 4-channel DVI-I, 5 x 2-channel DisplayPort 1.2 (4096 x 2160 @ 60 Hz), 5 x 8-channel analog video, 4 x 4-channel HDMI, 4 x 1-channel HDMI (4K) |
| Outputs | Up to 64 HD displays with Barco loop-through |
| Form Factor | 4U 19-inch rack mount |
| Operating Humidity | Max. 80% RH (non-condensing) at 40 °C |
| Operating Temperature | 0 to 35 °C |
| Certifications | UL, CB, BIS, FCC, CE, IEC 60950, IEC 62368 |
