BarcoVideo WallsSKU TransForm LVC-400

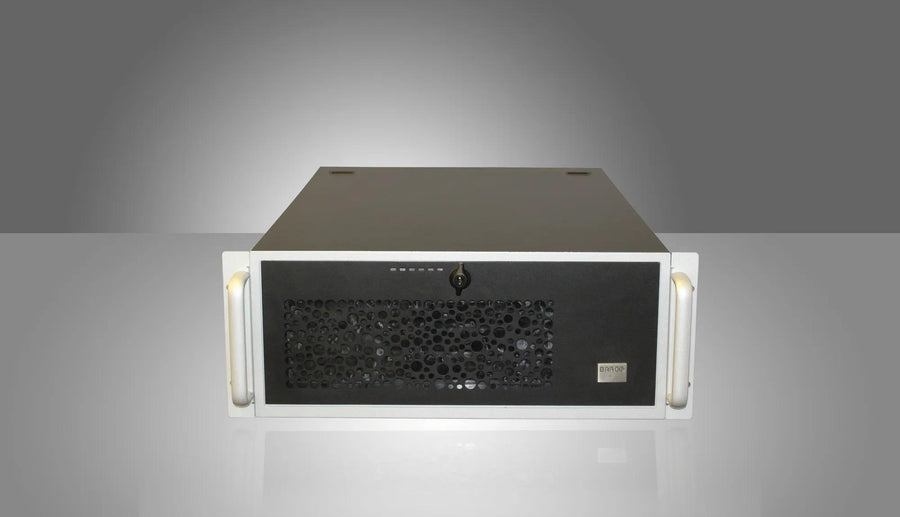

Barco TransForm LVC-400 Video Wall Controller
The Barco TransForm LVC-400 is a 4U rack-mount video wall controller for control rooms. It captures networked sources and local DVI and analog inputs, arranges them in mosaic layouts, and drives up to 8 4K-UHD or 32 HD displays. Procure.ae supplies the TransForm LVC-400 in the UAE.
The LVC-400 captures networked sources from anywhere across a network, and local DVI and analog video inputs. The sources can be arranged on a video wall as a mosaic and recalled at will, all in high resolution. The manufacturer states outputs for up to 8 4K-UHD displays with two graphics cards, or up to 32 HD displays with Barco loop-through. It has 16, 32 or 64 GB of DDR4 RAM and RAID-1 redundant storage.
The LVC-400 runs Windows 10 by default, with Windows 7 as an option, on an Intel Xeon quad-core processor, so Windows-based local applications can run alongside video wall output. It is part of the Barco CMS 3.1 video wall environment and can be integrated into a TransForm N network visualisation system. The manufacturer's specifications do not state a direct comparison with other TransForm controllers.
Type
Video Wall Controller
- Networked source capture
- Mosaic layouts
- 4K-UHD output
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Networked source capture
Captures networked sources from anywhere across the network.
02
Mosaic layouts
Arranges sources on a video wall as a mosaic.
03
4K-UHD output
Up to 8 4K-UHD displays with two graphics cards.
04
HD loop-through
Up to 32 HD displays with Barco loop-through.
05
Windows platform
Windows 10 default, Windows 7 optional, on Intel Xeon quad-core.
06
Redundant storage and power
2 x 1 TB RAID-1 and a 750 W redundant power supply.
07
Rack mounting
4U housing for 19-inch rack mounting.
Specifications
17 specificationsGeneral
ApplicationBarco CMS 3.1 video wall control
Key FeaturesStandalone or networked operation, networked and local sources, Windows applications, mosaic layouts, recall of inputs, redundant storage and power
ModelTransForm LVC-400
TypeVideo Wall Controller
Performance
GraphicsUp to 2 x 4-channel high-performance graphics cards
Operating SystemWindows 10 (default), Windows 7 (optional)
ProcessorIntel Xeon quad-core 3.5 GHz
RAM16 / 32 / 64 GB DDR4
Storage2 x 1 TB RAID-1 HDD, DVD R/W
Connectivity
Ethernet2 x 1 Gbps LAN
Input Voltage100–240 V, 50/60 Hz, 750 W redundant power supply
Inputs1 x 2-channel DVI input card, 1 x 4-channel DVI input card, 1 x 8-channel analog video input card
OutputsUp to 8 4K-UHD displays with two graphics cards, or up to 32 HD displays with Barco loop-through
Physical
Form Factor4U 19-inch rackmount
Operating HumidityMax. 80% RH (non-condensing) at 40 °C
Operating Temperature0 to 40 °C
Compliance
CertificationsBIS
Downloads
Manufacturer documents for the Barco TransForm LVC-400 Video Wall Controller — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What does the Barco TransForm LVC-400 do?
The LVC-400 is a standalone video wall controller. It captures networked and local video sources, arranges them on a video wall as a mosaic, and recalls inputs at will in high resolution.
How many displays does the LVC-400 support?
The manufacturer states up to 8 4K-UHD displays with two graphics cards, or up to 32 HD displays with Barco loop-through. Its inputs are a 2-channel DVI card, a 4-channel DVI card and an 8-channel analog video card.
Can the LVC-400 run Windows applications?
Yes. The manufacturer states it runs Windows 10 by default, with Windows 7 as an option, and can run Windows-based local applications alongside video wall output. The processor is an Intel Xeon quad-core at 3.5 GHz, with 16, 32 or 64 GB of DDR4 RAM.
Does the LVC-400 fit a standard rack?
Yes. It is a 4U housing for 19-inch rack mounting, with a 750 W redundant power supply, 100–240 V, and an operating range of 0 to 40 °C. Its humidity rating is a maximum of 80% RH, non-condensing, at 40 °C.
Can I buy the TransForm LVC-400 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
