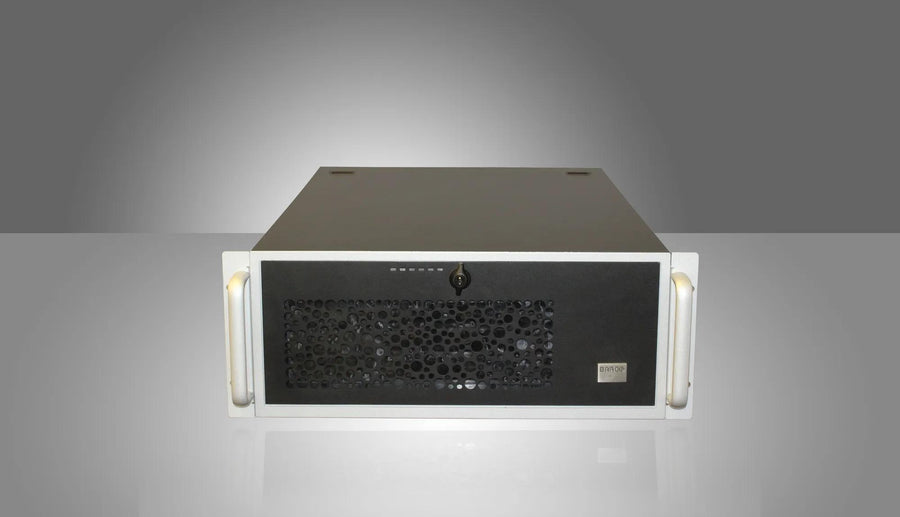

Barco TransForm LVC-400 Video Wall Controller

The Barco TransForm LVC-400 is a 4U rack-mount video wall controller for control rooms. It captures networked sources and local DVI and analog inputs, arranges them in mosaic layouts, and drives up to 8 4K-UHD or 32 HD displays. Procure.ae supplies the TransForm LVC-400 in the UAE.

The LVC-400 captures networked sources from anywhere across a network, and local DVI and analog video inputs. The sources can be arranged on a video wall as a mosaic and recalled at will, all in high resolution. The manufacturer states outputs for up to 8 4K-UHD displays with two graphics cards, or up to 32 HD displays with Barco loop-through. It has 16, 32 or 64 GB of DDR4 RAM and RAID-1 redundant storage.

The LVC-400 runs Windows 10 by default, with Windows 7 as an option, on an Intel Xeon quad-core processor, so Windows-based local applications can run alongside video wall output. It is part of the Barco CMS 3.1 video wall environment and can be integrated into a TransForm N network visualisation system. The manufacturer's specifications do not state a direct comparison with other TransForm controllers.
