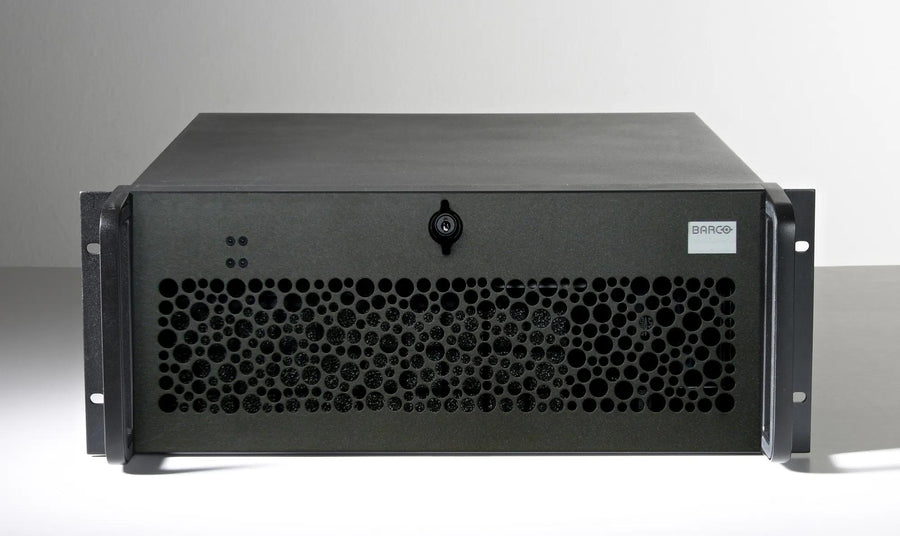

Barco TransForm ECU-300 Video Wall Controller
The Barco TransForm ECU-300 is a discontinued 19-inch rack video wall controller with a PCI Express switch fabric backplane. It has 4K HDMI 2.0 graphics output and a streaming decode card for H.264 and other formats. Procure.ae can confirm current UAE availability or recommend a current Barco controller model.
The ECU-300 captures and displays high amounts of video sources and graphical application data on control room video walls. Its graphics card provides four 3840 x 2160 outputs at 60 Hz over HDMI 2.0. The manufacturer lists a streaming card for H.264, VC-1, MPEG2 and MJPG decoding, and a 2-channel DisplayPort 1.2 input card for signals up to 4096 x 2160 at 60 Hz. Memory is 32 GB RAM with RAID-1 SSD storage.
The ECU-300 runs Windows 10 64-bit IoT Enterprise LTSC on an Intel 7th Gen Kaby Lake Core i7-7700 processor, so Windows applications can run on the controller. The manufacturer lists Barco Display Control 10 for management and does not list Barco CMS. It can be operated standalone or within a networked environment, and it sits in a 19-inch rack with 800 W + 800 W hot-plug redundant power.
Type
Video Wall Controller
- 4K HDMI outputs
- Streaming decode
- DisplayPort input
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K HDMI outputs
Four 3840 x 2160 at 60 Hz outputs over HDMI 2.0.
02
Streaming decode
Decodes H.264, VC-1, MPEG2 and MJPG streams.
03
DisplayPort input
2-channel DisplayPort 1.2 cards for signals up to 4096 x 2160 at 60 Hz.
04
Large wall capability
Up to 96 HD Barco displays or 24 4K or HD non-Barco displays.
05
Expansion backplane
11-slot PCI Express 3.0 backplane for up to 31 input and output cards.
06
Redundant power
800 W + 800 W hot-plug redundant power supply.
Specifications
17 specificationsGeneral
ApplicationBarco Display Control 10 management (no Barco CMS)
Key FeaturesStandalone or networked operation, streaming decode (H.264, VC-1, MPEG2, MJPG), Windows applications on the controller, 11-slot backplane, redundant power
ModelTransForm ECU-300
TypeVideo Wall Controller
Performance
Graphics4-channel graphics card, 4 x 3840 x 2160 @ 60 Hz (HDMI 2.0)
Operating SystemWindows 10 64-bit IoT Enterprise LTSC
ProcessorIntel 7th Gen Kaby Lake Core i7-7700
RAM32 GB
Storage2 x 240 GB or 2 x 480 GB SSD, RAID-1
Connectivity
Ethernet2 x 1 Gb/s LAN
Expansion11-slot PCI Express 3.0 backplane, up to 31 input and output cards with two expansion chassis
Input Voltage100–240 V AC, 800 W + 800 W hot-plug redundant
InputsHDMI 1.4 and quad DVI-I capture cards, 2-channel DisplayPort 1.2 (up to 4096 x 2160 @ 60 Hz), 8-channel analog video, streaming card
OutputsUp to 96 HD Barco displays, up to 24 4K or HD non-Barco displays
Physical
Dimensions19-inch rackmount
Operating Temperature0 to 35 °C (non-operating -20 to 70 °C)
Compliance
CertificationsCE, FCC Part 15 Class A, UL, CSA, EN, IEC 60950-1
Downloads
Manufacturer documents for the Barco TransForm ECU-300 Video Wall Controller — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Barco TransForm ECU-300 used for?
The ECU-300 is a video wall controller that captures and displays high amounts of video sources and graphical application data on large control room walls. It also runs standard Windows applications.
What 4K outputs does the ECU-300 provide?
The graphics card provides four 3840 x 2160 at 60 Hz outputs over HDMI 2.0. The manufacturer states it drives up to 24 4K or HD non-Barco displays and up to 96 HD Barco displays.
Does the ECU-300 support video streaming?
Yes. The streaming card supports H.264, VC-1, MPEG2 and MJPG. The manufacturer lists decode density of one 4096 x 2160 stream at 60 Hz, three at 30 Hz, six 1920 x 1080 streams at 60 Hz or twelve at 30 Hz.
Can the ECU-300 be managed with Barco CMS?
No. The manufacturer lists Barco Display Control 10 as the management option for the ECU-300, and states that it does not use Barco CMS. The controller is rated for 0 to 35 °C operation and designed for 19-inch rack mounting.
