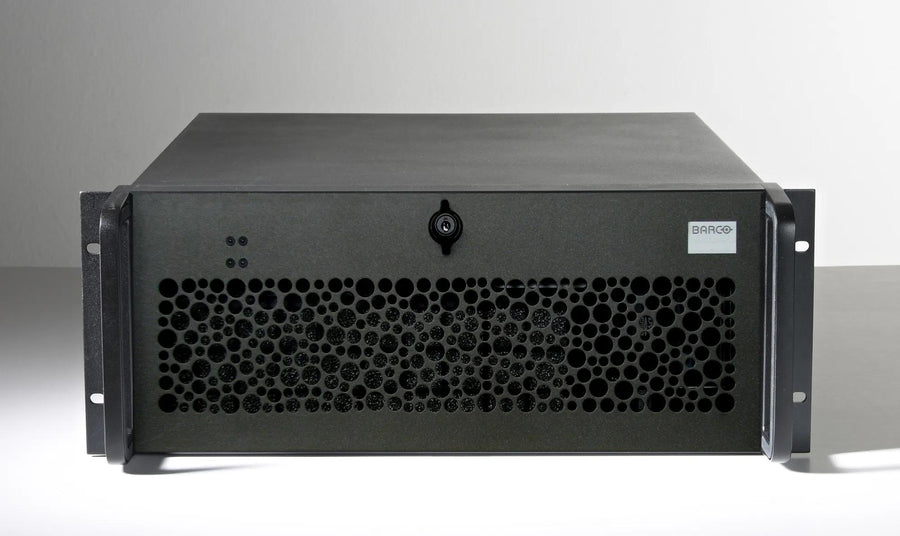

Barco TransForm ECU-300 Video Wall Controller

The Barco TransForm ECU-300 is a discontinued 19-inch rack video wall controller with a PCI Express switch fabric backplane. It has 4K HDMI 2.0 graphics output and a streaming decode card for H.264 and other formats. Procure.ae can confirm current UAE availability or recommend a current Barco controller model.

The ECU-300 captures and displays high amounts of video sources and graphical application data on control room video walls. Its graphics card provides four 3840 x 2160 outputs at 60 Hz over HDMI 2.0. The manufacturer lists a streaming card for H.264, VC-1, MPEG2 and MJPG decoding, and a 2-channel DisplayPort 1.2 input card for signals up to 4096 x 2160 at 60 Hz. Memory is 32 GB RAM with RAID-1 SSD storage.

The ECU-300 runs Windows 10 64-bit IoT Enterprise LTSC on an Intel 7th Gen Kaby Lake Core i7-7700 processor, so Windows applications can run on the controller. The manufacturer lists Barco Display Control 10 for management and does not list Barco CMS. It can be operated standalone or within a networked environment, and it sits in a 19-inch rack with 800 W + 800 W hot-plug redundant power.
