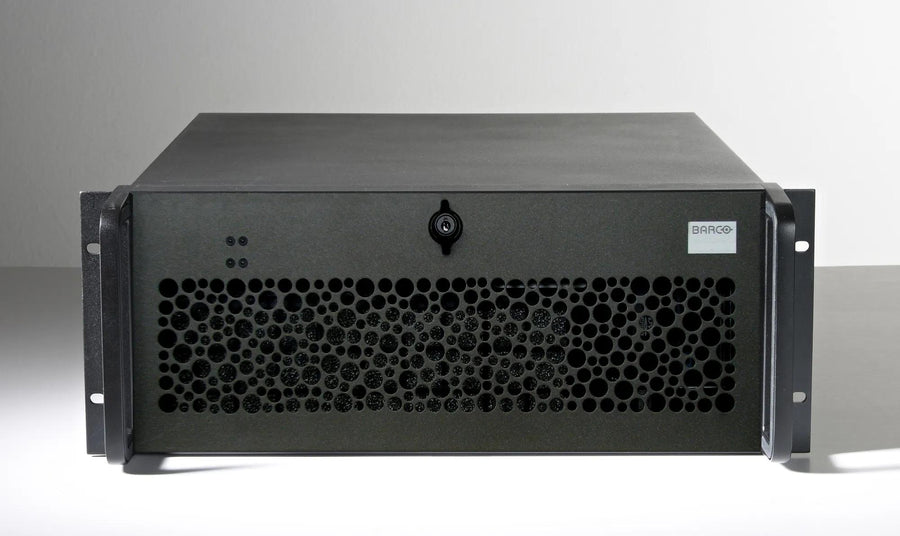

Barco TransForm ECU-200 Video Wall Controller
The Barco TransForm ECU-200 is a discontinued 19-inch rack video wall controller for large control room walls. It captures and displays many video sources and runs Windows applications on an Intel Core i7 quad-core processor. Procure.ae can confirm current UAE availability or recommend a current Barco controller model.
The ECU-200 captures and displays high amounts of video sources and graphical application data on large control room video walls. Its PCI Express 3.0 backplane carries high bandwidth between cards. The manufacturer lists 2-channel DisplayPort 1.2 input cards for up to 4096 x 2160 at 60 Hz, an 8-channel analog video input card, and a 4-channel graphics card that drives up to 48 HD displays. Storage is 2 x 1 TB in RAID-1.
The ECU-200 runs Windows 10 64-bit IoT Enterprise LTSC on an Intel Core i7 quad-core processor, so Windows applications can run directly on the controller. It is managed with Barco CMS, or with Barco Display Control as an alternative. The manufacturer states it can operate standalone or as part of a networked TransForm N collaboration environment.
Type
Video Wall Controller
- Large wall capability
- PCI Express backplane
- High input density
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Large wall capability
Up to 48 HD displays from the 4-channel graphics card.
02
PCI Express backplane
11-slot PCI Express 3.0 backplane with switch fabric.
03
High input density
Up to 31 input and output cards with two expansion chassis.
04
DisplayPort input
2-channel DisplayPort 1.2 cards for signals up to 4096 x 2160 at 60 Hz.
05
Redundant storage and power
2 x 1 TB RAID-1 storage and 800 W + 800 W hot-plug power.
06
Windows platform
Windows 10 64-bit IoT Enterprise LTSC on Intel Core i7 quad-core.
Specifications
16 specificationsGeneral
ApplicationBarco CMS or Barco Display Control (alternative option)
Key FeaturesStandalone or networked operation, 11-slot PCI Express backplane, Windows applications on the controller, high input density, hot-plug redundant storage and power
ModelTransForm ECU-200
TypeVideo Wall Controller
Performance
Graphics4-channel graphics card, up to 48 HD displays
Operating SystemWindows 10 64-bit IoT Enterprise LTSC
ProcessorIntel Core i7 quad-core 3.1 GHz (3.9 GHz max. turbo)
RAM16 GB
Storage2 x 1 TB RAID-1, hot-plug redundant
Connectivity
Ethernet2 x 1 Gb/s LAN
Expansion11-slot PCI Express 3.0 backplane, up to 31 input and output cards with two expansion chassis
Input Voltage100–240 V AC, 800 W + 800 W hot-plug redundant
Inputs2-channel DisplayPort 1.2 input cards (up to 4096 x 2160 @ 60 Hz), 8-channel analog video input card (PAL, NTSC, SECAM)
Physical
Dimensions19-inch rackmount
Operating Temperature0 to 35 °C (non-operating -20 to 70 °C)
Compliance
CertificationsCE, FCC Part 15 Class A, UL, CSA, EN, CCC, BIS, IEC 60950-1
Downloads
Manufacturer documents for the Barco TransForm ECU-200 Video Wall Controller — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Barco TransForm ECU-200 used for?
The ECU-200 is a video wall controller for control rooms. It captures networked sources and displays them on large video walls, and it can run standard Windows applications on the controller.
How many inputs and outputs does the ECU-200 support?
With up to two expansion chassis, the manufacturer states the system supports up to 31 input and output cards. The graphics card drives up to 48 HD displays. The DisplayPort input cards accept signals up to 4096 x 2160 at 60 Hz.
Can the ECU-200 run with Barco CMS?
Yes. The manufacturer lists Barco Control Room Management Suite CMS for management, with Barco Display Control (DCS) as an alternative option. The controller can operate standalone or be integrated into a networked TransForm N collaboration environment.
Does the ECU-200 suit a 19-inch rack?
Yes. It is a 19-inch rackmount unit with 800 W + 800 W hot-plug redundant power and an operating range of 0 to 35 °C. The manufacturer lists the controller as a rackmount unit running Windows 10 64-bit IoT Enterprise LTSC.
