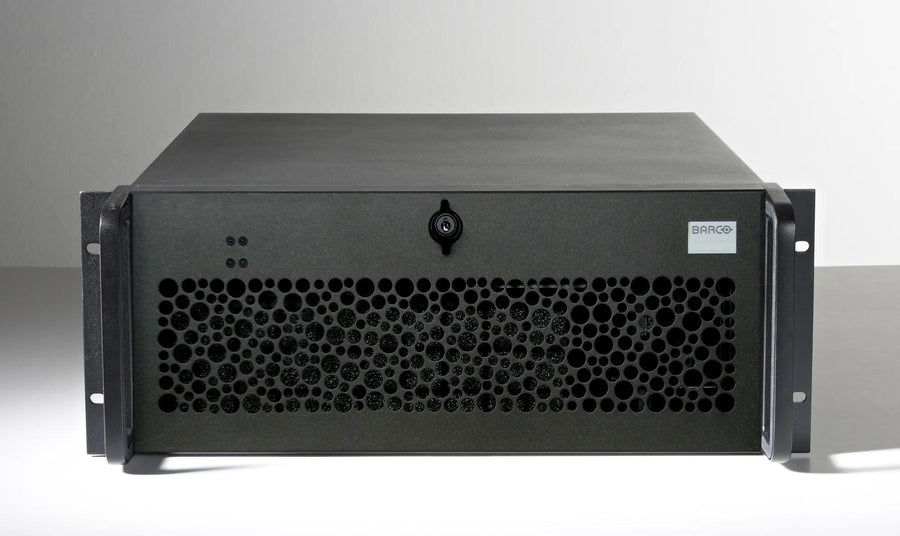

Barco TransForm ECU-200 Video Wall Controller

The Barco TransForm ECU-200 is a discontinued 19-inch rack video wall controller for large control room walls. It captures and displays many video sources and runs Windows applications on an Intel Core i7 quad-core processor. Procure.ae can confirm current UAE availability or recommend a current Barco controller model.

The ECU-200 captures and displays high amounts of video sources and graphical application data on large control room video walls. Its PCI Express 3.0 backplane carries high bandwidth between cards. The manufacturer lists 2-channel DisplayPort 1.2 input cards for up to 4096 x 2160 at 60 Hz, an 8-channel analog video input card, and a 4-channel graphics card that drives up to 48 HD displays. Storage is 2 x 1 TB in RAID-1.

The ECU-200 runs Windows 10 64-bit IoT Enterprise LTSC on an Intel Core i7 quad-core processor, so Windows applications can run directly on the controller. It is managed with Barco CMS, or with Barco Display Control as an alternative. The manufacturer states it can operate standalone or as part of a networked TransForm N collaboration environment.

Type

Video Wall Controller

Key features

Large wall capability

Up to 48 HD displays from the 4-channel graphics card.

PCI Express backplane

11-slot PCI Express 3.0 backplane with switch fabric.

High input density

Up to 31 input and output cards with two expansion chassis.

DisplayPort input

2-channel DisplayPort 1.2 cards for signals up to 4096 x 2160 at 60 Hz.

Redundant storage and power

2 x 1 TB RAID-1 storage and 800 W + 800 W hot-plug power.

Windows platform

Windows 10 64-bit IoT Enterprise LTSC on Intel Core i7 quad-core.

Specifications

General
Application	Barco CMS or Barco Display Control (alternative option)
Key Features	Standalone or networked operation, 11-slot PCI Express backplane, Windows applications on the controller, high input density, hot-plug redundant storage and power
Model	TransForm ECU-200
Type	Video Wall Controller

Performance
Graphics	4-channel graphics card, up to 48 HD displays
Operating System	Windows 10 64-bit IoT Enterprise LTSC
Processor	Intel Core i7 quad-core 3.1 GHz (3.9 GHz max. turbo)
RAM	16 GB
Storage	2 x 1 TB RAID-1, hot-plug redundant

Connectivity
Ethernet	2 x 1 Gb/s LAN
Expansion	11-slot PCI Express 3.0 backplane, up to 31 input and output cards with two expansion chassis
Input Voltage	100–240 V AC, 800 W + 800 W hot-plug redundant
Inputs	2-channel DisplayPort 1.2 input cards (up to 4096 x 2160 @ 60 Hz), 8-channel analog video input card (PAL, NTSC, SECAM)

Physical
Dimensions	19-inch rackmount
Operating Temperature	0 to 35 °C (non-operating -20 to 70 °C)

Compliance
Certifications	CE, FCC Part 15 Class A, UL, CSA, EN, CCC, BIS, IEC 60950-1
