BarcoVideo WallsSKU OverView KVD-5521D

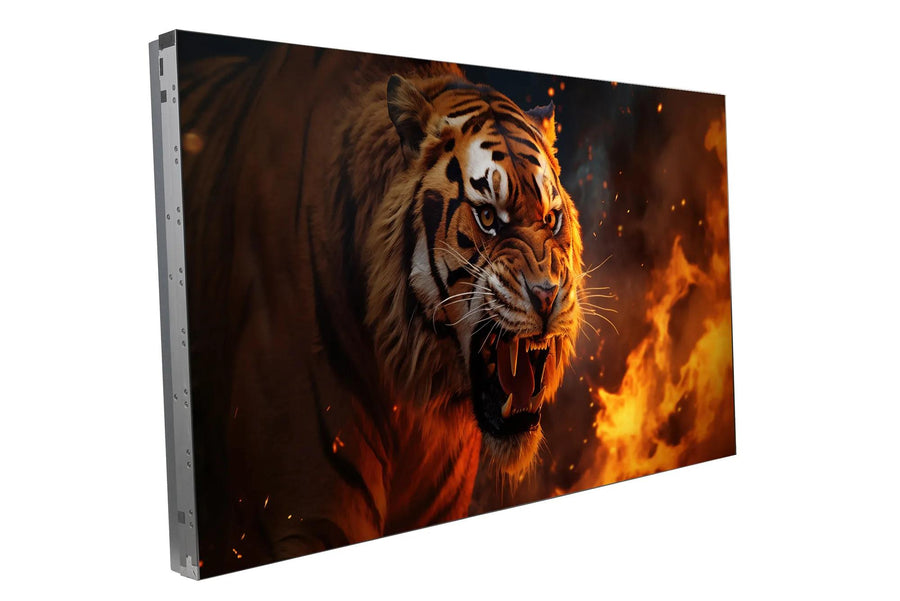

Barco OverView 55-inch LCD Video Wall Display – KVD-5521D
The Barco OverView KVD-5521D is a 55-inch Full HD LCD video wall display for entry-level and mid-range tiled walls. It offers 500 cd/m² typical brightness, a 1,200:1 typical contrast ratio and a 3.5 mm UNB bezel, with a 160 W typical power draw. Procure.ae supplies the OverView KVD-5521D across the UAE.
The KVD-5521D is cost-optimised for video walls, with Sense X automatic color and brightness calibration to keep tiles matched. Its panel has a native 10,000 K white point, 178-degree viewing angles in both directions and an 8 ms response time. The direct LED backlight has a typical lifetime of 50,000 hours, and the display is fanless with a 0 to 40 °C operating range.
The KVD-5521D fits tiled walls where lower power draw matters. It is rated at 160 W typical at 500 nit native, against 190 W at 500 nit native for the KVD-5521C. Connectivity is two DisplayPort 1.2 and two HDMI 2.0 inputs, one DisplayPort 1.2 output and one Ethernet port, with one USB port for power only. The display uses a 600 x 400 mm VESA mount and supports HDCP 2.2.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits (typical)
Type
LCD Video Wall Display
- Full HD panel
- Sense X calibration
- Lower power draw
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD panel
1920 x 1080 resolution at 16:9 with a direct LED backlight.
02
Sense X calibration
Automatic color and brightness calibration keeps tiles matched.
03
Lower power draw
160 W typical at 500 nit native.
04
UNB bezel
A 3.5 mm (0.14-inch) bezel width generation.
05
Fanless cooling
A fanless design rated for 0 to 40 °C operation.
06
Connectivity
Two DisplayPort 1.2 and two HDMI 2.0 inputs, plus one DisplayPort 1.2 output.
07
VESA mounting
A 600 x 400 mm mounting pattern with HDCP 2.2 support.
Specifications
24 specificationsGeneral
Key FeaturesSense X automatic calibration, fanless cooling, 3.5 mm UNB bezel, HDCP 2.2, DisplayPort 1.2 and HDMI 2.0 inputs, 600 x 400 mm VESA mount
ModelOverView KVD-5521D
TypeLCD Video Wall Display
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size3.5 mm (UNB generation; actual 3.4 mm)
Brightness500 nits (typical)
Color Depth3 x 8-bit
Color Temperature10,000 K native white point (typical)
Contrast Ratio1,200:1 (typical)
Lamp Life50,000 hours (backlight, typical)
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Storage Conditions-20 to 60 °C; 10% to 80% RH, non-condensing
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort 1.2 × 2 in, × 1 out; HDMI 2.0 × 2; Ethernet × 1; USB × 1 (power only)
Power
Power Consumption160 W (typical, 500 nit native)
Physical
Dimensions1213 x 683.8 x 122.5 mm
Operating Humidity20% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight27.55 kg
Downloads
Manufacturer documents for the Barco OverView 55-inch LCD Video Wall Display – KVD-5521D — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the KVD-5521D a 4K display?
No. The panel is Full HD at 1920 x 1080 pixels. The manufacturer lists two DisplayPort 1.2 inputs and two HDMI 2.0 inputs, and DisplayPort 1.2 cables must be used when the cable length exceeds 3 m (10 ft).
How much power does the KVD-5521D use?
The typical power consumption is 160 W at 500 nit native, on 100 to 240 V AC, 50 to 60 Hz input. That is lower than the 190 W listed at 500 nit native for the KVD-5521C.
Does the KVD-5521D support VESA wall mounts?
Yes. It uses a VESA 600 x 400 mm mounting pattern. The active screen diagonal is 55 inches (1397 mm), and the net weight is 27.55 kg, so check that the mount is rated for that load.
What temperature and humidity range does it operate in?
The operating temperature is 0 to 40 °C and operational humidity is 20% to 80%, non-condensing. Storage limits are -20 to 60 °C and 10% to 80% humidity, non-condensing. Check these ranges against the installation environment before installation.
Is the KVD-5521D suitable for a tiled video wall that needs calibration?
Yes. Sense X automatic color and brightness calibration is built in, and the manufacturer lists a 50,000-hour typical backlight lifetime. The panel also has 178-degree viewing angles, which suits walls viewed from several positions.
