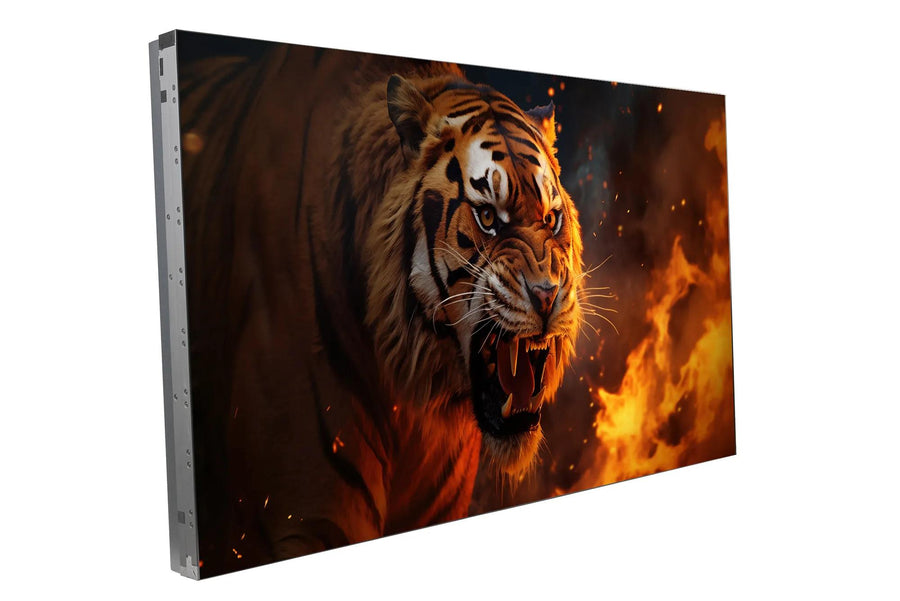

Barco OverView 55-inch LCD Video Wall Display – KVD-5521D
The Barco OverView KVD-5521D is a 55-inch Full HD LCD video wall display for entry-level and mid-range tiled walls. It offers 500 cd/m² typical brightness, a 1,200:1 typical contrast ratio and a 3.5 mm UNB bezel, with a 160 W typical power draw. Procure.ae supplies the OverView KVD-5521D across the UAE.
The KVD-5521D is cost-optimised for video walls, with Sense X automatic color and brightness calibration to keep tiles matched. Its panel has a native 10,000 K white point, 178-degree viewing angles in both directions and an 8 ms response time. The direct LED backlight has a typical lifetime of 50,000 hours, and the display is fanless with a 0 to 40 °C operating range.
The KVD-5521D fits tiled walls where lower power draw matters. It is rated at 160 W typical at 500 nit native, against 190 W at 500 nit native for the KVD-5521C. Connectivity is two DisplayPort 1.2 and two HDMI 2.0 inputs, one DisplayPort 1.2 output and one Ethernet port, with one USB port for power only. The display uses a 600 x 400 mm VESA mount and supports HDCP 2.2.
Key features
Specifications
| Key Features | Sense X automatic calibration, fanless cooling, 3.5 mm UNB bezel, HDCP 2.2, DisplayPort 1.2 and HDMI 2.0 inputs, 600 x 400 mm VESA mount |
| Model | OverView KVD-5521D |
| Type | LCD Video Wall Display |
| Aspect Ratio | 16:9 |
| Backlight | Direct LED |
| Bezel Size | 3.5 mm (UNB generation; actual 3.4 mm) |
| Brightness | 500 nits (typical) |
| Color Depth | 3 x 8-bit |
| Color Temperature | 10,000 K native white point (typical) |
| Contrast Ratio | 1,200:1 (typical) |
| Lamp Life | 50,000 hours (backlight, typical) |
| Resolution | 1920 x 1080 (Full HD) |
| Response Time | 8 ms |
| Screen Size | 55 inch |
| Viewing Angle | 178° horizontal / 178° vertical |
| Storage Conditions | -20 to 60 °C; 10% to 80% RH, non-condensing |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | DisplayPort 1.2 × 2 in, × 1 out; HDMI 2.0 × 2; Ethernet × 1; USB × 1 (power only) |
| Power Consumption | 160 W (typical, 500 nit native) |
| Dimensions | 1213 x 683.8 x 122.5 mm |
| Operating Humidity | 20% to 80% RH, non-condensing |
| Operating Temperature | 0 to 40 °C |
| VESA Mount | 600 x 400 mm |
| Weight | 27.55 kg |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
