BarcoVideo WallsSKU Enterprise-class Server R360
Barco Networked Visualization Server – Enterprise-class Server R360

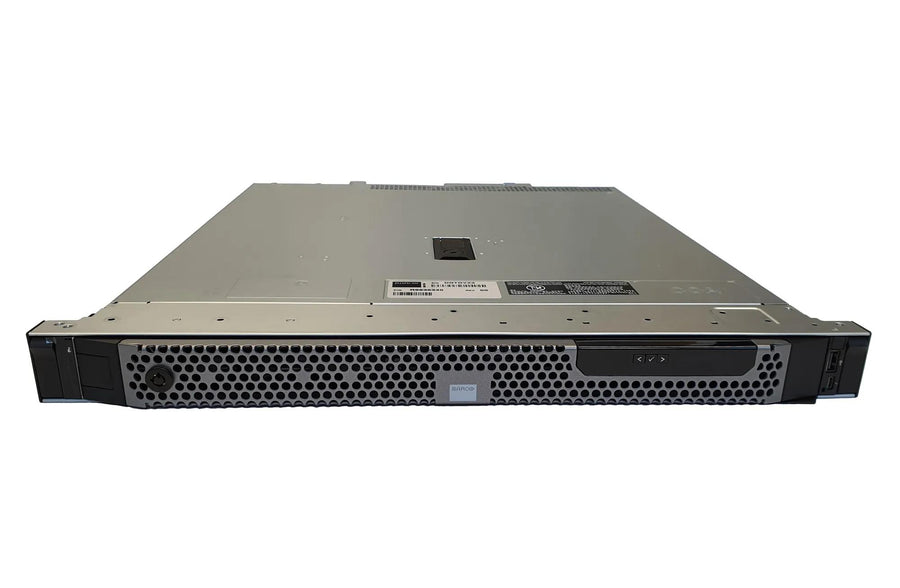

The Barco Enterprise-class Server R360 is a 1U rackmount server for Barco TransForm N networked visualization environments. It is built on an Intel Xeon E-2434 processor with 16 GB of memory, two 480 GB SSDs in hot-plug RAID-1 and redundant power supplies. Procure.ae supplies the R360 across the UAE, with delivery and installation.
The Barco Enterprise-class Server R360 handles multiple tasks in a networked visualization environment. It is built around an Intel Xeon E-2434 processor with 16 GB of memory and two 480 GB solid-state drives in hot-plug RAID-1. Redundant hot-plug power supplies rated at 2 x 600 W and RAID-1 disks add resilience, and the server connects over two 1Gb/s LAN ports. It operates from 10 to 35 °C with noise at a maximum of 40 dB(A).
The R360 is the successor to the Enterprise-class Server R350 and is described by the manufacturer as a fully qualified platform for the Barco CMS network-centric solution. It is listed as a supported system for the Barco TransForm N Management Server. Remote management uses IPMI 2.0 and SNMP through iDRAC9 Express. The 1U, 19-inch rack housing measures 482 x 42.8 x 598.9 mm.
Type
Enterprise-class Server
Weight
13.23 kg (maximum)
- Intel Xeon processor
- Redundant storage
- Redundant power
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Intel Xeon processor
Intel Xeon E-2434 with 16 GB of memory.
02
Redundant storage
Two 480 GB solid-state drives in hot-plug RAID-1.
03
Redundant power
Hot-plug redundant power supplies, 2 x 600 W.
04
Network
Two 1Gb/s LAN ports.
05
System management
IPMI 2.0 and SNMP through iDRAC9 Express.
06
Low noise
Maximum 40 dB(A).
07
Platform fit
Listed as a supported system for the Barco TransForm N Management Server.
08
Rack form factor
1U 19-inch rackmount, up to 13.23 kg.
Specifications
16 specificationsGeneral
CompatibilityTransForm N Management Server
Key Features1U 19-inch rackmount, Intel Xeon E-2434, Hot-plug RAID-1 SSDs, Redundant power supplies, IPMI 2.0 and SNMP management, TransForm N Management Server support, Maximum 40 dB(A) noise
ModelEnterprise-class Server R360
TypeEnterprise-class Server
Performance
ProcessorIntel Xeon E-2434
RAM16 GB
Storage2 × 480 GB SSD, hot-plug RAID-1
Connectivity
Ethernet2 × 1Gb/s LAN
PortsLAN 1Gb/s × 2
Power
Power Consumption2 × 600 W hot-plug redundant
Power Source100–240 V AC, 4.8–2.4 A, 50/60 Hz
Physical
Dimensions482 x 42.8 x 598.9 mm (W x H x D)
Mounting19-inch rackmount, 1U
Operating HumidityUp to 80% RH, non-condensing
Operating Temperature10 to 35 °C
Weight13.23 kg (maximum)
Downloads
Manufacturer documents for the Barco Networked Visualization Server – Enterprise-class Server R360 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Barco Enterprise-class Server R360 used for?
It is a 1U rackmount server that handles multiple tasks in a Barco networked visualization environment. The manufacturer lists the Barco TransForm N Management Server as a supported system and describes the R360 as a fully qualified platform for the Barco CMS network-centric solution.
What processor, memory and storage does the R360 have?
It has an Intel Xeon E-2434 processor, 16 GB of memory and two 480 GB solid-state drives in hot-plug RAID-1 for disk redundancy. It also has two 1Gb/s LAN ports and is rated for 10 to 35 °C, with noise at a maximum of 40 dB(A).
Is the Barco R360 redundant?
Yes. It has hot-plug redundant power supplies rated at 2 x 600 W and RAID-1 redundant disk drives, so a failed part can be replaced in the running server. It also has two 1Gb/s LAN connections.
Which systems does the R360 support?
The manufacturer lists the Barco TransForm N Management Server as the supported system. The R360 succeeds the Enterprise-class Server R350, and remote management uses IPMI 2.0 and SNMP through iDRAC9 Express.
Can I buy the Enterprise-class Server R360 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
