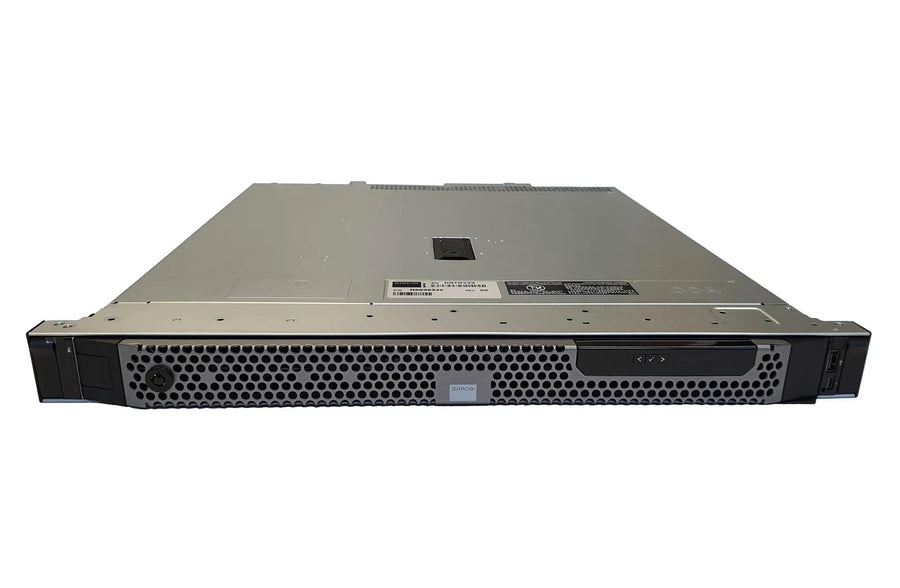

Barco Networked Visualization Server – Enterprise-class Server R360
The Barco Enterprise-class Server R360 is a 1U rackmount server for Barco TransForm N networked visualization environments. It is built on an Intel Xeon E-2434 processor with 16 GB of memory, two 480 GB SSDs in hot-plug RAID-1 and redundant power supplies. Procure.ae supplies the R360 across the UAE, with delivery and installation.
The Barco Enterprise-class Server R360 handles multiple tasks in a networked visualization environment. It is built around an Intel Xeon E-2434 processor with 16 GB of memory and two 480 GB solid-state drives in hot-plug RAID-1. Redundant hot-plug power supplies rated at 2 x 600 W and RAID-1 disks add resilience, and the server connects over two 1Gb/s LAN ports. It operates from 10 to 35 °C with noise at a maximum of 40 dB(A).
The R360 is the successor to the Enterprise-class Server R350 and is described by the manufacturer as a fully qualified platform for the Barco CMS network-centric solution. It is listed as a supported system for the Barco TransForm N Management Server. Remote management uses IPMI 2.0 and SNMP through iDRAC9 Express. The 1U, 19-inch rack housing measures 482 x 42.8 x 598.9 mm.
Key features
Specifications
| Compatibility | TransForm N Management Server |
| Key Features | 1U 19-inch rackmount, Intel Xeon E-2434, Hot-plug RAID-1 SSDs, Redundant power supplies, IPMI 2.0 and SNMP management, TransForm N Management Server support, Maximum 40 dB(A) noise |
| Model | Enterprise-class Server R360 |
| Type | Enterprise-class Server |
| Processor | Intel Xeon E-2434 |
| RAM | 16 GB |
| Storage | 2 × 480 GB SSD, hot-plug RAID-1 |
| Ethernet | 2 × 1Gb/s LAN |
| Ports | LAN 1Gb/s × 2 |
| Power Consumption | 2 × 600 W hot-plug redundant |
| Power Source | 100–240 V AC, 4.8–2.4 A, 50/60 Hz |
| Dimensions | 482 x 42.8 x 598.9 mm (W x H x D) |
| Mounting | 19-inch rackmount, 1U |
| Operating Humidity | Up to 80% RH, non-condensing |
| Operating Temperature | 10 to 35 °C |
| Weight | 13.23 kg (maximum) |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
