BarcoVideo WallsSKU SAN-050

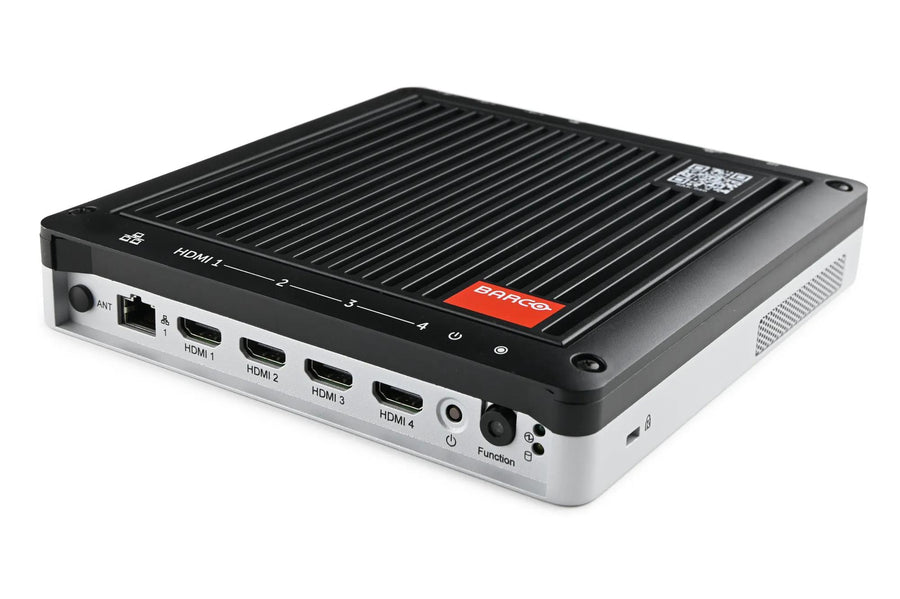

Barco CTRL Secured Applications Node – SAN-050
The Barco SAN-050 is a secured applications node for Barco CTRL networked visualization systems. It drives up to one 3840 x 2160 display or four 1920 x 1080 displays at 60 Hz, with a high-end graphics card for rendering and two Ethernet ports with active failover. Procure.ae supplies the SAN-050 across the UAE.
The SAN-050 runs in the networked visualization environment of a Barco CTRL system. Its high-end graphics card performs the rendering operations, and its HDMI 2.0 outputs carry up to one 3840 x 2160 display at 60 Hz or four 1920 x 1080 displays at 60 Hz. The unit supports an extensive list of codecs and formats, and its two 1Gb/s Ethernet ports run with active failover. Operation is silent.
The SAN-050 receives its video and interactive sources from the Barco CTRL system, while the SAS service nodes manage the system and its cybersecurity. It provides two USB 3.0 and two USB 2.0 Type A ports and a 3.5 mm stereo line-out. Its 19 V DC supply draws 25 W typical and 55 W maximum, and the unit is rated for 0 to 40 °C with humidity up to 80% non-condensing.
Resolution
Up to 3840 x 2160 at 60 Hz (1 outpu...
Type
Secured Applications Node
Weight
1.03 kg
- Up to 4K-UHD output
- Redundant network
- Graphics rendering
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Up to 4K-UHD output
One 3840 x 2160 display at 60 Hz, or four 1920 x 1080 displays at 60 Hz.
02
Redundant network
Two 1Gb/s Ethernet ports with active failover.
03
Graphics rendering
High-end graphics card for all rendering operations.
04
Codec support
An extensive list of supported codecs and formats.
05
Silent operation
Designed for quiet running in a compact housing.
06
Compact form factor
180 x 190 mm footprint, 28 mm without plastic cover.
07
USB and audio
Two USB 3.0 and two USB 2.0 Type A ports, 3.5 mm stereo line-out.
08
Barco CTRL node
Runs as a secured applications node within a Barco CTRL system.
Specifications
17 specificationsGeneral
Key FeaturesUp to 4K-UHD output, Redundant network interface, Silent operation, Compact form factor, Extensive codec support, CTRL secured applications node
ModelSAN-050
TypeSecured Applications Node
Display
Refresh Rate60 Hz
ResolutionUp to 3840 x 2160 at 60 Hz (1 output), or 4 × 1920 x 1080 at 60 Hz
Performance
GraphicsHigh-end graphics card
Audio
Audio Out3.5 mm stereo line-out
Connectivity
Ethernet2 × 1Gb/s, active failover
PortsHDMI 2.0 out (no CEC) up to 4; audio out 3.5 mm × 1; USB 3.0 Type A × 2; USB 2.0 Type A × 2; Ethernet 1Gb/s × 2
USB PortsUSB 3.0 Type A × 2, USB 2.0 Type A × 2
Power
Power Consumption25 W (typical), 55 W (maximum)
Power Source19 V DC, 3.42 A
Physical
Dimensions180 x 28 x 190 mm (W x H x D, without plastic cover)
Operating HumidityUp to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Weight1.03 kg
Compliance
CertificationsCE, CB, UL, FCC Class B, BIS, KC, CU-EAC, CCC, DoC, RCM, BSMI, UKCA, TAA
Downloads
Manufacturer documents for the Barco CTRL Secured Applications Node – SAN-050 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Barco SAN-050 used for?
The SAN-050 is a secured applications node for a Barco CTRL system. It operates in the networked visualization environment, drives displays and handles video and interactive sources, with a high-end graphics card for rendering.
How many displays can the SAN-050 drive?
It drives up to one 3840 x 2160 display at 60 Hz, or up to four 1920 x 1080 displays at 60 Hz, through HDMI 2.0 outputs with no CEC onboard. The full output list is in the Barco CTRL features and specifications document.
What network connections does the SAN-050 have?
It has two 1Gb/s Ethernet ports that run with active failover, so the node keeps its network link if one path fails. It also has two USB 3.0 and two USB 2.0 Type A ports and a 3.5 mm stereo line-out.
What power and operating conditions does the SAN-050 need?
It runs from a 19 V DC, 3.42 A supply, drawing 25 W typical and 55 W maximum. It operates from 0 to 40 °C with humidity up to 80% RH, non-condensing.
