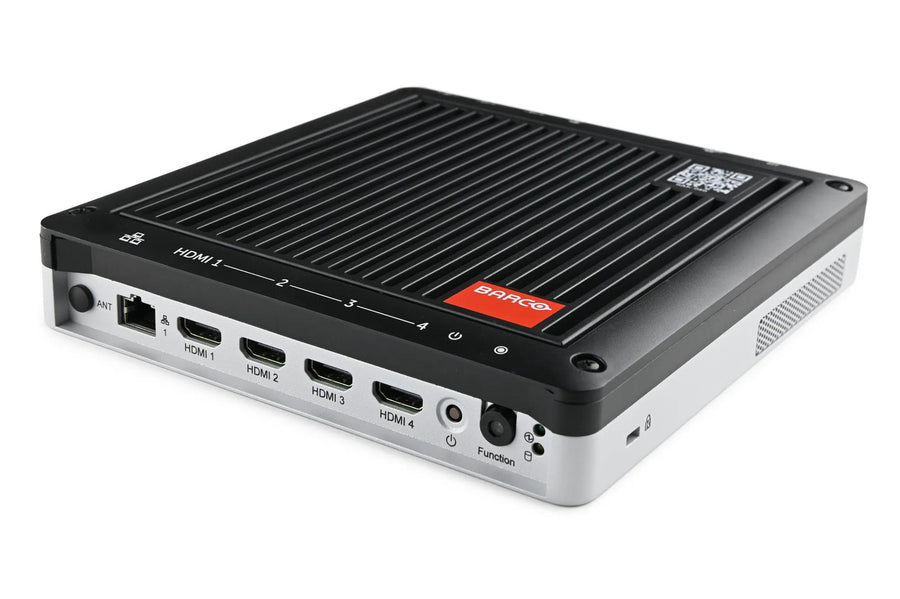

Barco CTRL Secured Applications Node – SAN-050

The Barco SAN-050 is a secured applications node for Barco CTRL networked visualization systems. It drives up to one 3840 x 2160 display or four 1920 x 1080 displays at 60 Hz, with a high-end graphics card for rendering and two Ethernet ports with active failover. Procure.ae supplies the SAN-050 across the UAE.

The SAN-050 runs in the networked visualization environment of a Barco CTRL system. Its high-end graphics card performs the rendering operations, and its HDMI 2.0 outputs carry up to one 3840 x 2160 display at 60 Hz or four 1920 x 1080 displays at 60 Hz. The unit supports an extensive list of codecs and formats, and its two 1Gb/s Ethernet ports run with active failover. Operation is silent.

The SAN-050 receives its video and interactive sources from the Barco CTRL system, while the SAS service nodes manage the system and its cybersecurity. It provides two USB 3.0 and two USB 2.0 Type A ports and a 3.5 mm stereo line-out. Its 19 V DC supply draws 25 W typical and 55 W maximum, and the unit is rated for 0 to 40 °C with humidity up to 80% non-condensing.
