BarcoMeeting Room SolutionsSKU ClickShare Hub Pro and Control Panel Kit
Barco ClickShare Video Conferencing Hub Pro Kit – Hub Pro and Control Panel Kit
The Barco ClickShare Hub Pro and Control Panel Kit is a modular wireless video conferencing kit with dual display support for hybrid meeting rooms. It includes two ClickShare Buttons for 4K sharing and a 10.1-inch touch panel for one-tap meeting start. Procure.ae, an authorised reseller, supplies the kit across the UAE with delivery and installation.
The Hub Pro base unit provides two HDMI 2.0 outputs: HDMI-1 at 5120 x 2160 (UW5K) and HDMI-2 at 3840 x 2160 (4K UHD), both at 30 Hz, with 4K UHD (3840 x 2160) video input. Two ClickShare Button 5th Gen units let participants share 4K content from the room. The 10.1-inch control panel has a projected capacitive touchscreen with 4-point multi-touch at 1280 x 800, so meetings start with a simple tap.
The kit suits integrators and IT teams who need a premium, customisable system for hybrid meetings. It is built on the Microsoft Device Ecosystem Platform (MDEP) and requires a Microsoft Teams Rooms license. The hub is managed through XMS Cloud over 1 Gbit Ethernet, with Wi-Fi on 2.4, 5 and 6 GHz and Bluetooth 5.3. The Hub Pro base unit draws up to 160 W, and the control panel is powered over USB from the base unit.
Resolution
3840 x 2160 (4K UHD) input, 5120 x ...
Brightness
300 nits (control panel)
Touch Technology
PCAP
Type
Video Conferencing Accessory
- Dual display output
- Two ClickShare Buttons
- Touch control panel
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Dual display output
Two HDMI 2.0 outputs at 5120 x 2160 (UW5K) and 3840 x 2160 (4K UHD), both at 30 Hz.
02
Two ClickShare Buttons
Two ClickShare Button 5th Gen units for 4K sharing from different points in the room.
03
Touch control panel
10.1-inch PCAP touchscreen with 4-point multi-touch and anti-glare coating.
04
Android MDEP platform
Built on the Microsoft Device Ecosystem Platform with enterprise-grade security.
05
Wireless connectivity
Wi-Fi on 2.4, 5 and 6 GHz with Bluetooth 5.3 and a 1 Gbit Ethernet port.
06
Remote management
XMS Cloud reporting and management, Kensington lock and a 3-year standard warranty.
Specifications
24 specificationsGeneral
Key FeaturesPremium modular hub, dual display output, two buttons, touch control panel, Android MDEP platform, XMS Cloud management
ModelClickShare Hub Pro and Control Panel Kit
TypeVideo Conferencing Accessory

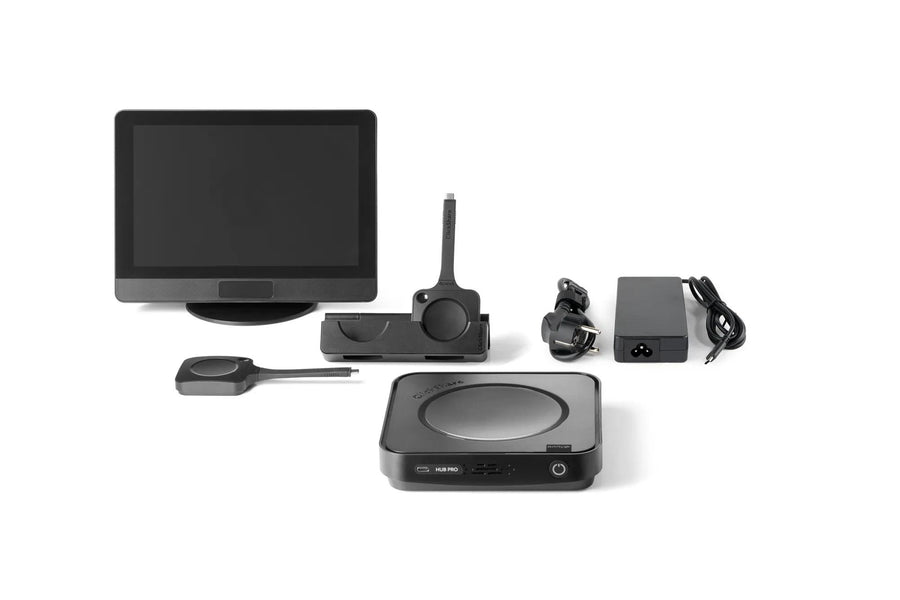

What's in the BoxHub Pro base unit, 2 ClickShare Hub Button 5th Gen, ClickShare Control Panel, 10 m USB-C AOC cable, L-shape mounting plate, round base, screw pack, USB-C cable lock kit, power cord, power supply
Display
Brightness300 nits (control panel)
Refresh Rate30 Hz (HDMI outputs)
Resolution3840 x 2160 (4K UHD) input, 5120 x 2160 (UW5K) and 3840 x 2160 (4K UHD) output
Touch Points4-point multi-touch
Touch TechnologyPCAP
Touchscreen10.1-inch PCAP, 1280 x 800, anti-fingerprint and anti-glare coating
Performance
LicenseMicrosoft Teams Rooms license required
Operating SystemAndroid (MDEP)
Connectivity
BluetoothBluetooth 5.3
ConnectivityWi-Fi, Bluetooth 5.3, 1 Gbit Ethernet, USB-C, USB-A, HDMI 2.0, DisplayPort over USB-C
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 out × 2, USB-C 2.0/3.0 × 3 (plus power input), USB-A 2.0/3.0 × 1, Ethernet 1 Gbit × 1
Wi-Fi802.11 a/b/g/n/ac/ax/be, 2.4 GHz, 5 GHz and 6 GHz
Power
Power Consumption160 W (max) hub; 7.3 W (max) control panel
Physical
Dimensions180 x 37 x 180 mm (hub); 187.9 x 254.5 x 76.9 mm (control panel)
MountingMounting disc, L-shape mounting plate and round base included
Operating Temperature0 to 40 °C
Weight720 g (hub); 820 g (control panel)
Compliance
CertificationsFCC, CE
Warranty3 years standard
Downloads
Manufacturer documents for the Barco ClickShare Video Conferencing Hub Pro Kit – Hub Pro and Control Panel Kit — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the Hub Pro kit require a Microsoft Teams Rooms license?
Yes. The manufacturer lists a Microsoft Teams Rooms license as required. The hub runs on the Android (MDEP) platform and is managed through XMS Cloud, so IT teams can deploy and monitor the kit.
Does the Hub Pro kit support two displays?
Yes. It has two HDMI 2.0 outputs, HDMI-1 at 5120 x 2160 (UW5K) and HDMI-2 at 3840 x 2160 (4K UHD), both at 30 Hz, and the kit includes two ClickShare Buttons.
What is included in the Hub Pro kit?
The box includes the Hub Pro base unit, two ClickShare Hub Button 5th Gen units, the ClickShare Control Panel, a 10 m USB-C AOC cable, mounting parts and a power supply. Procure.ae can confirm the final configuration at quote stage.
Can I buy the ClickShare Hub Pro and Control Panel Kit in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
