Barco ClickShare Video Conferencing Hub Pro Kit – Hub Pro and Control Panel Kit
The Barco ClickShare Hub Pro and Control Panel Kit is a modular wireless video conferencing kit with dual display support for hybrid meeting rooms. It includes two ClickShare Buttons for 4K sharing and a 10.1-inch touch panel for one-tap meeting start. Procure.ae, an authorised reseller, supplies the kit across the UAE with delivery and installation.
The Hub Pro base unit provides two HDMI 2.0 outputs: HDMI-1 at 5120 x 2160 (UW5K) and HDMI-2 at 3840 x 2160 (4K UHD), both at 30 Hz, with 4K UHD (3840 x 2160) video input. Two ClickShare Button 5th Gen units let participants share 4K content from the room. The 10.1-inch control panel has a projected capacitive touchscreen with 4-point multi-touch at 1280 x 800, so meetings start with a simple tap.
The kit suits integrators and IT teams who need a premium, customisable system for hybrid meetings. It is built on the Microsoft Device Ecosystem Platform (MDEP) and requires a Microsoft Teams Rooms license. The hub is managed through XMS Cloud over 1 Gbit Ethernet, with Wi-Fi on 2.4, 5 and 6 GHz and Bluetooth 5.3. The Hub Pro base unit draws up to 160 W, and the control panel is powered over USB from the base unit.
Key features
Specifications
| Key Features | Premium modular hub, dual display output, two buttons, touch control panel, Android MDEP platform, XMS Cloud management |
| Model | ClickShare Hub Pro and Control Panel Kit |
| Type | Video Conferencing Accessory |

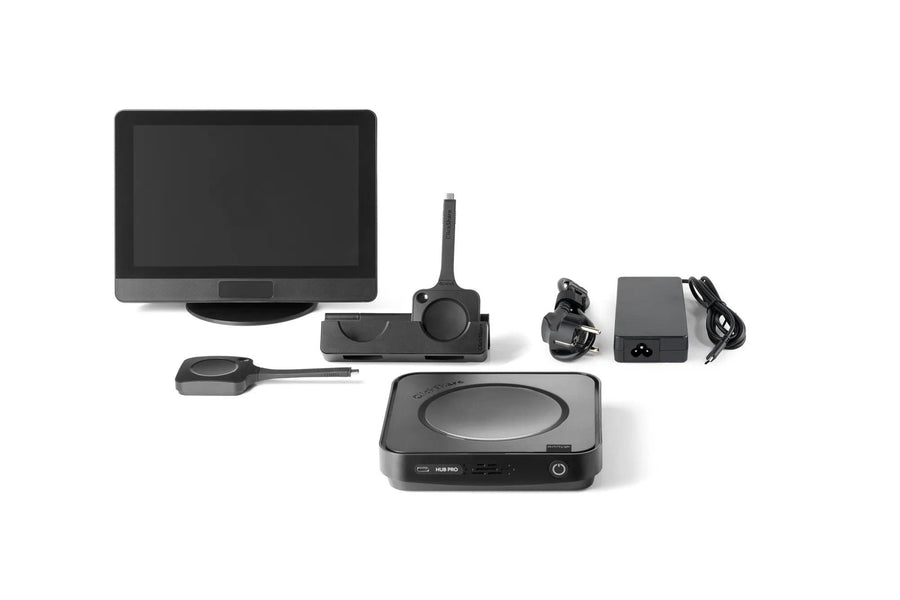

| What's in the Box | Hub Pro base unit, 2 ClickShare Hub Button 5th Gen, ClickShare Control Panel, 10 m USB-C AOC cable, L-shape mounting plate, round base, screw pack, USB-C cable lock kit, power cord, power supply |
| Brightness | 300 nits (control panel) |
| Refresh Rate | 30 Hz (HDMI outputs) |
| Resolution | 3840 x 2160 (4K UHD) input, 5120 x 2160 (UW5K) and 3840 x 2160 (4K UHD) output |
| Touch Points | 4-point multi-touch |
| Touch Technology | PCAP |
| Touchscreen | 10.1-inch PCAP, 1280 x 800, anti-fingerprint and anti-glare coating |
| License | Microsoft Teams Rooms license required |
| Operating System | Android (MDEP) |
| Bluetooth | Bluetooth 5.3 |
| Connectivity | Wi-Fi, Bluetooth 5.3, 1 Gbit Ethernet, USB-C, USB-A, HDMI 2.0, DisplayPort over USB-C |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | HDMI 2.0 out × 2, USB-C 2.0/3.0 × 3 (plus power input), USB-A 2.0/3.0 × 1, Ethernet 1 Gbit × 1 |
| Wi-Fi | 802.11 a/b/g/n/ac/ax/be, 2.4 GHz, 5 GHz and 6 GHz |
| Power Consumption | 160 W (max) hub; 7.3 W (max) control panel |
| Dimensions | 180 x 37 x 180 mm (hub); 187.9 x 254.5 x 76.9 mm (control panel) |
| Mounting | Mounting disc, L-shape mounting plate and round base included |
| Operating Temperature | 0 to 40 °C |
| Weight | 720 g (hub); 820 g (control panel) |
| Certifications | FCC, CE |
| Warranty | 3 years standard |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
