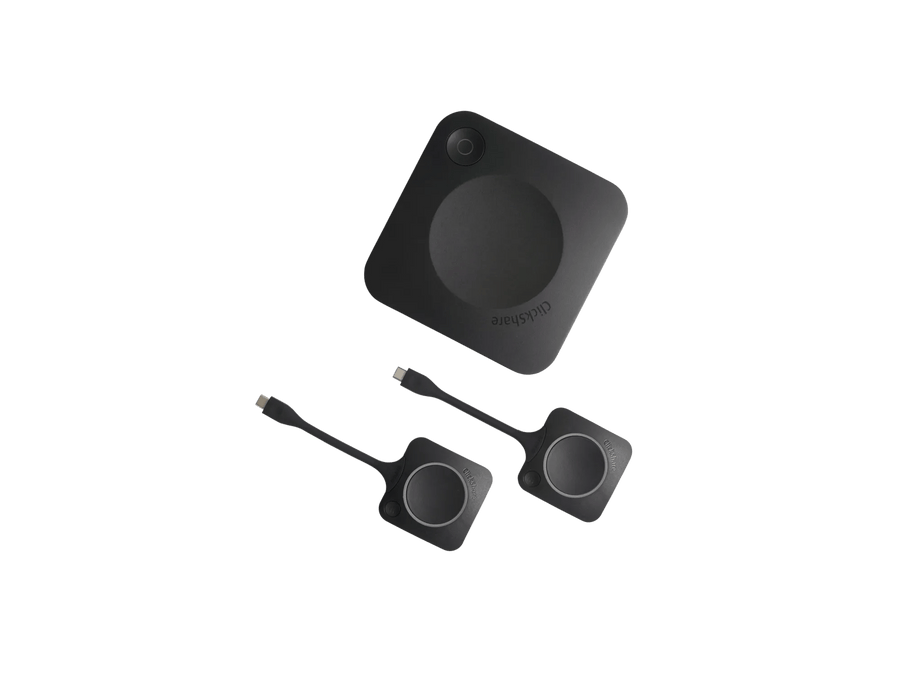

Barco ClickShare CX-30 Wireless Conferencing System – CX-30
The Barco ClickShare CX-30 is a wireless conferencing system for medium-sized meeting spaces. It outputs 4K UHD (3840 x 2160) at 30 Hz, supports touch interactivity and local view, and works with AirPlay, Google Cast and Miracast. Procure.ae supplies the Barco ClickShare CX-30 across the UAE.
The CX-30 enables wireless conferencing in medium-sized meeting spaces. It outputs 4K UHD (3840 x 2160) at 30 Hz through HDMI 1.4b, and through USB-C DisplayPort 1.2 on the Gen2 model. Participants start a meeting from a laptop within seconds, using a ClickShare Button or the ClickShare App on desktop or mobile. The unit connects over 2.4 GHz and 5 GHz Wi-Fi or a 1 Gbit Ethernet LAN connection.
The CX-30 automatically connects to room devices such as cameras, mics, speakers, sound bars and displays, according to the manufacturer. The manufacturer lists touch screen support and interactivity, and local view, which the smaller CX-20 does not list. The unit measures 135 x 135 x 34 mm, weighs 900 g and has a Kensington lock. It suits rooms that need touch interaction on the display; the CX-20 is the small-room model.
Resolution
3840 x 2160 (4K UHD) at 30 Hz
Lock Type
Kensington lock
Type
Wireless Conferencing System
Weight
900 g
- Wireless conferencing
- 4K UHD output
- Touch interactivity
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Wireless conferencing
start a meeting in one click from the ClickShare Button or the ClickShare App.
02
4K UHD output
3840 x 2160 at 30 Hz through HDMI 1.4b, or USB-C DisplayPort 1.2 on Gen2.
03
Touch interactivity
the manufacturer lists touch screen support and interactivity as available.
04
Local view
the manufacturer lists local view as supported.
05
Native casting
supports AirPlay, Google Cast and Miracast.
06
Room device connection
connects to cameras, mics, speakers, sound bars and displays.
07
Dual-band Wi-Fi
2.4 GHz and 5 GHz bands, plus 1 Gbit Ethernet LAN.
08
Warranty
1 year standard, 5 years with SmartCare registration.
Specifications
20 specificationsGeneral
Key FeaturesWireless conferencing, 4K UHD output at 30 Hz, touch screen support, local view, AirPlay, Google Cast and Miracast, Kensington lock
ModelClickShare CX-30
TypeWireless Conferencing System
Display
Resolution3840 x 2160 (4K UHD) at 30 Hz
TouchscreenTouch screen support and interactivity
Performance
Operating SystemWindows 10 and higher, macOS 11 and higher, Android 11 and higher, iOS 14 and higher (ClickShare App)
Storage Conditions-20 to 60 °C
Connectivity
ConnectivityEthernet LAN 1 Gbit, Wi-Fi, IEEE 802.15.1, USB-C, USB-A
Frequency Band2.4 GHz and 5 GHz (DFS channels in select countries)
PortsEthernet LAN 1 Gbit × 1, USB-A × 1, USB-C × 1 (front)
ProtocolsAirPlay, Google Cast, Miracast
Wi-Fi802.11 a/g/n/ac, 2.4 GHz and 5 GHz
Power
Power Consumption5 to 10 W operational, 24 W max
Power Source110/220 V AC plug or USB-C (Gen2)
Physical
Dimensions135 x 135 x 34 mm
Lock TypeKensington lock
Operating Temperature0 to 40 °C
Weight900 g
Compliance
CertificationsFCC, CE
Warranty1 year standard; 5 years with SmartCare registration
Downloads
Manufacturer documents for the Barco ClickShare CX-30 Wireless Conferencing System – CX-30 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Barco ClickShare CX-30 used for?
It is a wireless video conferencing system for medium-sized meeting spaces. Participants share from a laptop with a ClickShare Button or the ClickShare App, and the unit connects to room cameras, mics, speakers and displays.
How does the CX-30 differ from the CX-20?
The manufacturer positions the CX-30 for medium-sized rooms, and lists touch screen support, interactivity and local view, which the CX-20 does not list. Both models output 4K UHD at 30 Hz.
Does the CX-30 support touch interaction?
Yes. According to the manufacturer, the CX-30 supports touch screen interactivity and lists full local view, while the CX-20 lists local view of the room display only. Confirm the touch-enabled display you plan to use with Procure.ae before you order.
Can guests share content in the room?
Yes. Guests can share with the ClickShare Button or the ClickShare App, which the manufacturer describes as available for both employees and guests. The unit also accepts AirPlay, Google Cast and Miracast connections from phones and laptops.
Does the CX-30 support Wi-Fi and Ethernet?
Yes. It supports LAN and Wi-Fi network connections on 2.4 GHz and 5 GHz bands, with DFS channels in select countries, and it has a 1 Gbit Ethernet LAN port. The manufacturer also lists management and reporting as supported.
