YealinkMeeting Room SolutionsSKU CP50

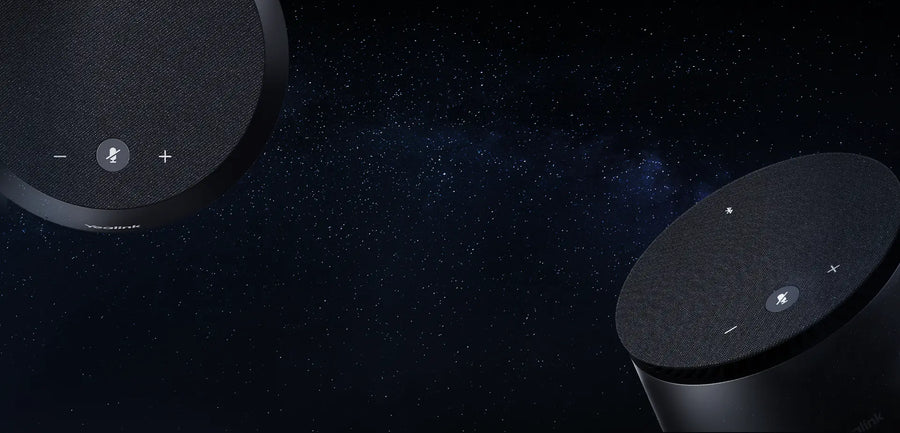

Yealink CP Series Omnidirectional Conference Microphone – CP50
The Yealink CP50 is an omnidirectional conference microphone with a 6 m pickup distance. It has a codec port for UVC cameras and VC main units, an audio port for CPE40 extension microphones and a USB Type-C port for computers. Procure.ae supplies the Yealink CP50 across the UAE.
The CP50 picks up voices omnidirectionally within a 6 m pickup distance. Its signal-to-noise ratio is 71.8 dB at 1 kHz (A-weighted), and its maximum sound pressure level is 122 dB SPL at 1 kHz with THD under 1%. Average power consumption is 7.2 W. Its codec port connects to UVC cameras such as the UVC85 or to VC main units such as the MeetingEye 500, its audio port connects to a CPE40 extension microphone, and its Type-C port connects to a computer. The operating temperature range is 0 to 40 °C.
Use the CP50 in a video conferencing setup, with CPE40 extension microphones chained from its audio port to add microphones to the room. It is powered by a DC 48 V adapter (DC48V/0.7A or DC48V/2A), because PoE and USB external power are not supported. Its dimensions are 151.8 x 151.8 x 75.3 mm. Procure.ae can advise on the room layout and cabling before installation.
Type
Omnidirectional Conference Microphone
- Omnidirectional pickup
- Codec port
- Audio port
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Omnidirectional pickup
Picks up voices omnidirectionally within a 6 m pickup distance.
02
Codec port
Connects to UVC cameras such as the UVC85 or VC main units such as the MeetingEye 500.
03
Audio port
Connects to the CPE40 extension microphone.
04
USB Type-C port
Connects the microphone to a computer.
05
Signal-to-noise ratio
71.8 dB at 1 kHz, A-weighted.
06
Maximum level
122 dB SPL at 1 kHz with THD under 1%.
07
Power
DC 48 V adapter (DC48V/0.7A or DC48V/2A); PoE and USB power not supported.
08
Operating range
0 to 40 °C and 10% to 95% humidity, non-condensing.
Specifications
15 specificationsGeneral
CompatibilityUVC cameras (e.g. UVC85), VC main units (e.g. MeetingEye 500), CPE40
Key FeaturesOmnidirectional pickup, 6 m pickup distance, codec port, audio port for CPE40, USB Type-C, DC 48 V power
ModelCP50
TypeOmnidirectional Conference Microphone
Performance
Storage Conditions-30 to 70 °C
Audio
Max SPL122 dB SPL (at 1 kHz, THD <1%)
Pickup Range6 m
Polar PatternOmnidirectional
Signal-to-Noise Ratio71.8 dB (1 kHz, A-weighted)
Connectivity
PortsCodec port × 1, Audio port × 1, USB Type-C × 1
Power
Power Consumption7.2 W (average)
Power SourceDC 48 V, 0.7 A or 2 A adapter; PoE not supported
Physical
Dimensions151.8 x 151.8 x 75.3 mm
Operating Humidity10% to 95% (non-condensing)
Operating Temperature0 to 40 °C
Downloads
Manufacturer documents for the Yealink CP Series Omnidirectional Conference Microphone – CP50 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the CP50 connect to a computer?
Yes. The CP50 has a USB Type-C port for connecting to a computer. Its codec port connects to UVC cameras such as the UVC85 or VC main units such as the MeetingEye 500, and its audio port connects to the CPE40 extension microphone.
Can the CP50 be powered over PoE?
No. The manufacturer's specifications state that PoE is not supported, and USB external power is also not supported. Power the CP50 with the DC 48 V adapter (DC48V/0.7A or DC48V/2A).
Can I add CPE40 microphones to the CP50?
Yes. The CP50 audio port connects to a CPE40 extension microphone, and CPE40 units chain together through their own codec and audio ports. Confirm the chain length and cabling with Procure.ae before installation.
Is the CP50 compatible with the MeetingEye 500?
Yes. The manufacturer lists the MeetingEye 500 as an example of a VC main unit that the CP50 codec port connects to. Confirm the full compatibility list with Procure.ae before ordering.
What room size does the CP50 suit?
The CP50 has a 6 m pickup distance. The manufacturer's specifications do not state a maximum room size, so Procure.ae can advise on whether the CP50 or added CPE40 microphones suit your room.
Can I buy the CP50 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
