YealinkMeeting Room SolutionsSKU AP08

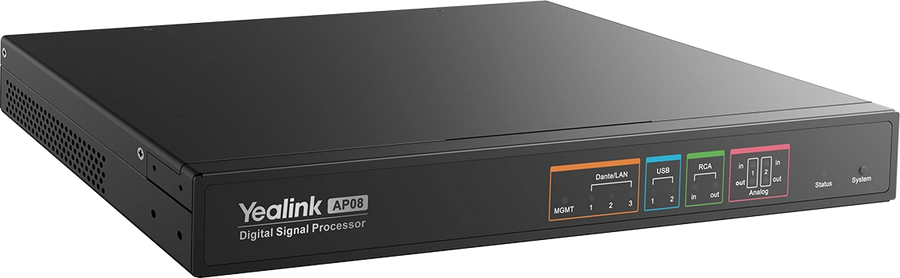

Yealink AP08 16x16 Dante Audio DSP – AP08
The Yealink AP08 is a Dante audio DSP with 16x16 Dante channels and 8 echo-cancelled input channels for meeting audio. It suits medium and large rooms that run conference audio on a Dante network. Phantom power of +48 V DC is built in, and an RJ-45 API port allows control. Procure.ae supplies the AP08 across the UAE.
The AP08 provides 16 Dante input channels and 16 Dante output channels, with 8 of those channels supporting acoustic echo cancellation (AEC). Dynamic AEC and noise cancellation are built in for meeting audio. The dynamic range is 96 dB for inputs and 98 dB for outputs. It also has 2 USB inputs and 2 USB outputs, and three Dante network ports for networked audio routing.
The AP08 fits medium and large rooms that need networked audio processing and room control. It has an RJ-45 port for API control, an RS232 port and 8 GPIO outputs, along with analog inputs with 12-bit conversion. It operates from 0 to 40 °C at 0% to 93% RH and weighs 2.2 kg. Yealink describes integration with Yealink Room Designer for planning the room.
Type
Dante Audio DSP
Weight
2.2 kg
- 16x16 Dante Channels
- Acoustic Echo Cancellation
- Noise Cancellation
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
16x16 Dante Channels
16 Dante input and 16 Dante output channels.
02
Acoustic Echo Cancellation
8 AEC input channels with dynamic AEC.
03
Noise Cancellation
Noise cancellation for meeting audio.
04
Phantom Power
+48 V DC, 10 mA max.
05
USB Audio
2 USB inputs and 2 USB outputs.
06
Control Ports
RJ-45 API control, RS232 and 8 GPIO outputs.
07
Dante Network
Three Dante LAN ports for networked audio.
08
PoE+ Power
Powered by PoE+ as described by the manufacturer.
Specifications
15 specificationsGeneral
Key Features16x16 Dante channels, 8 AEC input channels, dynamic AEC, noise cancellation, PoE+ power, Yealink Room Designer integration
ModelAP08
TypeDante Audio DSP
Performance
Storage Conditions-30 to 70 °C
Audio
Channels16 x 16 Dante (8 AEC input channels)
Dynamic RangeInput 96 dB, output 98 dB
Phantom Power+48 V DC, 10 mA max
Connectivity
PortsDante LAN × 3, USB input × 2, USB output × 2, RJ-45 MGMT × 1, RS232 × 1, GPIO × 8
Power
Power SourcePoE+
Physical
ColorAdvanced Black
Dimensions360 x 189 x 44 mm (L x W x H)
MaterialSGCC
Operating Humidity0% to 93% RH
Operating Temperature0 to 40 °C
Weight2.2 kg
Downloads
Manufacturer documents for the Yealink AP08 16x16 Dante Audio DSP – AP08 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the AP08 suitable for Dante-based conference audio?
Yes. The AP08 has 16 Dante input and 16 Dante output channels, with three Dante LAN ports for networked audio. That layout suits conference audio systems that route sound across a Dante network rather than through point-to-point cabling.
How many echo-cancelled channels does the AP08 have?
Eight of its 16 Dante input channels are AEC channels, and the AP08 uses dynamic AEC. Noise cancellation is also built in, which helps keep the meeting audio clear when several microphones are active in the room.
Does the AP08 support PoE?
Yes. Yealink describes the AP08 as offering PoE+ power. The manufacturer's specifications do not give a separate power consumption figure, so please confirm the power budget for your switch when you request a quote.
Can the AP08 be controlled from a room system?
Yes. The AP08 has an RJ-45 port for API control, an RS232 port and 8 GPIO outputs. Those control ports allow integration with room control and automation, so the unit can respond to commands from the wider room system.
What operating and storage conditions apply to the AP08?
The AP08 operates between 0 and 40 °C at 0% to 93% relative humidity. Yealink lists storage between -30 and 70 °C, which allows the unit to be kept in a store room or equipment cabinet between installations.
Can I buy the AP08 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
