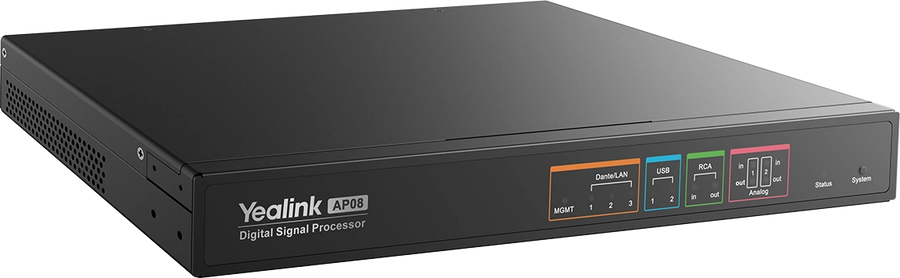

Yealink AP08 16x16 Dante Audio DSP – AP08

The Yealink AP08 is a Dante audio DSP with 16x16 Dante channels and 8 echo-cancelled input channels for meeting audio. It suits medium and large rooms that run conference audio on a Dante network. Phantom power of +48 V DC is built in, and an RJ-45 API port allows control. Procure.ae supplies the AP08 across the UAE.

The AP08 provides 16 Dante input channels and 16 Dante output channels, with 8 of those channels supporting acoustic echo cancellation (AEC). Dynamic AEC and noise cancellation are built in for meeting audio. The dynamic range is 96 dB for inputs and 98 dB for outputs. It also has 2 USB inputs and 2 USB outputs, and three Dante network ports for networked audio routing.

The AP08 fits medium and large rooms that need networked audio processing and room control. It has an RJ-45 port for API control, an RS232 port and 8 GPIO outputs, along with analog inputs with 12-bit conversion. It operates from 0 to 40 °C at 0% to 93% RH and weighs 2.2 kg. Yealink describes integration with Yealink Room Designer for planning the room.
