ViewSonicMeeting Room SolutionsSKU VB-WMK-001

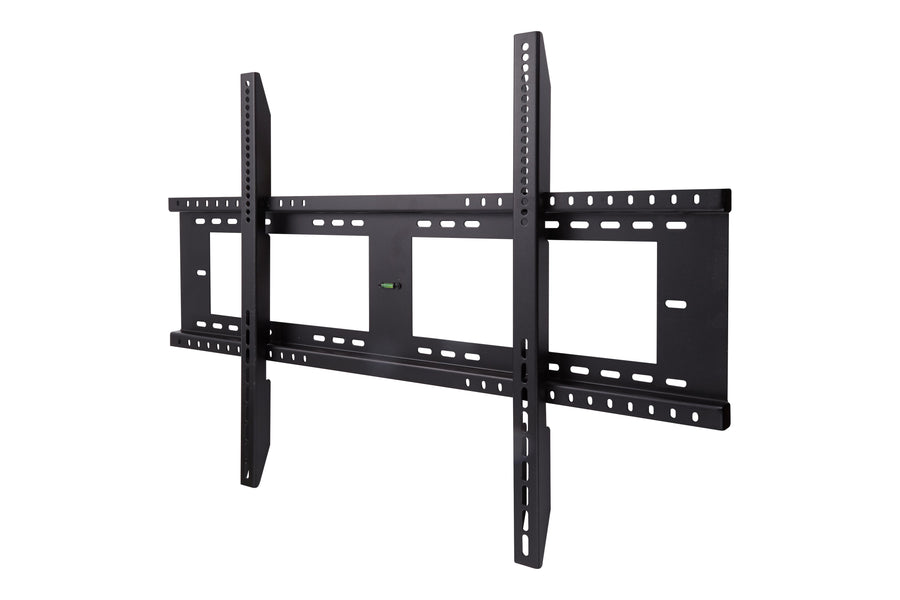

ViewSonic Wall Mount for Flat Panel Displays – VB-WMK-001
The ViewSonic VB-WMK-001 is a wall mount for flat panel displays from 55 to 84 inches. It has a 46 mm profile, a 125 kg load capacity and a secure locking screw. Procure.ae, an authorised ViewSonic reseller, supplies it across the UAE.
The VB-WMK-001 is designed to mount 55-inch to 84-inch flat panel displays. Its 46 mm thin profile keeps the panel close to the wall, and it carries a load of up to 125 kg. The mount measures 960 mm wide, 650 mm high and 46 mm deep. A secure locking screw holds the display on the mount. The manufacturer describes a patented universal design, and the mount has a durable powder-coated finish.
The mount suits meeting rooms, classrooms and training rooms where a display is fixed to a wall. It accepts mounting patterns up to 900 x 600 mm. Compared with the VB-WMK-003, which covers displays up to 105 inches and 150 kg, the VB-WMK-001 is rated for smaller panels up to 84 inches and 125 kg. Procure.ae supplies the mount across the UAE, with delivery and installation.
Lock Type
Secure locking screw
Type
Wall Mount
Weight
5.2 kg
- Thin profile
- Secure locking
- Universal design
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Thin profile
A 46 mm profile keeps the panel close to the wall.
02
Secure locking
A locking screw secures the display to the mount.
03
Universal design
Patented universal design, as described by the manufacturer.
04
Load capacity
Carries up to 125 kg.
05
Durable finish
Powder-coated finish.
Specifications
13 specificationsGeneral
Key Features46 mm thin profile, Secure locking screw, Patented universal design, Up to 125 kg load, Powder-coated finish, 55 to 84 inch panels
ModelVB-WMK-001
TypeWall Mount
Display
Supported Screen Sizes55 inch to 84 inch
Physical
Dimensions960 x 650 x 46 mm (W x H x D)
FinishPowder-coated
Load Capacity125 kg max.
Lock TypeSecure locking screw
MountingWall mount
Shipping Dimensions1000 x 280 x 55 mm
Shipping Weight6.2 kg
VESA MountUp to 900 x 600 mm
Weight5.2 kg
Downloads
Manufacturer documents for the ViewSonic Wall Mount for Flat Panel Displays – VB-WMK-001 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the VB-WMK-001 fit a 65-inch display?
Yes. The manufacturer states the mount is designed for 55-inch to 84-inch flat panel displays, so a 65-inch display is within that range. Check the display's weight against the mount's 125 kg rating before fitting.
How much weight can the VB-WMK-001 hold?
The VB-WMK-001 has a load capacity of up to 125 kg, according to the manufacturer. Confirm the display's weight, including any attached accessories, before ordering the mount. Bulk, project and tender pricing is available for multi-unit orders.
What mounting pattern does the VB-WMK-001 support?
The VB-WMK-001 supports mounting patterns up to 900 x 600 mm. The manufacturer's specifications do not state the hole layout, so confirm the display's rear pattern fits within that size before ordering.
