ViewSonicMeeting Room SolutionsSKU VB-WIFI-006

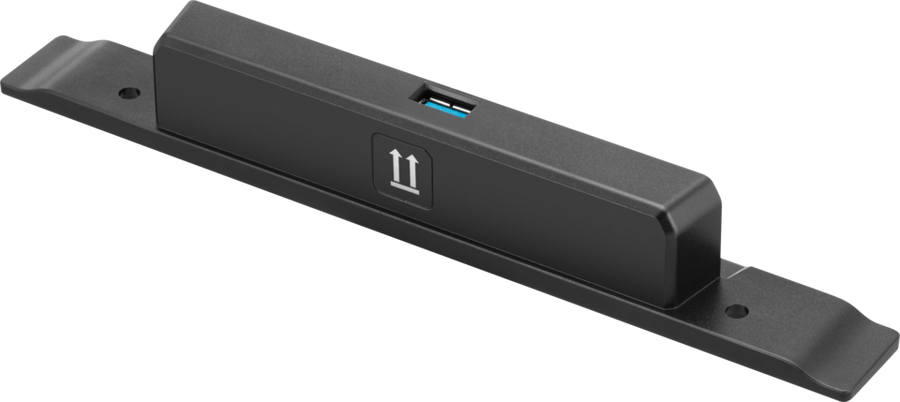

ViewSonic ViewBoard Wi-Fi 6E Tri-Band Wireless Module – VB-WIFI-006
The ViewSonic VB-WIFI-006 is a Wi-Fi 6E (802.11ax) wireless module for selected ViewBoard and Presentation Display models. It supports tri-band 2.4 GHz, 5 GHz and 6 GHz Wi-Fi plus Bluetooth, and consumes less than 5 W. Procure.ae supplies the ViewSonic VB-WIFI-006 across the UAE.
The VB-WIFI-006 connects a supported display to wireless networks across three bands: 2.4 GHz, 5 GHz and 6 GHz. It uses the Wi-Fi 6E (802.11ax) standard for high-bandwidth use such as video streaming, videoconferencing and voice calls. Bluetooth 2.1, 3.0, 4.0 and 5.3 (BLE) is supported. Power is 5 V DC at 1 A with consumption below 5 W. The module weighs 93 g net and is rated for 0 to 40 °C operation and -20 to 60 °C storage.
Choose the VB-WIFI-006 when a site needs the 6 GHz band or Bluetooth alongside dual-band Wi-Fi. The manufacturer notes that the 6 GHz band varies with national regulations, so confirm band availability for your country before deployment. Compared with the VB-WIFI-001, VB-WIFI-004 and VB-WIFI-005, this model adds 6 GHz and Bluetooth. Procure.ae confirms compatible models and arranges installation across the UAE.
Type
Wi-Fi Module
Weight
93 g
- Tri-band Wi-Fi
- Wi-Fi 6E standard
- Bluetooth support
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Tri-band Wi-Fi
operates on 2.4 GHz, 5 GHz and 6 GHz bands.
02
Wi-Fi 6E standard
uses 802.11ax for wireless internet access.
03
Bluetooth support
supports Bluetooth 2.1, 3.0, 4.0 and 5.3 (BLE).
04
Power rating
runs on 5 V DC at 1 A and consumes less than 5 W.
05
Operating range
rated for 0 to 40 °C and 10% to 90% non-condensing humidity.
06
Storage range
stores at -20 to 60 °C with 10% to 90% non-condensing humidity.
Specifications
13 specificationsGeneral
CompatibilitySelected ViewBoard and Presentation Display models
Key FeaturesWi-Fi 6E (802.11ax), tri-band 2.4 / 5 / 6 GHz, Bluetooth 2.1 to 5.3 (BLE), 5 V DC 1 A, under 5 W, selected ViewBoard and Presentation Display models
ModelVB-WIFI-006
TypeWi-Fi Module
Performance
Storage Conditions-20 to 60 °C, 10% to 90% RH (non-condensing)
Connectivity
BluetoothBluetooth 2.1, 3.0, 4.0 and 5.3 (BLE)
Frequency Band2.4 GHz / 5 GHz / 6 GHz
Input Voltage5 V DC, 1 A
Wi-FiWi-Fi 6E (802.11ax), tri-band 2.4 GHz / 5 GHz / 6 GHz
Power
Power ConsumptionLess than 5 W
Physical
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0 to 40 °C
Weight93 g
Downloads
Manufacturer documents for the ViewSonic ViewBoard Wi-Fi 6E Tri-Band Wireless Module – VB-WIFI-006 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the VB-WIFI-006 support the 6 GHz band?
Yes. The VB-WIFI-006 supports 2.4 GHz, 5 GHz and 6 GHz bands with Wi-Fi 6E (802.11ax). The manufacturer notes that 6 GHz availability varies with national regulations, so check the rules in your country before deployment.
Which displays are compatible with the VB-WIFI-006?
The module is listed for ViewBoard and Presentation Display models, but only selected models are compatible. The manufacturer's specifications do not publish a full model list, so Procure.ae can confirm your display before you place an order.
Does the VB-WIFI-006 include Bluetooth?
Yes. The module supports Bluetooth 2.1, 3.0, 4.0 and 5.3 (BLE) alongside its Wi-Fi 6E connection. It runs on 5 V DC at 1 A and consumes less than 5 W, with a net weight of 93 g.
