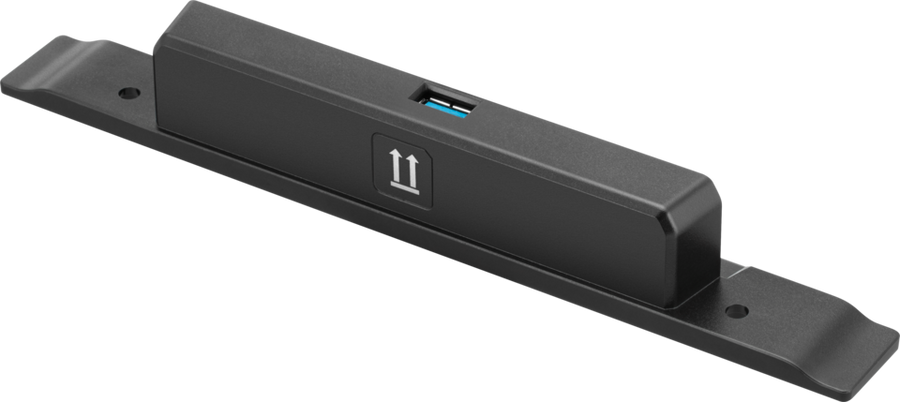

ViewSonic ViewBoard Wi-Fi 6E Tri-Band Wireless Module – VB-WIFI-006

The ViewSonic VB-WIFI-006 is a Wi-Fi 6E (802.11ax) wireless module for selected ViewBoard and Presentation Display models. It supports tri-band 2.4 GHz, 5 GHz and 6 GHz Wi-Fi plus Bluetooth, and consumes less than 5 W. Procure.ae supplies the ViewSonic VB-WIFI-006 across the UAE.

The VB-WIFI-006 connects a supported display to wireless networks across three bands: 2.4 GHz, 5 GHz and 6 GHz. It uses the Wi-Fi 6E (802.11ax) standard for high-bandwidth use such as video streaming, videoconferencing and voice calls. Bluetooth 2.1, 3.0, 4.0 and 5.3 (BLE) is supported. Power is 5 V DC at 1 A with consumption below 5 W. The module weighs 93 g net and is rated for 0 to 40 °C operation and -20 to 60 °C storage.

Choose the VB-WIFI-006 when a site needs the 6 GHz band or Bluetooth alongside dual-band Wi-Fi. The manufacturer notes that the 6 GHz band varies with national regulations, so confirm band availability for your country before deployment. Compared with the VB-WIFI-001, VB-WIFI-004 and VB-WIFI-005, this model adds 6 GHz and Bluetooth. Procure.ae confirms compatible models and arranges installation across the UAE.

Type

Wi-Fi Module

Weight

93 g

Key features

Tri-band Wi-Fi

operates on 2.4 GHz, 5 GHz and 6 GHz bands.

Wi-Fi 6E standard

uses 802.11ax for wireless internet access.

Bluetooth support

supports Bluetooth 2.1, 3.0, 4.0 and 5.3 (BLE).

Power rating

runs on 5 V DC at 1 A and consumes less than 5 W.

Operating range

rated for 0 to 40 °C and 10% to 90% non-condensing humidity.

Storage range

stores at -20 to 60 °C with 10% to 90% non-condensing humidity.

Specifications

General
Compatibility	Selected ViewBoard and Presentation Display models
Key Features	Wi-Fi 6E (802.11ax), tri-band 2.4 / 5 / 6 GHz, Bluetooth 2.1 to 5.3 (BLE), 5 V DC 1 A, under 5 W, selected ViewBoard and Presentation Display models
Model	VB-WIFI-006
Type	Wi-Fi Module

Performance
Storage Conditions	-20 to 60 °C, 10% to 90% RH (non-condensing)

Connectivity
Bluetooth	Bluetooth 2.1, 3.0, 4.0 and 5.3 (BLE)
Frequency Band	2.4 GHz / 5 GHz / 6 GHz
Input Voltage	5 V DC, 1 A
Wi-Fi	Wi-Fi 6E (802.11ax), tri-band 2.4 GHz / 5 GHz / 6 GHz

Power
Power Consumption	Less than 5 W

Physical
Operating Humidity	10% to 90% RH (non-condensing)
Operating Temperature	0 to 40 °C
Weight	93 g
