ViewSonicMeeting Room SolutionsSKU VPCF5-W33-G1-2A

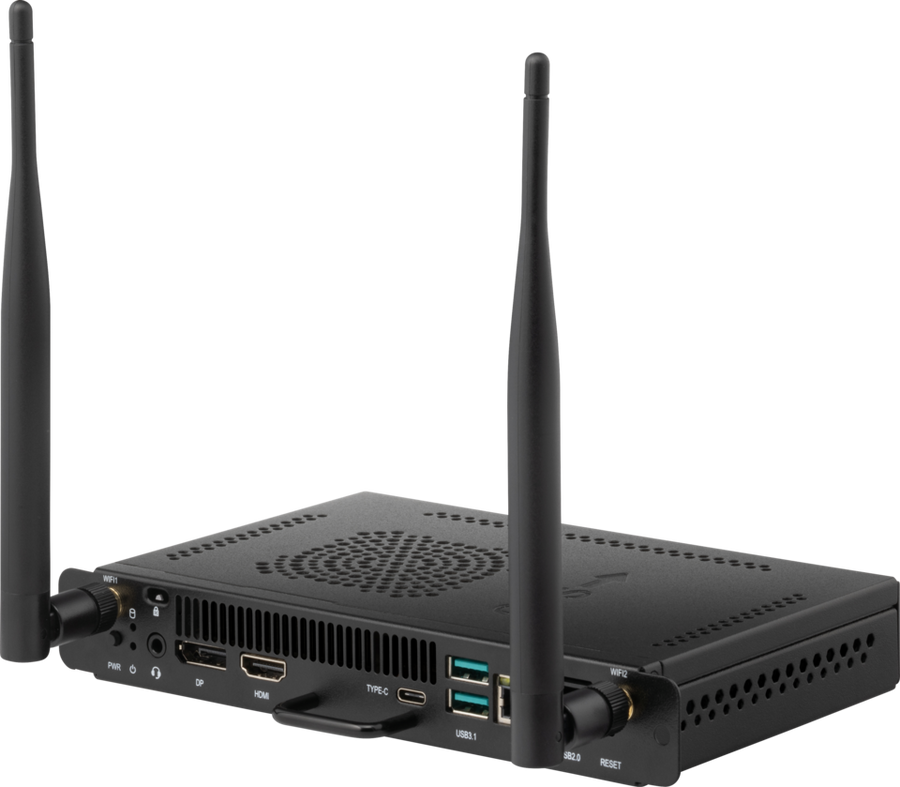

ViewSonic ViewBoard OPS Slot-in PC – VPCF5-W33-G1-2A
The ViewSonic VPCF5-W33-G1-2A is an OPS slot-in PC that runs Windows 11 Pro on an Intel 12th Gen Core i5 or later processor. It provides 8 GB of memory, a 256 GB M.2 SSD, Wi-Fi 6 and Bluetooth 5.2 for ViewBoard displays. Procure.ae, an authorised reseller, supplies it across the UAE for schools, offices and government.
The VPCF5-W33-G1-2A pairs an Intel 12th Gen Core i5 or later processor with Intel Iris Xe graphics and 8 GB of DDR4 memory. Its 256 GB M.2 PCIe SSD holds the operating system and installed applications. The 80-pin OPS connector carries HDMI 2.0 at 4K and 60 Hz, DisplayPort at 5K and 60 Hz, one USB 3.0 port, two USB 2.0 ports and DC 12-19 V power. DisplayPort output supports up to 8K at 30 Hz. Dual-band Wi-Fi 6, Bluetooth 5.2 and a 10/100/1000 Mbps RJ45 port cover network connections.
Choose this model when a ViewBoard display needs a built-in Windows 11 Pro computer with a 12th Gen processor and an 80-pin OPS connector. Its power input is 19 V DC at 4.74 A, which differs from the 12 to 19 V, 8 A rating of the VPCF5-W33-G1, so confirm the power requirement for your display before installation. The rated operating range is 0 to 40 °C at 20% to 80% RH, non-condensing.
Type
OPS Slot-in PC
Weight
0.7 kg
- Windows 11 Pro
- Memory and storage
- 80-pin OPS connector
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Windows 11 Pro
Runs Windows 11 Pro on an Intel 12th Gen Core i5 or later processor.
02
Memory and storage
Provides 8 GB of DDR4 memory and a 256 GB M.2 PCIe SSD for everyday classroom and meeting software.
03
80-pin OPS connector
Carries HDMI 2.0 at 4K 60 Hz, DisplayPort at 5K 60 Hz, USB 3.0 and USB 2.0 ports, and DC 12-19 V power.
04
Wi-Fi 6 and Bluetooth 5.2
Dual-band 802.11ax Wi-Fi 6 with Bluetooth 5.2 through an Intel wireless module.
05
Gigabit RJ45 port
One RJ45 port for wired networking at 10/100/1000 Mbps.
06
USB and audio connections
Two USB 3.1 Type-A ports, one USB 3.1 Gen 2 Type-C data port and a combined mic and line-out jack.
07
Compact chassis
Measures 200 x 119 x 30 mm and weighs 0.7 kg for installation behind a compatible display.
Specifications
22 specificationsGeneral
Key FeaturesIntel 12th Gen processor, 8 GB RAM, 256 GB SSD, Wi-Fi 6, Bluetooth 5.2, 80-pin OPS connector, Windows 11 Pro
ModelVPCF5-W33-G1-2A
TypeOPS Slot-in PC
What's in the BoxQuick start guide, 2 screws, 2 antennas
Performance
GraphicsIntel Iris Xe Graphics; DisplayPort up to 8K at 30 Hz, HDMI up to 3840 x 2160 at 30 Hz
Operating SystemWindows 11 Pro
ProcessorIntel 12th Gen Core i5 or later
RAM8 GB
Storage256 GB M.2 SSD (PCIe)
Audio
AudioMIC-in and line-out combo connector
Connectivity
BluetoothBluetooth 5.2
EthernetRJ45 10/100/1000 Mbps x 1
Input VoltageDC 19 V, 4.74 A
OPS Slot80-pin OPS: HDMI 2.0 4K at 60 Hz, DP 5K at 60 Hz, USB 3.0 x 1, USB 2.0 x 2, DC 12-19 V
USB PortsUSB 3.1 x 2, USB 2.0 x 2
USB-C PortsUSB 3.1 Gen 2 x 1 (data only)
Wi-FiWi-Fi 6 (802.11ax)
Power
Power Consumption90 W (max)
Physical
Dimensions200 x 119 x 30 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Weight0.7 kg
Downloads
Manufacturer documents for the ViewSonic ViewBoard OPS Slot-in PC – VPCF5-W33-G1-2A — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What operating system does the VPCF5-W33-G1-2A run?
It runs Windows 11 Pro on an Intel 12th Gen Core i5 or later processor with Intel Iris Xe graphics. Whiteboard and collaboration software installed on the PC can run directly on the ViewBoard display without a separate laptop.
How much memory and storage does it have?
It has 8 GB of DDR4 memory and a 256 GB M.2 PCIe SSD. The VPCF5-W55-G1-2A is the higher-capacity option with 16 GB of memory and 512 GB of storage for larger software installations.
Will it work with my ViewBoard display?
It is designed to connect to ViewBoard interactive and presentation displays through its 80-pin OPS connector. Confirm that your display has a matching OPS slot and power supply before ordering, and Procure.ae can check compatibility for your model.
Does it connect to a network?
Yes. It includes dual-band Wi-Fi 6 with Bluetooth 5.2 and a 10/100/1000 Mbps RJ45 port for wired connections. The OPS connector also carries HDMI, DisplayPort and USB signals to the display.
