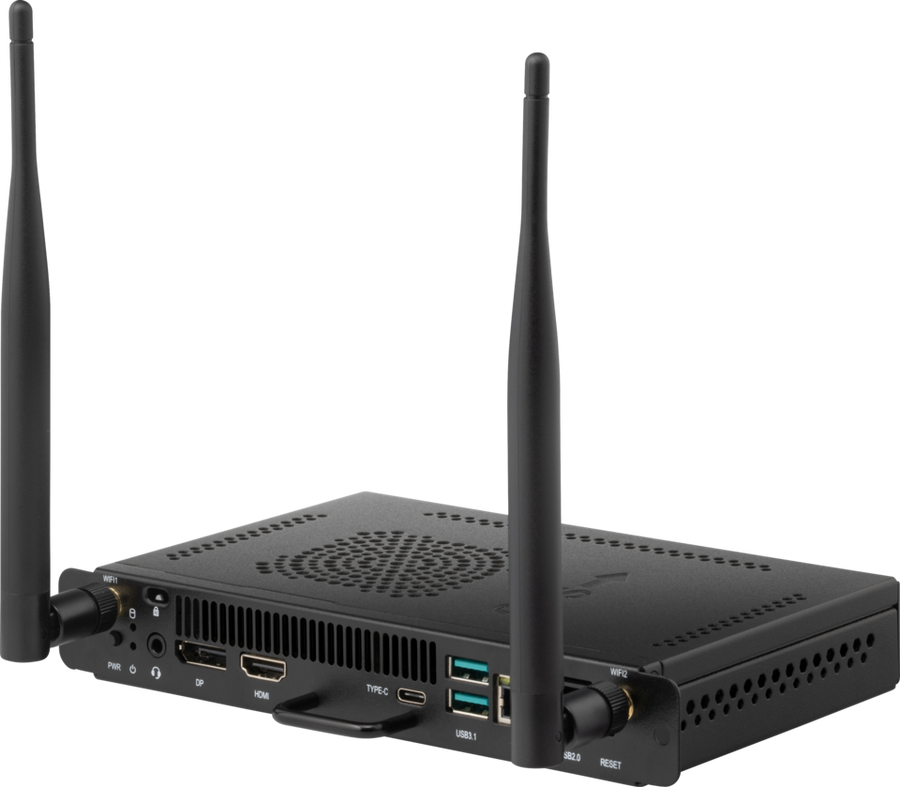

ViewSonic ViewBoard OPS Slot-in PC – VPCF5-W33-G1-2A

The ViewSonic VPCF5-W33-G1-2A is an OPS slot-in PC that runs Windows 11 Pro on an Intel 12th Gen Core i5 or later processor. It provides 8 GB of memory, a 256 GB M.2 SSD, Wi-Fi 6 and Bluetooth 5.2 for ViewBoard displays. Procure.ae, an authorised reseller, supplies it across the UAE for schools, offices and government.

The VPCF5-W33-G1-2A pairs an Intel 12th Gen Core i5 or later processor with Intel Iris Xe graphics and 8 GB of DDR4 memory. Its 256 GB M.2 PCIe SSD holds the operating system and installed applications. The 80-pin OPS connector carries HDMI 2.0 at 4K and 60 Hz, DisplayPort at 5K and 60 Hz, one USB 3.0 port, two USB 2.0 ports and DC 12-19 V power. DisplayPort output supports up to 8K at 30 Hz. Dual-band Wi-Fi 6, Bluetooth 5.2 and a 10/100/1000 Mbps RJ45 port cover network connections.

Choose this model when a ViewBoard display needs a built-in Windows 11 Pro computer with a 12th Gen processor and an 80-pin OPS connector. Its power input is 19 V DC at 4.74 A, which differs from the 12 to 19 V, 8 A rating of the VPCF5-W33-G1, so confirm the power requirement for your display before installation. The rated operating range is 0 to 40 °C at 20% to 80% RH, non-condensing.

Type

OPS Slot-in PC

Weight

0.7 kg

Key features

Windows 11 Pro

Runs Windows 11 Pro on an Intel 12th Gen Core i5 or later processor.

Memory and storage

Provides 8 GB of DDR4 memory and a 256 GB M.2 PCIe SSD for everyday classroom and meeting software.

80-pin OPS connector

Carries HDMI 2.0 at 4K 60 Hz, DisplayPort at 5K 60 Hz, USB 3.0 and USB 2.0 ports, and DC 12-19 V power.

Wi-Fi 6 and Bluetooth 5.2

Dual-band 802.11ax Wi-Fi 6 with Bluetooth 5.2 through an Intel wireless module.

Gigabit RJ45 port

One RJ45 port for wired networking at 10/100/1000 Mbps.

USB and audio connections

Two USB 3.1 Type-A ports, one USB 3.1 Gen 2 Type-C data port and a combined mic and line-out jack.

Compact chassis

Measures 200 x 119 x 30 mm and weighs 0.7 kg for installation behind a compatible display.

Specifications

General
Key Features	Intel 12th Gen processor, 8 GB RAM, 256 GB SSD, Wi-Fi 6, Bluetooth 5.2, 80-pin OPS connector, Windows 11 Pro
Model	VPCF5-W33-G1-2A
Type	OPS Slot-in PC
What's in the Box	Quick start guide, 2 screws, 2 antennas

Performance
Graphics	Intel Iris Xe Graphics; DisplayPort up to 8K at 30 Hz, HDMI up to 3840 x 2160 at 30 Hz
Operating System	Windows 11 Pro
Processor	Intel 12th Gen Core i5 or later
RAM	8 GB
Storage	256 GB M.2 SSD (PCIe)

Audio
Audio	MIC-in and line-out combo connector

Connectivity
Bluetooth	Bluetooth 5.2
Ethernet	RJ45 10/100/1000 Mbps x 1
Input Voltage	DC 19 V, 4.74 A
OPS Slot	80-pin OPS: HDMI 2.0 4K at 60 Hz, DP 5K at 60 Hz, USB 3.0 x 1, USB 2.0 x 2, DC 12-19 V
USB Ports	USB 3.1 x 2, USB 2.0 x 2
USB-C Ports	USB 3.1 Gen 2 x 1 (data only)
Wi-Fi	Wi-Fi 6 (802.11ax)

Power
Power Consumption	90 W (max)

Physical
Dimensions	200 x 119 x 30 mm
Operating Humidity	20% to 80% RH (non-condensing)
Operating Temperature	0 to 40 °C
Weight	0.7 kg
