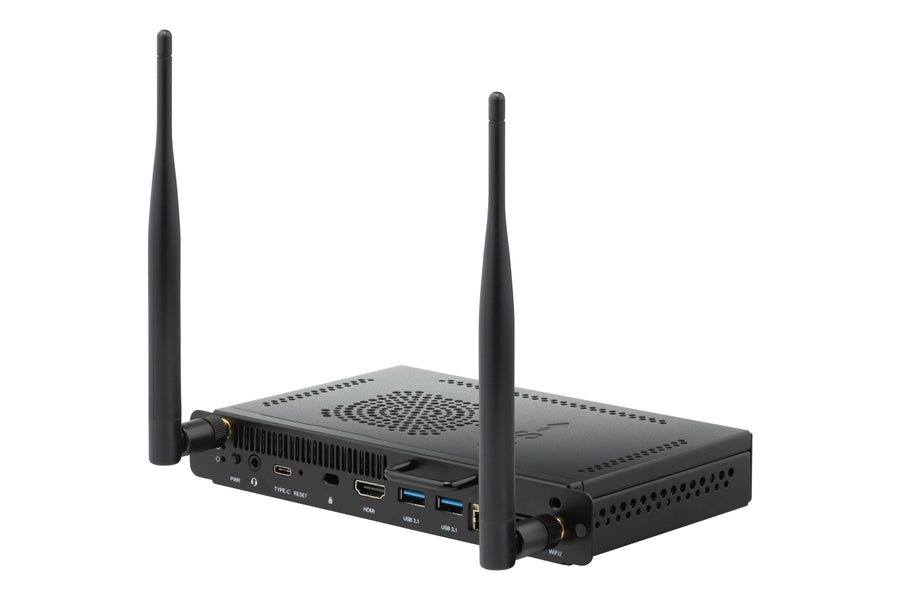

ViewSonic ViewBoard OPS Slot-in PC – VPCF5-S55-G1
The ViewSonic VPCF5-S55-G1 is a slot-in PC (OPS) for ViewBoard interactive displays. It uses an 11th Gen Intel Core i5 or later processor with 16 GB memory, a 512 GB PCIe SSD and Wi-Fi 6 with Bluetooth 5.2. Its graphics output reaches 7680 x 4320 at 60 Hz over DisplayPort. Procure.ae supplies the VPCF5-S55-G1 in the UAE.
The VPCF5-S55-G1 uses an 11th Gen Intel Core i5 (Tiger Lake) processor or later, with Intel Iris Xe Graphics at 96 execution units and 32 GB of total available graphics memory. It has 16 GB of DDR4 memory and a 512 GB PCIe SSD. Intel Wi-Fi 6 AX101 and Bluetooth 5.2 are built in, with an RJ45 LAN port at 10/100/1000 Mbps, USB 3.1 and USB 2.0 Type-A ports, a USB-C data port and a combined mic-in and line-out jack. It draws up to 90 W from a 12–19 V DC supply.
The VPCF5-S55-G1 is designed to sync with ViewBoard interactive displays and Presentation Displays. The manufacturer lists UEFI Shell as the operating system. The module measures 200 x 119 x 30 mm, weighs 0.7 kg net and operates from 0 to 40 °C. The manufacturer's specifications do not state a VESA pattern or mounting kit for the module, so confirm the fitting before ordering. Compared with the VPCF5-S33-G1, it doubles the memory to 16 GB and the storage to 512 GB.
Type
OPS Slot-in PC
Weight
0.7 kg
- 16 GB memory
- 512 GB PCIe SSD
- 11th Gen processing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
16 GB memory
16 GB of DDR4 memory on the module.
02
512 GB PCIe SSD
512 GB M.2 SSD on a PCIe interface.
03
11th Gen processing
Intel Core i5 (Tiger Lake) or later processor.
04
High-resolution output
Intel Iris Xe Graphics with 96 execution units, up to 7680 x 4320 at 60 Hz over DisplayPort.
05
Wireless connectivity
Intel Wi-Fi 6 AX101 with Bluetooth 5.2.
06
Wired connectivity
RJ45 LAN at 10/100/1000 Mbps, USB 3.1 and USB 2.0 Type-A ports, and a USB-C data port.
07
OPS standard connector
The OPS x1 connector provides USB 3.1 Type-A ports, a USB-C 3.1 data port and USB 2.0.
08
Low power draw
Up to 90 W maximum consumption from a 12–19 V DC supply.
Specifications
22 specificationsGeneral
Key Features11th Gen Intel Core i5, 16 GB DDR4, 512 GB PCIe SSD, Iris Xe Graphics, DisplayPort up to 8K, Wi-Fi 6, Bluetooth 5.2, RJ45 LAN
ModelVPCF5-S55-G1
TypeOPS Slot-in PC
What's in the BoxQuick Start Guide, 2 screws, 2 antennas
Performance
GraphicsIntel Iris Xe Graphics (96 EU), 32 GB total available graphics memory
Operating SystemUEFI Shell
ProcessorIntel 11th Gen Core i5 (Tiger Lake) or later
RAM16 GB DDR4
Storage512 GB PCIe M.2 SSD
Audio
DisplayPortUp to 7680 x 4320 at 60 Hz
Connectivity
BluetoothBluetooth 5.2
EthernetRJ45 LAN, 10/100/1000 Mbps
Input VoltageDC 12–19 V, 8 A (max)
OPS SlotOPS standard x1
PortsUSB 3.1 Type-A × 2, USB 2.0 Type-A × 1, USB-C 3.1 Gen 2 × 1 (data only), Mic-in/Line-out combo × 1
Wi-FiIntel Wi-Fi 6 AX101, 802.11ax
Power
Power Consumption90 W (max)
Physical
Dimensions200 x 119 x 30 mm
Operating Humidity10% to 90% RH at 40 °C, non-condensing
Operating Temperature0 to 40 °C
Weight0.7 kg
Compliance
CertificationsCE EMC, LVD, CE RED, RoHS, REACH, WEEE, CB2018
Downloads
Manufacturer documents for the ViewSonic ViewBoard OPS Slot-in PC – VPCF5-S55-G1 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which ViewBoard displays is the VPCF5-S55-G1 for?
The manufacturer positions the VPCF5-S55-G1 for syncing with ViewBoard interactive displays and Presentation Displays. Check the OPS connector on your display before ordering, and Procure.ae can confirm the fit for your model.
How does it differ from the VPCF5-S33-G1?
The VPCF5-S55-G1 has 16 GB of memory and a 512 GB SSD, while the VPCF5-S33-G1 has 8 GB and 256 GB. Both use an 11th Gen Intel Core i5 or later processor and Intel Iris Xe Graphics, so the main difference is capacity.
Which operating system does it use?
The manufacturer lists UEFI Shell as the operating system for this model. Windows is not named in the manufacturer's specifications, so confirm the software your room requires with Procure.ae before ordering.
What display output and ports does it have?
It outputs up to 7680 x 4320 at 60 Hz over DisplayPort. Its OPS connector provides two USB 3.1 Type-A ports, one USB 2.0 port and a USB-C 3.1 Gen 2 data port. It also has an RJ45 LAN port and a combined mic-in and line-out jack.
Can I buy the VPCF5-S55-G1 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
