ViewSonicMeeting Room SolutionsSKU VPCF5-S33-G1

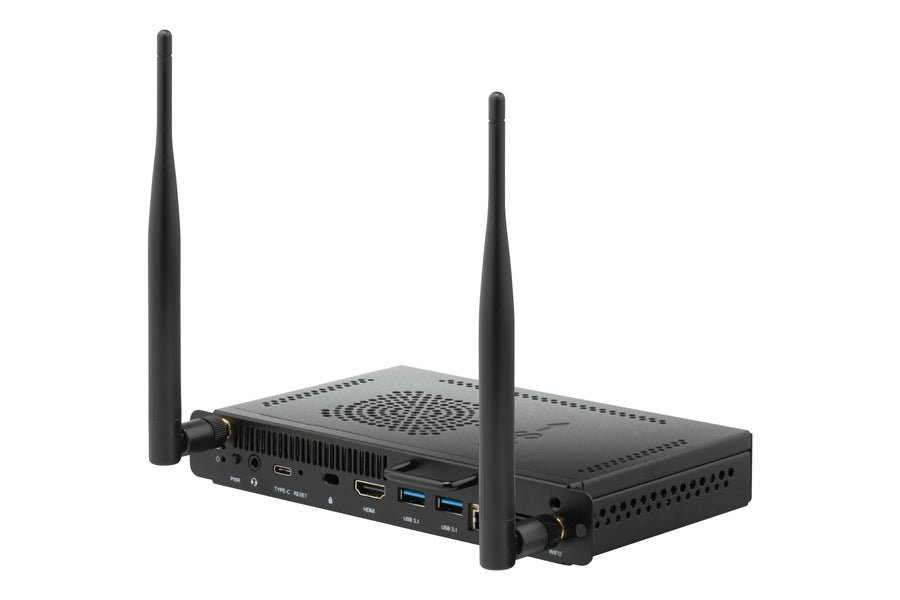

ViewSonic ViewBoard OPS Slot-in PC – VPCF5-S33-G1
The ViewSonic VPCF5-S33-G1 is a slot-in PC (OPS) for ViewBoard interactive displays. It uses an 11th Gen Intel Core i5 or later processor with 8 GB memory, a 256 GB PCIe SSD and Wi-Fi 6 with Bluetooth 5.2. It suits classrooms and meeting rooms. Procure.ae supplies the VPCF5-S33-G1 in the UAE.
The VPCF5-S33-G1 uses an 11th Gen Intel Core i5 (Tiger Lake) processor or later, paired with 8 GB of DDR4 memory and a 256 GB PCIe M.2 SSD. Intel Iris Xe Graphics with 96 execution units supports up to 7680 x 4320 at 60 Hz over DisplayPort. Intel Wi-Fi 6 AX101 and Bluetooth 5.2 are built in, with an RJ45 LAN port, USB 3.1 and USB 2.0 Type-A ports, a USB-C data port and a combined mic-in and line-out jack. It draws up to 90 W from a 12–19 V DC supply.
The VPCF5-S33-G1 is designed to sync with ViewBoard interactive displays and Presentation Displays. The manufacturer lists UEFI Shell as the operating system. The module measures 200 x 119 x 30 mm and weighs 0.7 kg net, and it operates from 0 to 40 °C. The manufacturer's specifications do not state a VESA pattern or mounting kit for the module, so confirm the fitting before ordering. Compared with the VPCF5-S55-G1, it has 8 GB of memory and 256 GB of storage instead of 16 GB and 512 GB.
Type
OPS Slot-in PC
Weight
0.7 kg
- 11th Gen Intel Core i5
- 8 GB memory
- 256 GB PCIe SSD
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
11th Gen Intel Core i5
Intel Core i5 (Tiger Lake) or later processor.
02
8 GB memory
8 GB of DDR4 memory on the module.
03
256 GB PCIe SSD
256 GB M.2 SSD on a PCIe interface.
04
High-resolution output
Intel Iris Xe Graphics with DisplayPort output up to 7680 x 4320 at 60 Hz.
05
Wireless connectivity
Intel Wi-Fi 6 AX101 with Bluetooth 5.2.
06
Wired connectivity
RJ45 LAN, USB 3.1 and USB 2.0 Type-A ports, and a USB-C data port.
07
OPS standard connector
The OPS x1 connector provides USB 3.1 Type-A ports, a USB-C 3.1 data port and USB 2.0.
08
Low power draw
Up to 90 W maximum consumption from a 12–19 V DC supply.
Specifications
22 specificationsGeneral
Key Features11th Gen Intel Core i5, 8 GB DDR4, 256 GB PCIe SSD, Iris Xe Graphics, DisplayPort up to 8K, Wi-Fi 6, Bluetooth 5.2, RJ45 LAN
ModelVPCF5-S33-G1
TypeOPS Slot-in PC
What's in the BoxQuick Start Guide, 2 screws, 2 antennas
Performance
GraphicsIntel Iris Xe Graphics (96 EU), 32 GB total available graphics memory
Operating SystemUEFI Shell
ProcessorIntel 11th Gen Core i5 (Tiger Lake) or later
RAM8 GB DDR4
Storage256 GB PCIe M.2 SSD
Audio
DisplayPortUp to 7680 x 4320 at 60 Hz
Connectivity
BluetoothBluetooth 5.2
EthernetRJ45 LAN, 10/100/1000 Mbps
Input VoltageDC 12–19 V, 8 A (max)
OPS SlotOPS standard x1
PortsUSB 3.1 Type-A × 2, USB 2.0 Type-A × 1, USB-C 3.1 Gen 2 × 1 (data only), Mic-in/Line-out combo × 1
Wi-FiIntel Wi-Fi 6 AX101, 802.11ax
Power
Power Consumption90 W (max)
Physical
Dimensions200 x 119 x 30 mm
Operating Humidity10% to 90% RH at 40 °C, non-condensing
Operating Temperature0 to 40 °C
Weight0.7 kg
Compliance
CertificationsCE EMC, LVD, CE RED, RoHS, REACH, WEEE, CB2018
Downloads
Manufacturer documents for the ViewSonic ViewBoard OPS Slot-in PC – VPCF5-S33-G1 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which ViewBoard displays does the VPCF5-S33-G1 work with?
The manufacturer positions the VPCF5-S33-G1 for syncing with ViewBoard interactive displays and Presentation Displays. Confirm that your display's OPS connector matches this module before ordering, and Procure.ae can check the fit for your model.
Which operating system does the VPCF5-S33-G1 use?
The manufacturer's specifications list UEFI Shell as the operating system for this model. Windows is not named in the manufacturer's specifications, so confirm the software your room requires with Procure.ae before ordering.
How much memory and storage does it have?
It has 8 GB of DDR4 memory and a 256 GB M.2 PCIe SSD. The 11th Gen Intel Core i5 processor, or later, is paired with Intel Iris Xe Graphics with 96 execution units.
What display output and ports does it have?
It supports up to 7680 x 4320 at 60 Hz over DisplayPort. The OPS connector provides USB 3.1 Type-A ports, a USB-C 3.1 Gen 2 data port and USB 2.0. The module also has an RJ45 LAN port and a combined mic-in and line-out jack.
Can I buy the VPCF5-S33-G1 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
