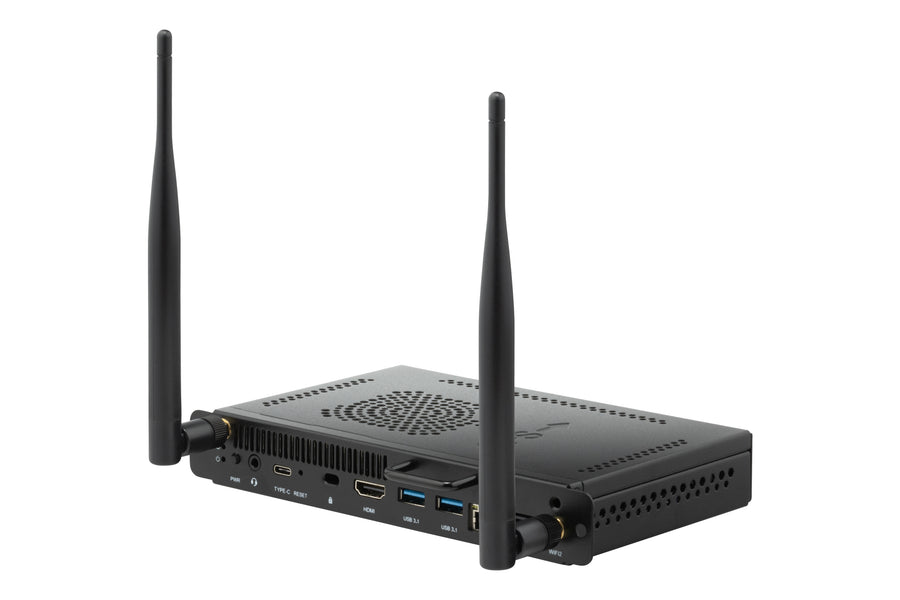

ViewSonic ViewBoard OPS Slot-in PC – VPCF5-S33-G1

The ViewSonic VPCF5-S33-G1 is a slot-in PC (OPS) for ViewBoard interactive displays. It uses an 11th Gen Intel Core i5 or later processor with 8 GB memory, a 256 GB PCIe SSD and Wi-Fi 6 with Bluetooth 5.2. It suits classrooms and meeting rooms. Procure.ae supplies the VPCF5-S33-G1 in the UAE.

The VPCF5-S33-G1 uses an 11th Gen Intel Core i5 (Tiger Lake) processor or later, paired with 8 GB of DDR4 memory and a 256 GB PCIe M.2 SSD. Intel Iris Xe Graphics with 96 execution units supports up to 7680 x 4320 at 60 Hz over DisplayPort. Intel Wi-Fi 6 AX101 and Bluetooth 5.2 are built in, with an RJ45 LAN port, USB 3.1 and USB 2.0 Type-A ports, a USB-C data port and a combined mic-in and line-out jack. It draws up to 90 W from a 12–19 V DC supply.

The VPCF5-S33-G1 is designed to sync with ViewBoard interactive displays and Presentation Displays. The manufacturer lists UEFI Shell as the operating system. The module measures 200 x 119 x 30 mm and weighs 0.7 kg net, and it operates from 0 to 40 °C. The manufacturer's specifications do not state a VESA pattern or mounting kit for the module, so confirm the fitting before ordering. Compared with the VPCF5-S55-G1, it has 8 GB of memory and 256 GB of storage instead of 16 GB and 512 GB.

Type

OPS Slot-in PC

Weight

0.7 kg

Key features

11th Gen Intel Core i5

Intel Core i5 (Tiger Lake) or later processor.

8 GB memory

8 GB of DDR4 memory on the module.

256 GB PCIe SSD

256 GB M.2 SSD on a PCIe interface.

High-resolution output

Intel Iris Xe Graphics with DisplayPort output up to 7680 x 4320 at 60 Hz.

Wireless connectivity

Intel Wi-Fi 6 AX101 with Bluetooth 5.2.

Wired connectivity

RJ45 LAN, USB 3.1 and USB 2.0 Type-A ports, and a USB-C data port.

OPS standard connector

The OPS x1 connector provides USB 3.1 Type-A ports, a USB-C 3.1 data port and USB 2.0.

Low power draw

Up to 90 W maximum consumption from a 12–19 V DC supply.

Specifications

General
Key Features	11th Gen Intel Core i5, 8 GB DDR4, 256 GB PCIe SSD, Iris Xe Graphics, DisplayPort up to 8K, Wi-Fi 6, Bluetooth 5.2, RJ45 LAN
Model	VPCF5-S33-G1
Type	OPS Slot-in PC
What's in the Box	Quick Start Guide, 2 screws, 2 antennas

Performance
Graphics	Intel Iris Xe Graphics (96 EU), 32 GB total available graphics memory
Operating System	UEFI Shell
Processor	Intel 11th Gen Core i5 (Tiger Lake) or later
RAM	8 GB DDR4
Storage	256 GB PCIe M.2 SSD

Audio
DisplayPort	Up to 7680 x 4320 at 60 Hz

Connectivity
Bluetooth	Bluetooth 5.2
Ethernet	RJ45 LAN, 10/100/1000 Mbps
Input Voltage	DC 12–19 V, 8 A (max)
OPS Slot	OPS standard x1
Ports	USB 3.1 Type-A × 2, USB 2.0 Type-A × 1, USB-C 3.1 Gen 2 × 1 (data only), Mic-in/Line-out combo × 1
Wi-Fi	Intel Wi-Fi 6 AX101, 802.11ax

Power
Power Consumption	90 W (max)

Physical
Dimensions	200 x 119 x 30 mm
Operating Humidity	10% to 90% RH at 40 °C, non-condensing
Operating Temperature	0 to 40 °C
Weight	0.7 kg

Compliance
Certifications	CE EMC, LVD, CE RED, RoHS, REACH, WEEE, CB2018
