ViewSonicMeeting Room SolutionsSKU VB-STND-004
ViewSonic ViewBoard Motorised Floor Stand – VB-STND-004

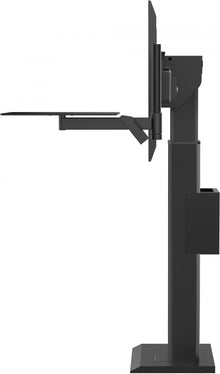

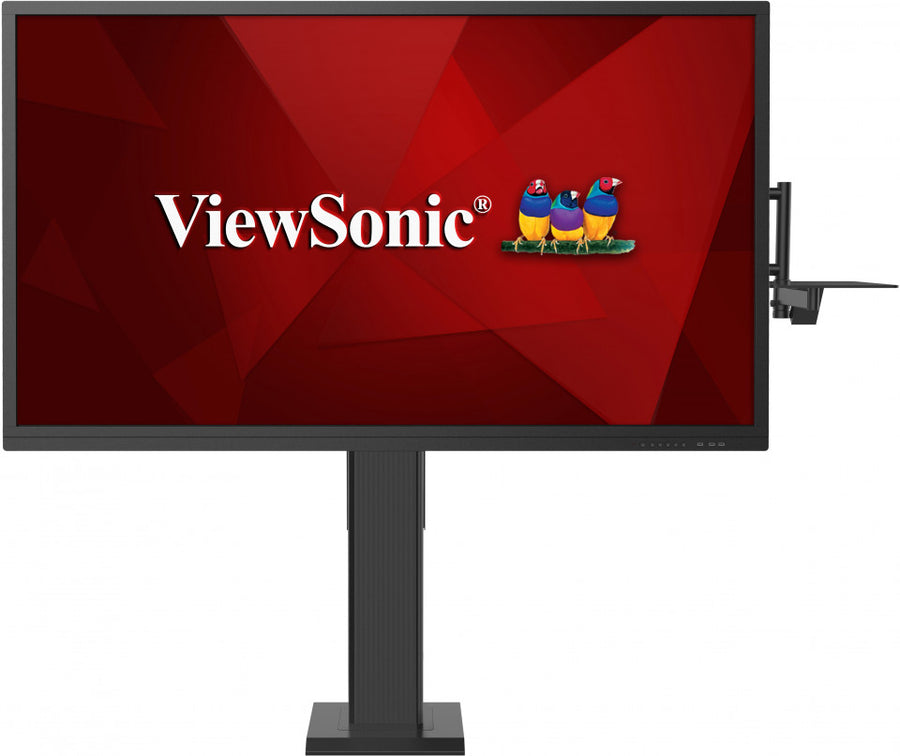

The ViewSonic VB-STND-004 is a motorised floor stand for interactive flat panels from 55 to 86 inches. It lifts and lowers the panel through 560 mm (22.05 in) and holds displays up to 100 kg. Procure.ae, an authorised ViewSonic reseller, supplies it across the UAE.
The VB-STND-004 raises and lowers an interactive flat panel through a 560 mm (22.05 in) motorised range. It accommodates 55-inch, 65-inch, 75-inch and 86-inch panels, or any display weighing up to 100 kg. The base is designed to be secured and bolted to the floor, which the manufacturer states keeps the stand upright. On IFP50-series panels, the height can be changed from the touchscreen with a single tap.
Unlike the wheeled trolley carts made for the same panel sizes, the VB-STND-004 is a fixed floor installation and does not move between rooms. It suits lecture theatres, boardrooms and training rooms where one panel stays in one place but needs height adjustment. Procure.ae supplies the stand across the UAE, with delivery and installation, free training and support.
Type
Motorised Floor Stand
Weight
44.3 kg
- Motorised lift
- Four panel sizes
- 100 kg capacity
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Motorised lift
Raises and lowers the panel through a 560 mm (22.05 in) range.
02
Four panel sizes
Accommodates 55-inch, 65-inch, 75-inch and 86-inch interactive flat panels.
03
100 kg capacity
Supports any display weighing up to 100 kg.
04
Floor-bolted base
Designed to be bolted to the floor so the stand stays upright when secured.
05
Touchscreen control
On IFP50-series panels, the height is adjusted from the touchscreen with a single tap.
Specifications
13 specificationsGeneral
ControlsOn-screen control from panel touchscreen (IFP50 series only)
Key FeaturesMotorised lift, 560 mm height adjustment, Floor-bolted base, Touchscreen control (IFP50 series), Up to 100 kg display load
ModelVB-STND-004
TypeMotorised Floor Stand
Display
Supported Screen Sizes55 inch, 65 inch, 75 inch and 86 inch
Physical
AdjustabilityMotorised height adjustment
Dimensions960 x 1182 x 377 mm (W x H x D)
Height Range560 mm (22.05 in) motorised lift
Load Capacity100 kg max. (display)
MountingFloor-mounted, bolted to the floor
Shipping Dimensions1155 x 305 x 795 mm
Shipping Weight53.5 kg
Weight44.3 kg
Downloads
Manufacturer documents for the ViewSonic ViewBoard Motorised Floor Stand – VB-STND-004 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the VB-STND-004 fit a 65-inch interactive flat panel?
Yes. The manufacturer states the stand accommodates 55-inch, 65-inch, 75-inch and 86-inch interactive flat panels, or any display weighing up to 100 kg. Check the panel's weight against that 100 kg limit before ordering.
How much height adjustment does the VB-STND-004 provide?
The VB-STND-004 has a motorised height adjustment of 560 mm (22.05 in). On IFP50-series panels, the height can be changed from the touchscreen, and the manufacturer states that a single tap raises or lowers the panel.
Does the VB-STND-004 need to be fixed to the floor?
Yes. The stand is designed to be secured and bolted to the floor, which the manufacturer says keeps it upright. It is a fixed installation rather than a mobile cart, so confirm the floor position before installation is arranged.
