ViewSonicMeeting Room SolutionsSKU VPC12-WPO-2

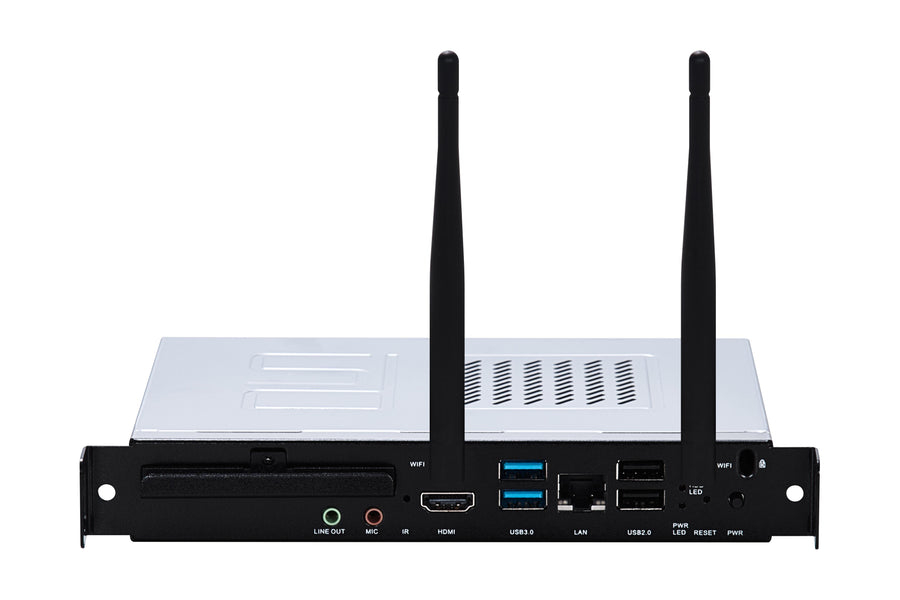

ViewSonic ViewBoard Intel Unite Slot-in PC – VPC12-WPO-2
The ViewSonic VPC12-WPO-2 is an Intel Unite certified Windows slot-in OPS PC for ViewBoard interactive displays. It has an Intel Core i5-6300U processor with vPro, 8 GB DDR4 memory and a 128 GB SSD. It runs Windows 10 Pro 64-bit with dual-band Wi-Fi. Procure.ae supplies the VPC12-WPO-2 across the UAE.
The VPC12-WPO-2 provides the computing for wireless group presentations and smart meeting rooms on ViewBoard displays. Its Intel Core i5-6300U processor includes vPro and TPM functions, which the manufacturer describes as advanced security. Memory is 8 GB DDR4, expandable to 16 GB, and the 128 GB SSD expands to 512 GB. Dual-band 802.11ac Wi-Fi, Bluetooth 4.0 and Gigabit LAN handle network connections, and two USB 3.0 and two USB 2.0 ports connect peripherals. The module is Intel Unite certified for wireless presentation sessions.
The VPC12-WPO-2 fits ViewBoard interactive flat panels that accept OPS modules, and it suits smart whiteboard and smart meeting room setups. It runs Windows 10 Pro 64-bit. It draws 60 W from DC 12 V or 19 V input and operates from -5 to 45 °C. Its dimensions are 180 x 119 x 30 mm, and it weighs 0.84 kg. Unlike the ChromeOS Chromebox modules, it runs Windows 10 Pro.
Type
Slot-in PC (OPS)
Weight
0.84 kg
- Intel vPro processor
- Intel Unite certified
- Windows 10 Pro
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Intel vPro processor
Intel Core i5-6300U with vPro and TPM functions.
02
Intel Unite certified
Certified for wireless group presentation and smart meeting room use.
03
Windows 10 Pro
Windows 10 Pro 64-bit operating system.
04
Memory and storage
8 GB DDR4 RAM and a 128 GB SATA3 SSD, both expandable.
05
Dual-band wireless
802.11 a/b/g/n/ac on 2.4 GHz and 5 GHz, with Bluetooth 4.0.
06
USB and LAN
Two USB 3.0, two USB 2.0 and a Gigabit LAN port.
07
Audio and IR
Microphone input, earphone output and an IR receiver.
Specifications
19 specificationsGeneral
Key FeaturesIntel Core i5-6300U with vPro and TPM, Intel Unite certified, Windows 10 Pro 64-bit, 8 GB DDR4 RAM, 128 GB SSD, dual-band Wi-Fi, Gigabit LAN, IR receiver
ModelVPC12-WPO-2
TypeSlot-in PC (OPS)
Performance
GraphicsIntel HD Graphics 520
Operating SystemWindows 10 Pro 64-bit
ProcessorIntel Core i5-6300U with vPro and TPM
RAM8 GB DDR4 (expandable to 16 GB)
Storage128 GB SATA3 SSD (expandable to 512 GB)
Connectivity
BluetoothBluetooth 4.0
EthernetGigabit LAN × 1
Input VoltageDC 12 V / 19 V
PortsUSB 3.0 Type A × 2, USB 2.0 Type A × 2, RJ45 × 1, microphone × 1, earphone out × 1, IR × 1
Wi-Fi802.11 a/b/g/n/ac (2.4 GHz / 5 GHz)
Power
Power Consumption60 W
Physical
Dimensions180 x 119 x 30 mm
Operating Humidity10% to 90% RH, non-condensing
Operating Temperature-5 to 45 °C
Weight0.84 kg
Compliance
CertificationsRED, cTUVus, FCC, IC, ICES, CE, CB, RoHS, REACH, RCM
Downloads
Manufacturer documents for the ViewSonic ViewBoard Intel Unite Slot-in PC – VPC12-WPO-2 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the ViewSonic VPC12-WPO-2?
It is an Intel Unite certified Windows slot-in OPS PC for ViewBoard interactive flat panels. It has an Intel Core i5-6300U processor with vPro, 8 GB DDR4 memory and a 128 GB SSD, and it runs Windows 10 Pro 64-bit.
Is the VPC12-WPO-2 Intel Unite certified?
Yes. The manufacturer describes it as an Intel Unite certified OPS PC for wireless group presentation and smart meeting room use. It supports high-definition audio and video in those sessions, and Intel vPro technology adds security features.
Can the memory and storage be upgraded?
Yes. Memory is 8 GB DDR4 and can be expanded to 16 GB, and the 128 GB SATA3 SSD can be expanded to 512 GB, according to the manufacturer's specifications.
Which operating system does it run?
It runs Windows 10 Pro 64-bit, as listed in the manufacturer's specifications, and it supports dual-band Wi-Fi for wireless presentation sessions. The module also has a Gigabit LAN port for wired networks, so the PC can connect over Ethernet as well as Wi-Fi.
Does it support wireless and Bluetooth connections?
Yes. It supports 802.11 a/b/g/n/ac Wi-Fi on 2.4 GHz and 5 GHz and Bluetooth 4.0, and it has a Gigabit LAN port for wired networking. Both Wi-Fi bands are supported, and the Gigabit LAN port handles wired connections where needed.
