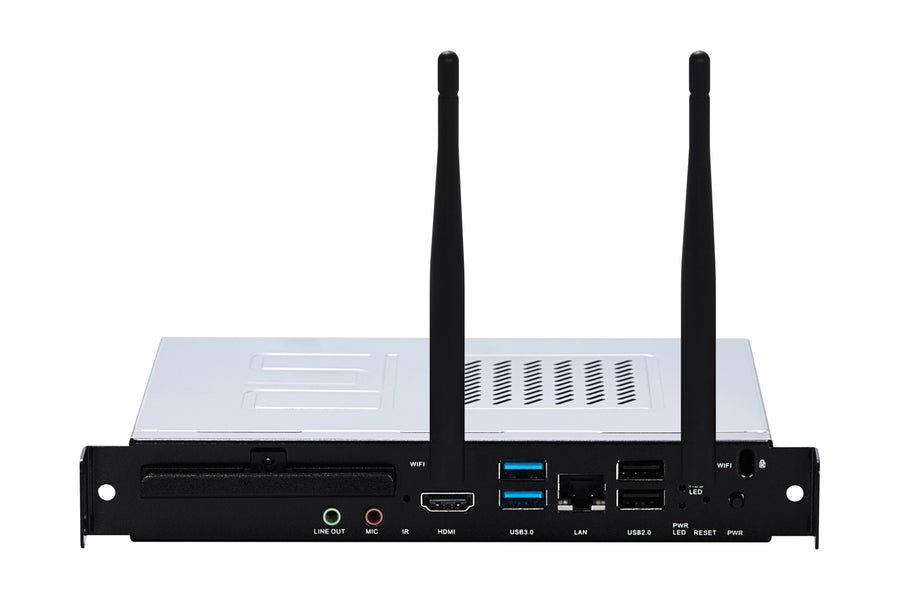

ViewSonic ViewBoard Intel Unite Slot-in PC – VPC12-WPO-2
The ViewSonic VPC12-WPO-2 is an Intel Unite certified Windows slot-in OPS PC for ViewBoard interactive displays. It has an Intel Core i5-6300U processor with vPro, 8 GB DDR4 memory and a 128 GB SSD. It runs Windows 10 Pro 64-bit with dual-band Wi-Fi. Procure.ae supplies the VPC12-WPO-2 across the UAE.
The VPC12-WPO-2 provides the computing for wireless group presentations and smart meeting rooms on ViewBoard displays. Its Intel Core i5-6300U processor includes vPro and TPM functions, which the manufacturer describes as advanced security. Memory is 8 GB DDR4, expandable to 16 GB, and the 128 GB SSD expands to 512 GB. Dual-band 802.11ac Wi-Fi, Bluetooth 4.0 and Gigabit LAN handle network connections, and two USB 3.0 and two USB 2.0 ports connect peripherals. The module is Intel Unite certified for wireless presentation sessions.
The VPC12-WPO-2 fits ViewBoard interactive flat panels that accept OPS modules, and it suits smart whiteboard and smart meeting room setups. It runs Windows 10 Pro 64-bit. It draws 60 W from DC 12 V or 19 V input and operates from -5 to 45 °C. Its dimensions are 180 x 119 x 30 mm, and it weighs 0.84 kg. Unlike the ChromeOS Chromebox modules, it runs Windows 10 Pro.
Key features
Specifications
| Key Features | Intel Core i5-6300U with vPro and TPM, Intel Unite certified, Windows 10 Pro 64-bit, 8 GB DDR4 RAM, 128 GB SSD, dual-band Wi-Fi, Gigabit LAN, IR receiver |
| Model | VPC12-WPO-2 |
| Type | Slot-in PC (OPS) |
| Graphics | Intel HD Graphics 520 |
| Operating System | Windows 10 Pro 64-bit |
| Processor | Intel Core i5-6300U with vPro and TPM |
| RAM | 8 GB DDR4 (expandable to 16 GB) |
| Storage | 128 GB SATA3 SSD (expandable to 512 GB) |
| Bluetooth | Bluetooth 4.0 |
| Ethernet | Gigabit LAN × 1 |
| Input Voltage | DC 12 V / 19 V |
| Ports | USB 3.0 Type A × 2, USB 2.0 Type A × 2, RJ45 × 1, microphone × 1, earphone out × 1, IR × 1 |
| Wi-Fi | 802.11 a/b/g/n/ac (2.4 GHz / 5 GHz) |
| Power Consumption | 60 W |
| Dimensions | 180 x 119 x 30 mm |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -5 to 45 °C |
| Weight | 0.84 kg |
| Certifications | RED, cTUVus, FCC, IC, ICES, CE, CB, RoHS, REACH, RCM |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
