ViewSonicInteractive Flat PanelsSKU IFP7535-1

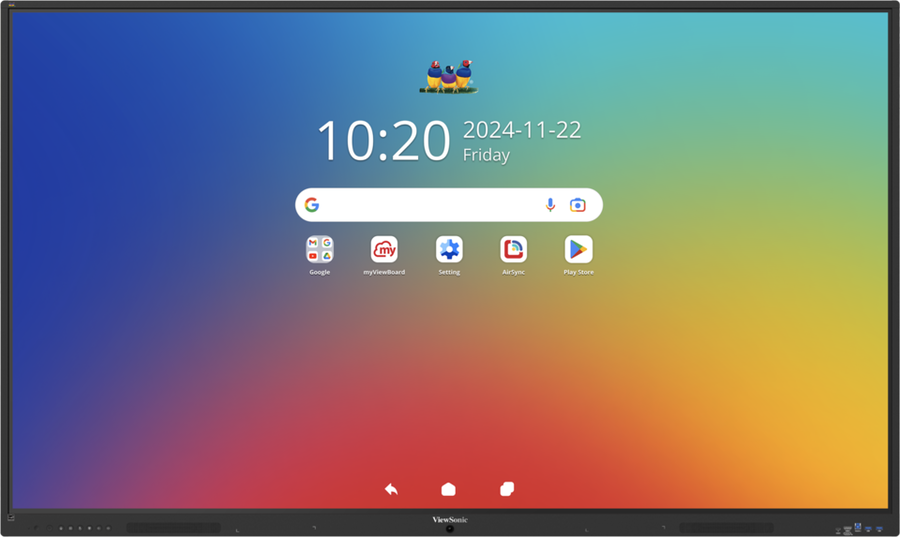

ViewSonic ViewBoard IFP35-1 Series 75-inch 4K Interactive Flat Panel – IFP7535-1
The ViewSonic IFP7535-1, also listed as IFP7535-1-1C, is a 75-inch 4K UHD interactive flat panel for classrooms and training rooms. It has 64-point infrared touch, an octa-core CPU, 8 GB of RAM and EDLA-certified Android 16. Procure.ae supplies the ViewSonic IFP7535-1 across the UAE.
The IFP7535-1 has a 75-inch 4K UHD panel at 3840 x 2160 resolution, with 350 nits typical brightness, a 5,000:1 maximum contrast ratio with DCR enabled, a 6.5 ms response time and 178-degree viewing angles. Its infrared Ultra Fine Touch supports up to 64 touch points with palm rejection, at a touch resolution of 32767 x 32767. An octa-core CPU, 8 GB of RAM and 64 GB or 128 GB of storage handle lessons and apps. Ambient light and PIR motion sensors adjust brightness and help save energy, which extends panel life according to the manufacturer.
The IFP7535-1 suits classrooms, training rooms and meeting spaces. It includes myViewBoard for annotation, AirSync wireless casting and Manager device management, plus an OPS PC slot, a microSD slot and line-out audio. Its front USB-C port delivers 65 W, compared with 100 W on the IFP7541-1, and the rear USB-C port delivers 15 W. The VESA pattern is 800 x 400 mm. Procure.ae is an authorised ViewSonic reseller.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical)
Touch Technology
Infrared (Ultra Fine Touch)
- 64-point Ultra Fine Touch
- Octa-core with 8 GB RAM
- Android 16 with EDLA
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
64-point Ultra Fine Touch
Infrared touch with palm rejection and 32767 x 32767 touch resolution.
02
Octa-core with 8 GB RAM
Octa-core CPU with 8 GB RAM and 64 GB or 128 GB storage.
03
Android 16 with EDLA
EDLA-certified Android 16 for secure app access.
04
Ambient light and motion sensors
Light and PIR sensors for brightness control and energy saving.
05
Education software
MyViewBoard, AirSync and Manager for annotation, casting and device management.
06
OPS PC slot
OPS slot for a slot-in PC, with 10/100/1000 Mbps LAN sharing.
07
USB-C power
Front USB-C with DP 1.2 and PD 65 W, rear USB-C with PD 15 W.
08
Ports
RGB/VGA, DisplayPort, two RJ45, five USB 3.2 Gen 1 Type A, two USB Type B, two USB-C, line out and microSD.
Specifications
27 specificationsGeneral
Key Features64-point infrared touch, palm rejection, EDLA-certified Android 16, ambient light and PIR motion sensors, myViewBoard, AirSync casting, Manager device management, OPS PC slot
ModelIFP7535-1
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDLED
Brightness350 nits (typical)
Contrast Ratio5,000:1 (max., with DCR)
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size75 inch
Touch Points64-point multi-touch
Touch Resolution32767 x 32767
Touch TechnologyInfrared (Ultra Fine Touch)
Viewing Angle178° horizontal, 178° vertical
Performance
Operating SystemAndroid 16
ProcessorOcta-core
RAM8 GB
Storage64 GB / 128 GB
Connectivity
Input Voltage100–240 V AC
OPS SlotOPS PC slot × 1
PortsRGB/VGA × 1, DisplayPort × 1, RJ45 × 2, USB 3.2 Gen 1 Type A × 5, USB Type B × 2, USB-C × 2 (65 W front, 15 W rear), line out × 1, microSD slot × 1, RS232 × 1
Power
Power Consumption92.44 W (on), below 0.5 W (off)
Physical
Dimensions1709 x 1020 x 98.2 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount800 x 400 mm
Weight38.9 kg
Downloads
Manufacturer documents for the ViewSonic ViewBoard IFP35-1 Series 75-inch 4K Interactive Flat Panel – IFP7535-1 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size, resolution and brightness of the IFP7535-1?
It is a 75-inch 4K UHD display at 3840 x 2160 resolution in a 16:9 aspect ratio. Brightness is 350 nits typical, contrast is 5,000:1 with DCR enabled and the response time is 6.5 ms.
Does the IFP7535-1 support finger and palm-rejection touch?
Yes. It has infrared Ultra Fine Touch with up to 64 touch points and palm rejection. Basic annotation uses myViewBoard for Android, and Windows annotation uses myViewBoard for Windows. Touch resolution is 32767 x 32767.
Is the IFP7535-1 suitable for a room that needs energy saving?
Yes. Built-in light and PIR motion sensors adjust screen brightness and help save energy. The display draws 92.44 W when on and below 0.5 W when off, and the panel is rated for 0 to 40 °C operation.
How is the IFP7535-1 mounted?
It uses an 800 x 400 mm VESA pattern. The display measures 1709 x 1020 x 98.2 mm and weighs 38.9 kg net, so the bracket should be rated for that weight and fitted to a solid wall or frame.
Does the IFP7535-1 connect to a PC or slot-in device?
Yes. It has DisplayPort and RGB/VGA inputs, a front USB-C port with DP 1.2 and PD 65 W, and an OPS PC slot. LAN sharing between the panel and a slot-in device runs at 10/100/1000 Mbps.
