ViewSonic ViewBoard Dual-Band Wi-Fi Module – LB-WIFI-001

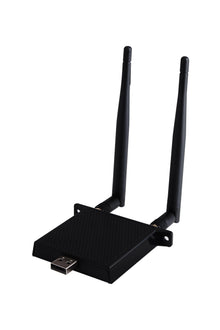

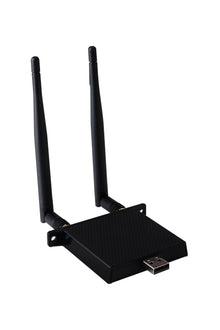

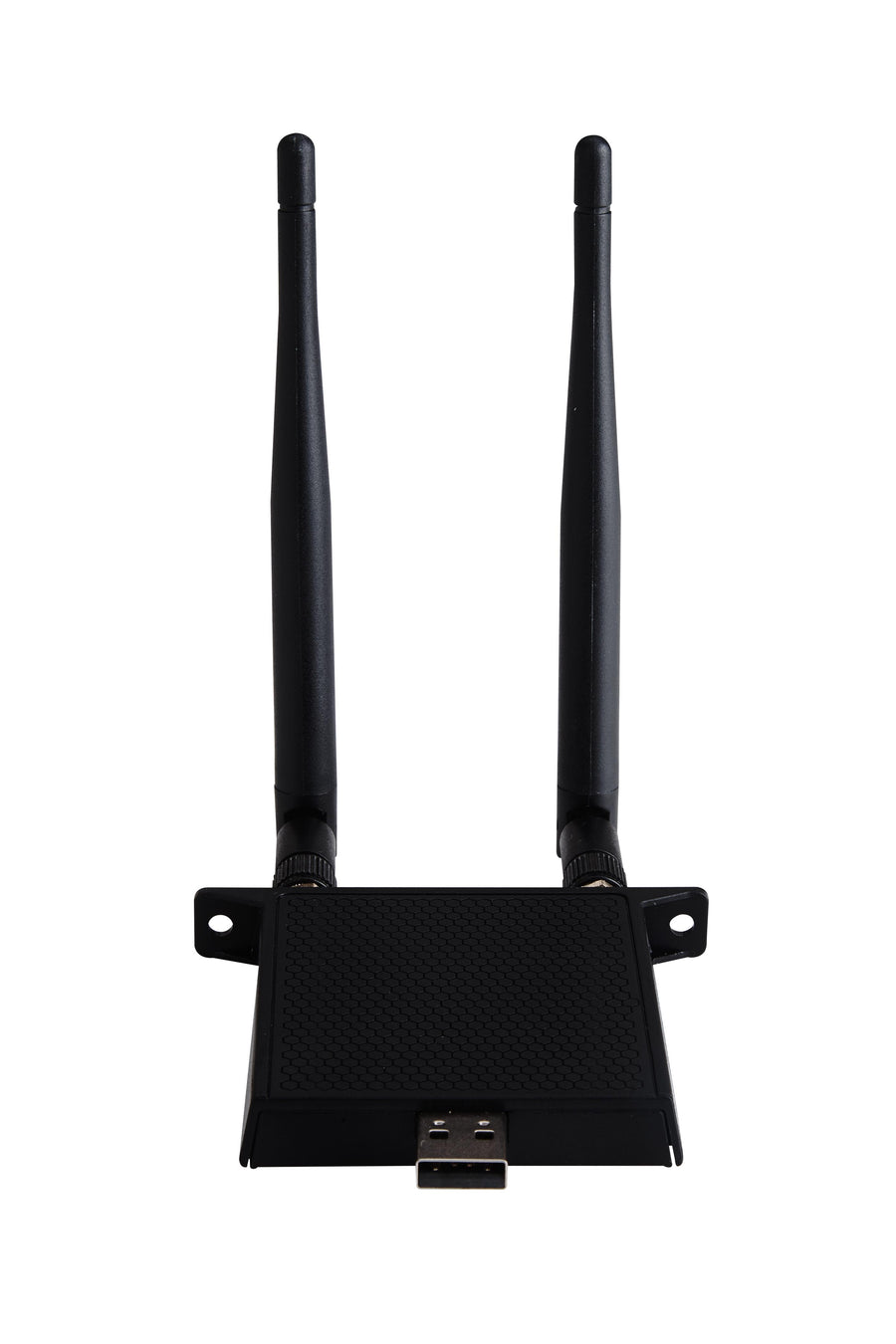

The ViewSonic LB-WIFI-001 is a USB 2.0 dual-band Wi-Fi module that gives ViewBoard IFP50, IFP70 and CDE20 interactive displays a wireless internet connection. It supports 802.11ac on 2.4 GHz and 5 GHz bands, with transfer rates of up to 433 Mbps. Procure.ae supplies the ViewSonic LB-WIFI-001 across the UAE.
The LB-WIFI-001 connects a ViewBoard display to a wireless network over dual-frequency 2.4 GHz and 5 GHz bands. It implements the 802.11ac standard, with transfer rates of up to 433 Mbps for fast wireless internet access. The module plugs into a USB 2.0 interface, runs from 5 V DC and draws less than 2.5 W. Its Realtek RTL8821AU-VS chipset is rated for 0 to 40 °C operation and 10% to 90% non-condensing humidity.
Use the LB-WIFI-001 with ViewBoard IFP50 series displays, with IFP70 series displays in 65-inch and 86-inch sizes, and with CDE20 series displays from 65 to 86 inch. The manufacturer's specifications name only these series. Procure.ae can confirm the fit and arrange installation across the UAE, and offers bulk and project quotes for multi-room rollouts.
Type
Wi-Fi Module
Weight
30 g
- Dual-band Wi-Fi
- 802.11ac standard
- USB 2.0 interface
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Dual-band Wi-Fi
connects on 2.4 GHz and 5 GHz bands for wireless internet access.
02
802.11ac standard
delivers transfer rates of up to 433 Mbps.
03
USB 2.0 interface
connects over USB 2.0 with a 5 V DC supply.
04
Low power draw
consumes less than 2.5 W in operation.
05
Wide operating range
rated for 0 to 40 °C and 10% to 90% non-condensing humidity.
06
Series compatibility
named for ViewBoard IFP50, IFP70 (65-inch and 86-inch) and CDE20 (65-inch to 86-inch) series.
Specifications
14 specificationsGeneral
CompatibilityViewBoard IFP50 series, IFP70 series (65-inch, 86-inch), CDE20 series (65-inch to 86-inch)
Key FeaturesDual-band Wi-Fi, 802.11ac, up to 433 Mbps, USB 2.0 interface, 5 V DC, under 2.5 W, 0 to 40 °C operation
ModelLB-WIFI-001
TypeWi-Fi Module
Performance
ProcessorRealtek RTL8821AU-VS
Connectivity
Connector TypeUSB 2.0
Data RateUp to 433 Mbps
Frequency Band2.4 GHz / 5 GHz
Input Voltage5 V DC
Wi-Fi802.11ac, dual-band 2.4 GHz / 5 GHz
Power
Power ConsumptionLess than 2.5 W
Physical
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0 to 40 °C
Weight30 g
Downloads
Manufacturer documents for the ViewSonic ViewBoard Dual-Band Wi-Fi Module – LB-WIFI-001 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which ViewBoard displays is the LB-WIFI-001 compatible with?
The LB-WIFI-001 is named for the ViewBoard IFP50 series, the IFP70 series in 65-inch and 86-inch sizes, and the CDE20 series from 65 to 86 inch. The manufacturer's specifications name no other series, so Procure.ae can confirm the fit for your exact display model before you order.
What Wi-Fi standard and speed does the LB-WIFI-001 support?
The LB-WIFI-001 supports the 802.11ac standard on both 2.4 GHz and 5 GHz bands. Its transfer rate reaches up to 433 Mbps, which gives the connected ViewBoard display a fast wireless internet connection without a network cable.
What power does the LB-WIFI-001 use?
It runs on 5 V DC through its USB 2.0 interface and consumes less than 2.5 W in operation. The module is rated for 0 to 40 °C and 10% to 90% humidity, non-condensing, and its net weight is 30 g.
