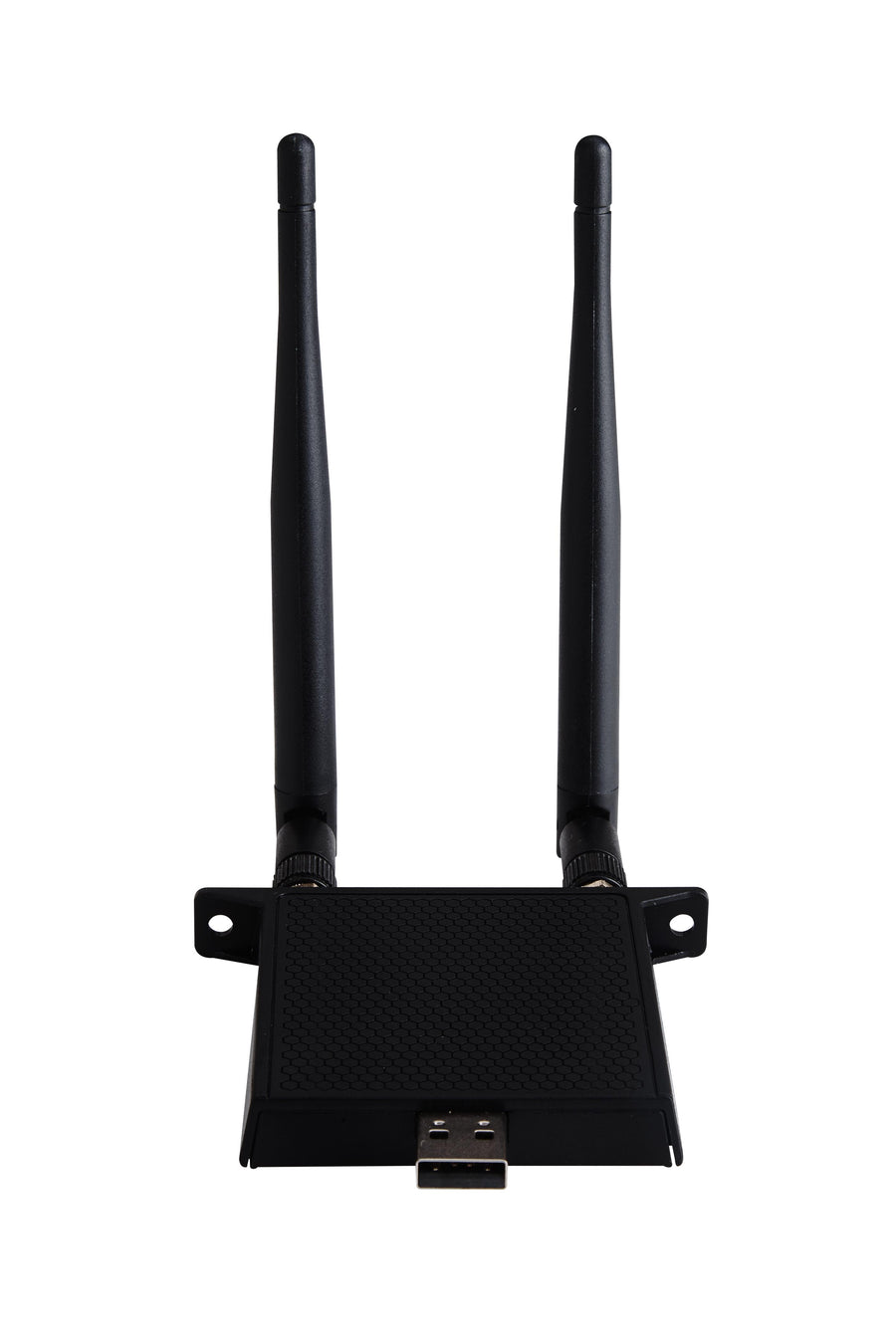

ViewSonic ViewBoard Dual-Band Wi-Fi Module – LB-WIFI-001

The ViewSonic LB-WIFI-001 is a USB 2.0 dual-band Wi-Fi module that gives ViewBoard IFP50, IFP70 and CDE20 interactive displays a wireless internet connection. It supports 802.11ac on 2.4 GHz and 5 GHz bands, with transfer rates of up to 433 Mbps. Procure.ae supplies the ViewSonic LB-WIFI-001 across the UAE.

The LB-WIFI-001 connects a ViewBoard display to a wireless network over dual-frequency 2.4 GHz and 5 GHz bands. It implements the 802.11ac standard, with transfer rates of up to 433 Mbps for fast wireless internet access. The module plugs into a USB 2.0 interface, runs from 5 V DC and draws less than 2.5 W. Its Realtek RTL8821AU-VS chipset is rated for 0 to 40 °C operation and 10% to 90% non-condensing humidity.

Use the LB-WIFI-001 with ViewBoard IFP50 series displays, with IFP70 series displays in 65-inch and 86-inch sizes, and with CDE20 series displays from 65 to 86 inch. The manufacturer's specifications name only these series. Procure.ae can confirm the fit and arrange installation across the UAE, and offers bulk and project quotes for multi-room rollouts.
