ViewSonicMeeting Room SolutionsSKU VB-WIFI-004

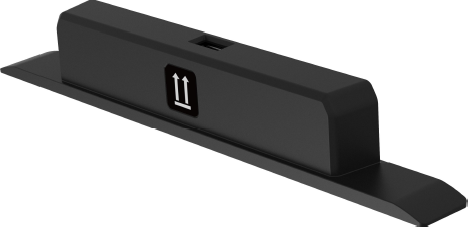

ViewSonic ViewBoard 802.11ax Wireless Module – VB-WIFI-004
The ViewSonic VB-WIFI-004 is an 802.11ax wireless module that gives ViewBoard interactive displays a wireless internet connection. It supports dual-frequency 2.4 GHz and 5 GHz bands, runs on 5 V DC and consumes less than 5 W. Procure.ae supplies the ViewSonic VB-WIFI-004 across the UAE.
The VB-WIFI-004 provides wireless internet access for ViewBoard displays using the 802.11ax standard. It operates on dual-frequency 2.4 GHz and 5 GHz bands, giving the display access to both. The module needs a 5 V DC supply and consumes less than 5 W. It weighs 85 g net and is rated for 0 to 40 °C operation and 10% to 90% non-condensing humidity. Its storage range is -20 to 60 °C.
Use the VB-WIFI-004 with ViewBoard interactive displays that need wireless network access in classrooms, meeting rooms and offices. The manufacturer's specifications do not state a list of compatible models, so Procure.ae can confirm the fit for your ViewBoard. Compared with the VB-WIFI-006, which adds a 6 GHz band and Bluetooth, the VB-WIFI-004 lists 2.4 GHz and 5 GHz only. Procure.ae arranges delivery and installation across the UAE.
Type
Wi-Fi Module
Weight
85 g
- 802.11ax standard
- Dual-band support
- Low power draw
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
802.11ax standard
provides wireless internet access for the ViewBoard.
02
Dual-band support
operates on 2.4 GHz and 5 GHz frequency bands.
03
Low power draw
consumes less than 5 W from a 5 V DC supply.
04
Operating range
rated for 0 to 40 °C and 10% to 90% non-condensing humidity.
05
Storage range
stores at -20 to 60 °C with 10% to 90% non-condensing humidity.
06
Lightweight module
weighs 85 g net.
Specifications
12 specificationsGeneral
CompatibilityViewBoard interactive displays
Key Features802.11ax, dual-band 2.4 GHz and 5 GHz, 5 V DC, under 5 W, 0 to 40 °C operation, -20 to 60 °C storage
ModelVB-WIFI-004
TypeWi-Fi Module
Performance
Storage Conditions-20 to 60 °C, 10% to 90% RH (non-condensing)
Connectivity
Frequency Band2.4 GHz / 5 GHz
Input Voltage5 V DC
Wi-Fi802.11ax, dual-band 2.4 GHz / 5 GHz
Power
Power ConsumptionLess than 5 W
Physical
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0 to 40 °C
Weight85 g
Downloads
Manufacturer documents for the ViewSonic ViewBoard 802.11ax Wireless Module – VB-WIFI-004 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which ViewBoard displays does the VB-WIFI-004 work with?
The VB-WIFI-004 is made for the ViewBoard interactive display range. The manufacturer's specifications do not list individual models, so Procure.ae can confirm whether your ViewBoard model is supported before you order. Share the exact model number when you request a quote.
Does the VB-WIFI-004 support both 2.4 GHz and 5 GHz?
Yes. The VB-WIFI-004 supports dual-frequency 2.4 GHz and 5 GHz bands on the 802.11ax standard. Its specifications do not list 6 GHz support, which the VB-WIFI-006 adds, so choose that model if you need the 6 GHz band.
What power and temperature range does the VB-WIFI-004 need?
It runs on a 5 V DC supply and consumes less than 5 W. The manufacturer rates it for 0 to 40 °C operation and -20 to 60 °C storage, both at 10% to 90% non-condensing humidity.
Can I buy the VB-WIFI-004 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
