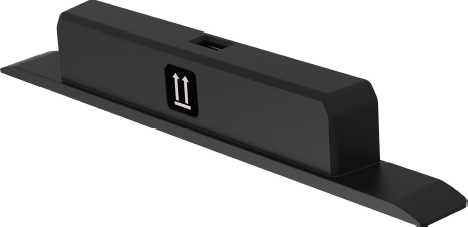

ViewSonic ViewBoard 802.11ax Wireless Module – VB-WIFI-004

The ViewSonic VB-WIFI-004 is an 802.11ax wireless module that gives ViewBoard interactive displays a wireless internet connection. It supports dual-frequency 2.4 GHz and 5 GHz bands, runs on 5 V DC and consumes less than 5 W. Procure.ae supplies the ViewSonic VB-WIFI-004 across the UAE.

The VB-WIFI-004 provides wireless internet access for ViewBoard displays using the 802.11ax standard. It operates on dual-frequency 2.4 GHz and 5 GHz bands, giving the display access to both. The module needs a 5 V DC supply and consumes less than 5 W. It weighs 85 g net and is rated for 0 to 40 °C operation and 10% to 90% non-condensing humidity. Its storage range is -20 to 60 °C.

Use the VB-WIFI-004 with ViewBoard interactive displays that need wireless network access in classrooms, meeting rooms and offices. The manufacturer's specifications do not state a list of compatible models, so Procure.ae can confirm the fit for your ViewBoard. Compared with the VB-WIFI-006, which adds a 6 GHz band and Bluetooth, the VB-WIFI-004 lists 2.4 GHz and 5 GHz only. Procure.ae arranges delivery and installation across the UAE.

Type

Wi-Fi Module

Weight

85 g

Key features

802.11ax standard

provides wireless internet access for the ViewBoard.

Dual-band support

operates on 2.4 GHz and 5 GHz frequency bands.

Low power draw

consumes less than 5 W from a 5 V DC supply.

Operating range

rated for 0 to 40 °C and 10% to 90% non-condensing humidity.

Storage range

stores at -20 to 60 °C with 10% to 90% non-condensing humidity.

Lightweight module

weighs 85 g net.

Specifications

General
Compatibility	ViewBoard interactive displays
Key Features	802.11ax, dual-band 2.4 GHz and 5 GHz, 5 V DC, under 5 W, 0 to 40 °C operation, -20 to 60 °C storage
Model	VB-WIFI-004
Type	Wi-Fi Module

Performance
Storage Conditions	-20 to 60 °C, 10% to 90% RH (non-condensing)

Connectivity
Frequency Band	2.4 GHz / 5 GHz
Input Voltage	5 V DC
Wi-Fi	802.11ax, dual-band 2.4 GHz / 5 GHz

Power
Power Consumption	Less than 5 W

Physical
Operating Humidity	10% to 90% RH (non-condensing)
Operating Temperature	0 to 40 °C
Weight	85 g

QR code to ViewSonic ViewBoard 802.11ax Wireless Module – VB-WIFI-004 on procure.ae

Get our best price for this product

Scan to open it on procure.ae, or contact the Procure sales team:
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page

This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.

Specifications are provided by the manufacturer and may change without notice.

Pricing is quote-based. Contact Procure for current pricing and availability.

Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
