ViewSonicMeeting Room SolutionsSKU TRS10
ViewSonic TeamJoin Microsoft Teams Room Kit – TRS10
The ViewSonic TeamJoin TRS10 is a Microsoft Teams Rooms kit with a Windows 11 IoT computing engine and a 10.1-inch touch console. The bundle is designed for meeting spaces of varied sizes, with Teams software pre-installed and HDMI, USB and Ethernet connectivity. The console has 10-point capacitive touch and a motion sensor. Procure.ae supplies the TRS10 in the UAE.

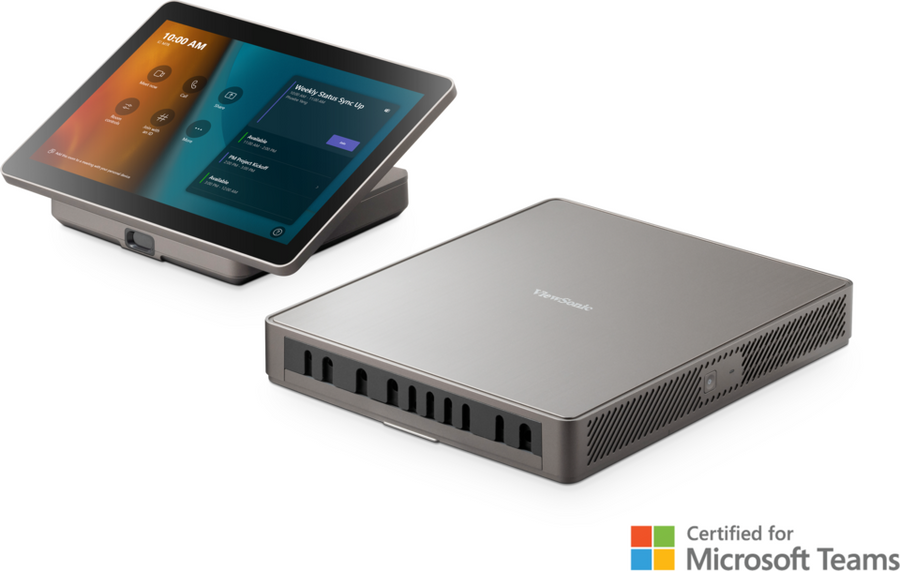

The TRS10 bundle combines the MPC310-W31-TU computing engine with the MRC1010-TN touch console. The engine runs an Intel Core i3-1220P with 8 GB RAM and 128 GB storage under Windows 11 IoT Enterprise, and outputs video over HDMI at 4K 60 Hz. The 10.1-inch touch console has a 1920 x 1200 display at 300 cd/m² typical brightness, 72% NTSC colour gamut and 10-point capacitive touch with latency under 25 ms. A PIR motion sensor supports continuous operation even when the screen is off.
The supplied 5 m USB Type-C cable and 1.5 m HDMI cable link the computing engine and touch console, so the two units can be placed apart within a room. The bundle is designed for Microsoft Teams Rooms and ships with a VESA bracket for the computing engine. The TRS10 has no video bar. The TRS10-UB adds a 4K video bar system (UMB202) to this same bundle.
Screen Size
10.1 inch (touch console)
Resolution
1920 x 1200 (touch console)
Brightness
300 cd/m² (typical, touch console)
Touch Technology
PCAP
- Teams Rooms computing engine
- 10.1-inch touch console
- 4K HDMI output
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Teams Rooms computing engine
Intel Core i3-1220P with 8 GB RAM, 128 GB storage and Windows 11 IoT Enterprise.
02
10.1-inch touch console
A 1920 x 1200 display with 10-point capacitive touch and latency under 25 ms.
03
4K HDMI output
One HDMI out at 4K 60 Hz with CEC screen power control.
04
Motion sensor
A PIR sensor that supports 24/7 operation even when the screen is off.
05
HDMI ingest
One HDMI input on the console for BYOD presentations.
06
USB Type-C link
Carries DisplayPort input and USB downstream for HDMI and touch signals.
07
Cables included
1.5 m HDMI and 5 m USB Type-C cables, plus a VESA bracket.
08
Wired connectivity
Gigabit Ethernet and Bluetooth 5.3, with no Wi-Fi.
Specifications
28 specificationsGeneral
Key FeaturesMicrosoft Teams Rooms, 10.1-inch touch console, PIR motion sensor, HDMI ingest, 4K HDMI output, USB Type-C display and touch link
ModelTRS10
TypeMicrosoft Teams Rooms Kit
What's in the BoxComputing engine, touch console, VESA bracket, 1.5 m HDMI cable, 5 m USB Type-C cable
Display
BacklightELED
Brightness300 cd/m² (typical, touch console)
Color Gamut72% NTSC
Refresh Rate60 Hz
Resolution1920 x 1200 (touch console)
Screen Size10.1 inch (touch console)
Touch Accuracy±1 mm (middle), ≤2.5 mm (edge)
Touch Points10-point multi-touch
Touch Response Time< 25 ms
Touch TechnologyPCAP
Performance
Operating SystemWindows 11 IoT Enterprise (x64) on computing engine
ProcessorIntel Core i3-1220P (1.5 GHz, turbo 4.4 GHz)
RAM8 GB DDR4 SODIMM
Storage128 GB SATA
Connectivity
BluetoothBluetooth 5.3 (computing engine)
HDMI Outputs1 × 4K@60 Hz (computing engine)
Input Voltage100–240 V AC, 50/60 Hz (computing engine)
PortsComputing engine: USB 3.0 Type-A × 4, USB 3.0 Type-C × 1, RJ45 × 1, HDMI out × 1. Touch console: HDMI in × 1, USB 2.0 × 1, USB Type-C × 1, 3.5 mm audio out × 1
Wi-FiNone
Power
Power Consumption111.9 W maximum (computing engine); 18 W maximum (touch console)
Standby Power1.5 W (computing engine); ≤ 0.5 W (touch console)
Physical
DimensionsComputing engine 230 x 275.5 x 43 mm; touch console 245 x 160 x 98 mm (L x H x D)
VESA MountVESA bracket included (computing engine)
WeightComputing engine 3.70 kg; touch console 1.95 kg
Downloads
Manufacturer documents for the ViewSonic TeamJoin Microsoft Teams Room Kit – TRS10 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the TRS10 a complete Microsoft Teams Rooms system?
The TRS10 is a bundle of a computing engine and touch console for Microsoft Teams Rooms, which the manufacturer describes as a one-stop solution. The bundle contains no camera, so video calls need a separate camera, or the TRS10-UB model, which includes a 4K video bar.
Does the TRS10 need Wi-Fi?
No. The computing engine has no Wi-Fi, so the TRS10 connects through its RJ45 Ethernet port at 10/100/1000 Mbps. The computing engine includes Bluetooth 5.3 as well, but network access runs over the wired connection.
How large a room suits the TRS10?
The manufacturer states that the TRS10 adapts to meeting spaces of any size, but it does not publish a maximum room size. Check the display size and camera or microphone coverage for your room before ordering.
Can the touch console be wall mounted?
The manufacturer's specifications list a 10.1-inch console measuring 245 x 160 x 98 mm and weighing 1.95 kg, but they do not state a wall-mount kit for the console. The computing engine includes a VESA mounting bracket.
Does the touch console wake when someone enters the room?
Yes. The console has a PIR motion sensor that activates it from sleep mode once the room is entered, and the sensor supports continuous operation even when the screen is off.
