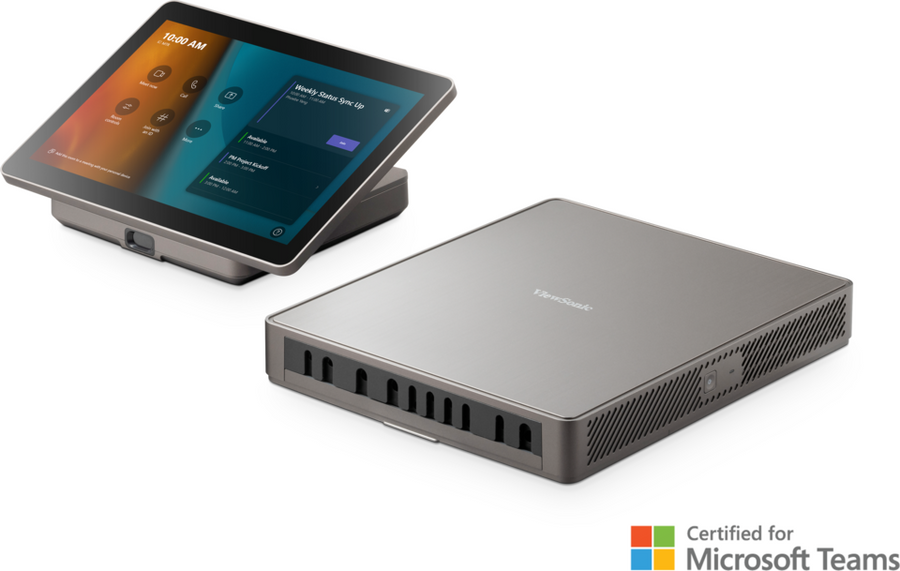

ViewSonic TeamJoin Microsoft Teams Room Kit – TRS10
The ViewSonic TeamJoin TRS10 is a Microsoft Teams Rooms kit with a Windows 11 IoT computing engine and a 10.1-inch touch console. The bundle is designed for meeting spaces of varied sizes, with Teams software pre-installed and HDMI, USB and Ethernet connectivity. The console has 10-point capacitive touch and a motion sensor. Procure.ae supplies the TRS10 in the UAE.
The TRS10 bundle combines the MPC310-W31-TU computing engine with the MRC1010-TN touch console. The engine runs an Intel Core i3-1220P with 8 GB RAM and 128 GB storage under Windows 11 IoT Enterprise, and outputs video over HDMI at 4K 60 Hz. The 10.1-inch touch console has a 1920 x 1200 display at 300 cd/m² typical brightness, 72% NTSC colour gamut and 10-point capacitive touch with latency under 25 ms. A PIR motion sensor supports continuous operation even when the screen is off.
The supplied 5 m USB Type-C cable and 1.5 m HDMI cable link the computing engine and touch console, so the two units can be placed apart within a room. The bundle is designed for Microsoft Teams Rooms and ships with a VESA bracket for the computing engine. The TRS10 has no video bar. The TRS10-UB adds a 4K video bar system (UMB202) to this same bundle.
Key features
Specifications
| Key Features | Microsoft Teams Rooms, 10.1-inch touch console, PIR motion sensor, HDMI ingest, 4K HDMI output, USB Type-C display and touch link |
| Model | TRS10 |
| Type | Microsoft Teams Rooms Kit |
| What's in the Box | Computing engine, touch console, VESA bracket, 1.5 m HDMI cable, 5 m USB Type-C cable |
| Backlight | ELED |
| Brightness | 300 cd/m² (typical, touch console) |
| Color Gamut | 72% NTSC |
| Refresh Rate | 60 Hz |
| Resolution | 1920 x 1200 (touch console) |
| Screen Size | 10.1 inch (touch console) |
| Touch Accuracy | ±1 mm (middle), ≤2.5 mm (edge) |
| Touch Points | 10-point multi-touch |
| Touch Response Time | < 25 ms |
| Touch Technology | PCAP |
| Operating System | Windows 11 IoT Enterprise (x64) on computing engine |
| Processor | Intel Core i3-1220P (1.5 GHz, turbo 4.4 GHz) |
| RAM | 8 GB DDR4 SODIMM |
| Storage | 128 GB SATA |
| Bluetooth | Bluetooth 5.3 (computing engine) |
| HDMI Outputs | 1 × 4K@60 Hz (computing engine) |
| Input Voltage | 100–240 V AC, 50/60 Hz (computing engine) |
| Ports | Computing engine: USB 3.0 Type-A × 4, USB 3.0 Type-C × 1, RJ45 × 1, HDMI out × 1. Touch console: HDMI in × 1, USB 2.0 × 1, USB Type-C × 1, 3.5 mm audio out × 1 |
| Wi-Fi | None |
| Power Consumption | 111.9 W maximum (computing engine); 18 W maximum (touch console) |
| Standby Power | 1.5 W (computing engine); ≤ 0.5 W (touch console) |
| Dimensions | Computing engine 230 x 275.5 x 43 mm; touch console 245 x 160 x 98 mm (L x H x D) |
| VESA Mount | VESA bracket included (computing engine) |
| Weight | Computing engine 3.70 kg; touch console 1.95 kg |
